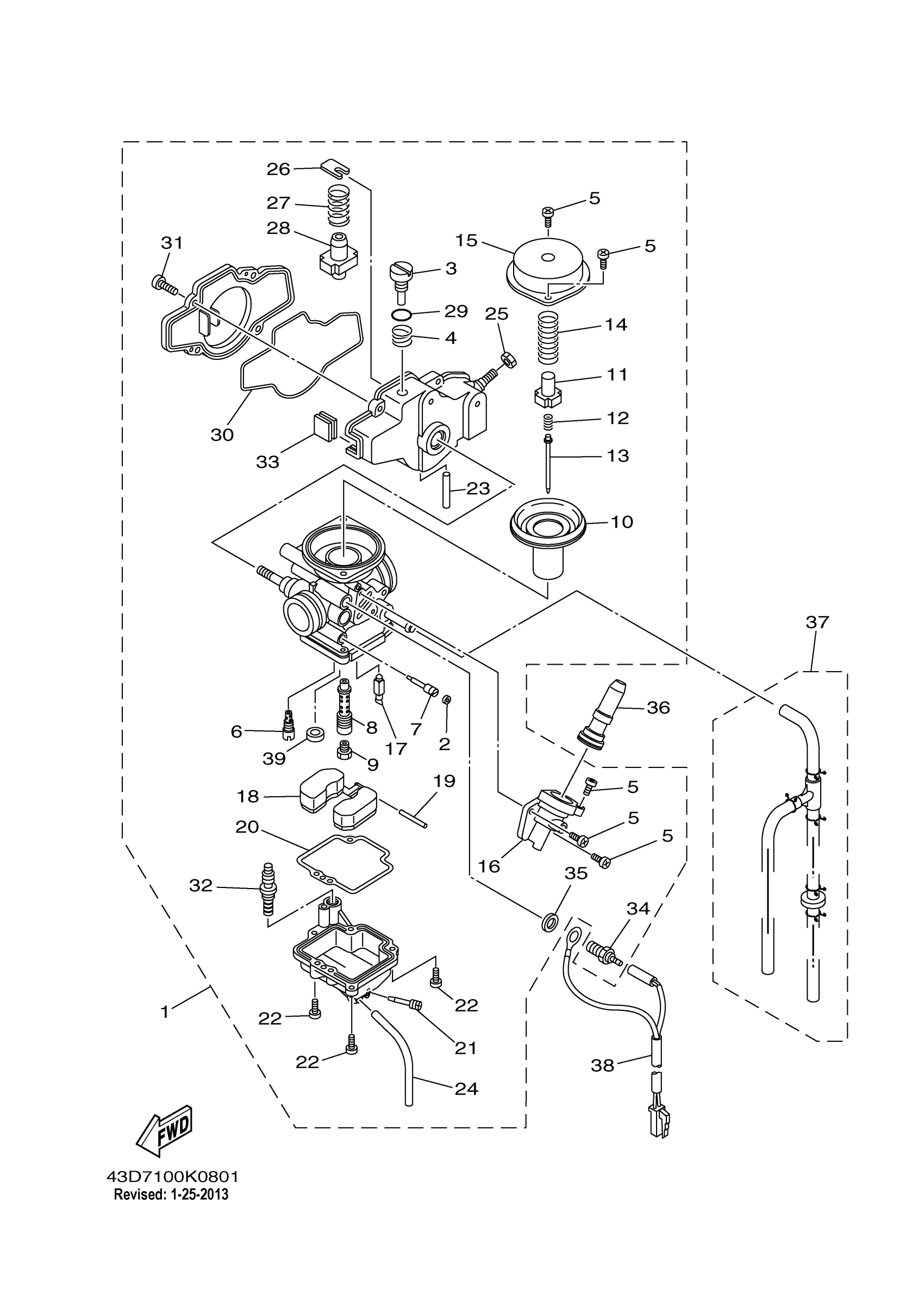

Yamaha YFM90RDW (RAPTOR 90) 43DD0 2013 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSY 1

43D-E4301-00-00

Unavailable

2

PLUG, MAIN NOZZLE

43D-E4345-00-00

Unavailable

3

SCREW, THROTTLE

43D-E4321-00-00

Unavailable

4

SPRING, THROTTLE STOP

43D-E4333-00-00

Unavailable

5

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

6

JET, PILOT (# 32)

43D-E4342-16-00

$15.49

7

PILOT SCREW SET

43D-E4347-00-00

Unavailable

8

NOZZLE, MAIN

43D-E4341-00-00

$79.99

9

JET, MAIN (#100)

288-E4343-50-00

Unavailable

10

DIAPHRAGM

5WB-E434A-00-00

Unavailable

11

SEAT, SPRING

5LB-14936-00-00

Unavailable

12

SPRING

5LB-14275-00-00

$4.78

13

NEEDLE

43D-E4336-00-00

Unavailable

14

SPRING

5WB-E4286-00-00

Unavailable

15

CAP, MIXING CHAMBER

43D-E439D-00-00

Unavailable

16

JET, STARTER (# 0)

43D-E4344-00-00

Unavailable

17

VALVE, NEEDLE

43D-E4392-00-00

Unavailable

18

FLOAT

5WB-E4385-00-00

Unavailable

19

PIN, FLOAT

5LB-E4386-00-00

Unavailable

20

GASKET, FLOAT CHAMB

5WB-E4384-00-00

Unavailable

21

DRAIN SCREW ASSY

43D-E4306-00-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

23

PIPE, DRAIN 2

43D-E443G-00-00

Unavailable

24

PIPE

4FP-E4349-00-00

Unavailable

25

NUT

5AV-E4594-00-00

Unavailable

26

PLATE

43D-E4346-00-00

Unavailable

27

SPRING, THROTTLE STOP

43D-E4333-10-00

Unavailable

28

ADJUSTER,THROTTLE

43D-E4321-10-00

Unavailable

29

O-RING

43D-E4397-10-00

Unavailable

30

GASKET

43D-E4398-00-00

Unavailable

31

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

32

ACCELERATOR PUMP COMP.

43D-E4304-00-00

Unavailable

33

PLUG

43D-E432A-00-00

Unavailable

34

HEATER ASSY

5FU-83790-20-00

Unavailable

35

WASHER, PLATE

90201-08016-00

Unavailable

36

MANUAL STARTER COMP. 1

43D-E4307-00-00

Unavailable

37

TUBE BREATHER COMP.

43D-WE431-00-00

Unavailable

38

WIRE, LEAD

43D-H331N-01-00

Unavailable

39

PLUG

50M-14355-01-00

Unavailable
