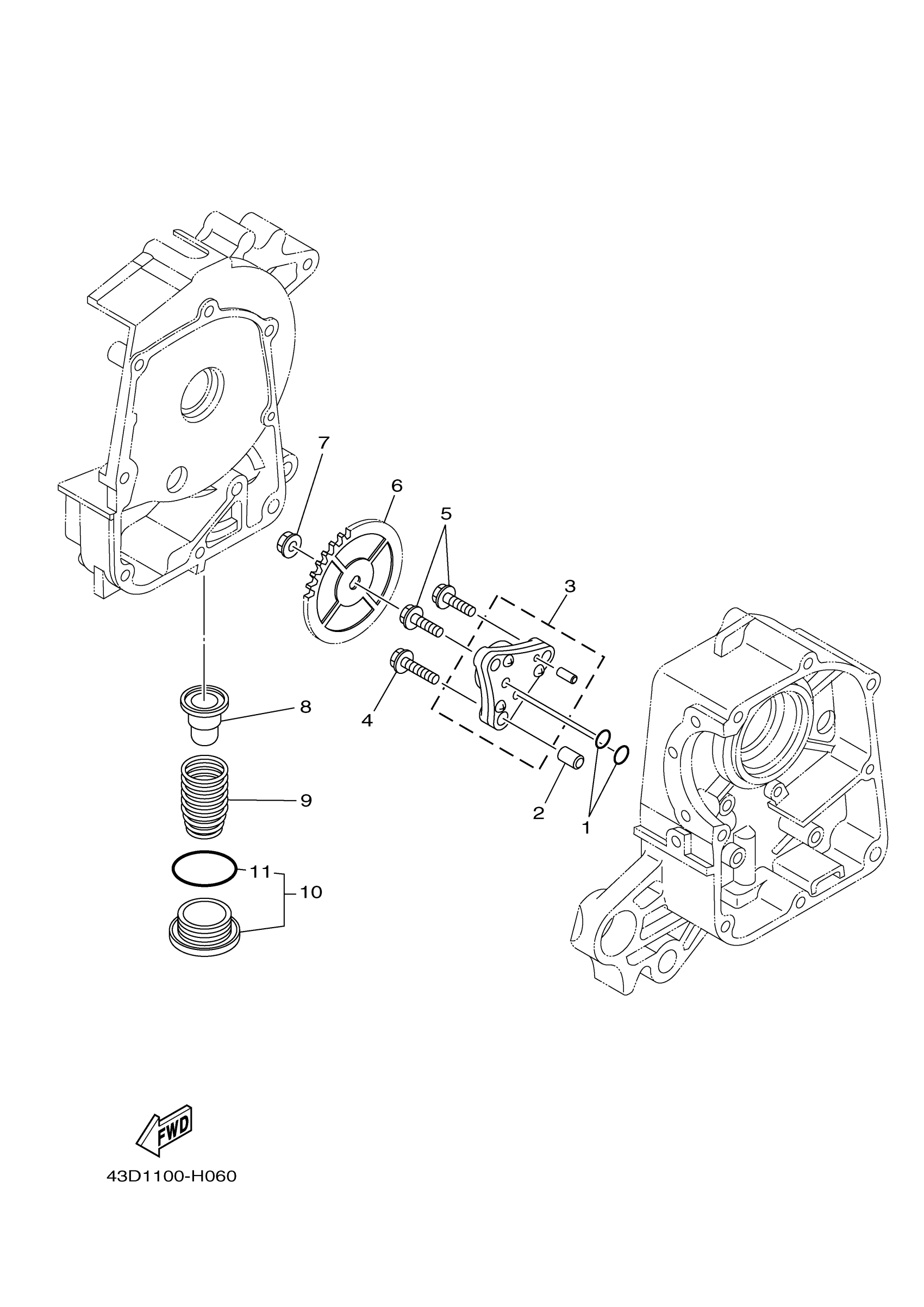

Yamaha YFM90RBW (RAPTOR 90) 43DA0 2012 OIL PUMP Diagram

#

Description
Price

1

O-RING

43D-E119A-00-00

$1.92

2

PIN, DOWEL

43D-E5181-00-00

$1.94

3

OIL PUMP ASSY

43D-E3300-00-00

Unavailable

4

. BOLT, FLANGE

95027-06020-00

$0.93

5

BOLT, FLANGE

95022-06020-00

$3.11

6

GEAR, PUMP DRIVEN

43D-E3325-00-00

$9.48

7

NUT

43D-E4358-00-00

$1.59

8

STRAINER, OIL

43D-E3411-00-00

Unavailable

9

SPRING

43D-E3469-00-00

$3.02

10

DRAIN PLUG SET

43D-E5300-00-00

Unavailable

11

O-RING

1SC-E3473-00-00

$7.65
