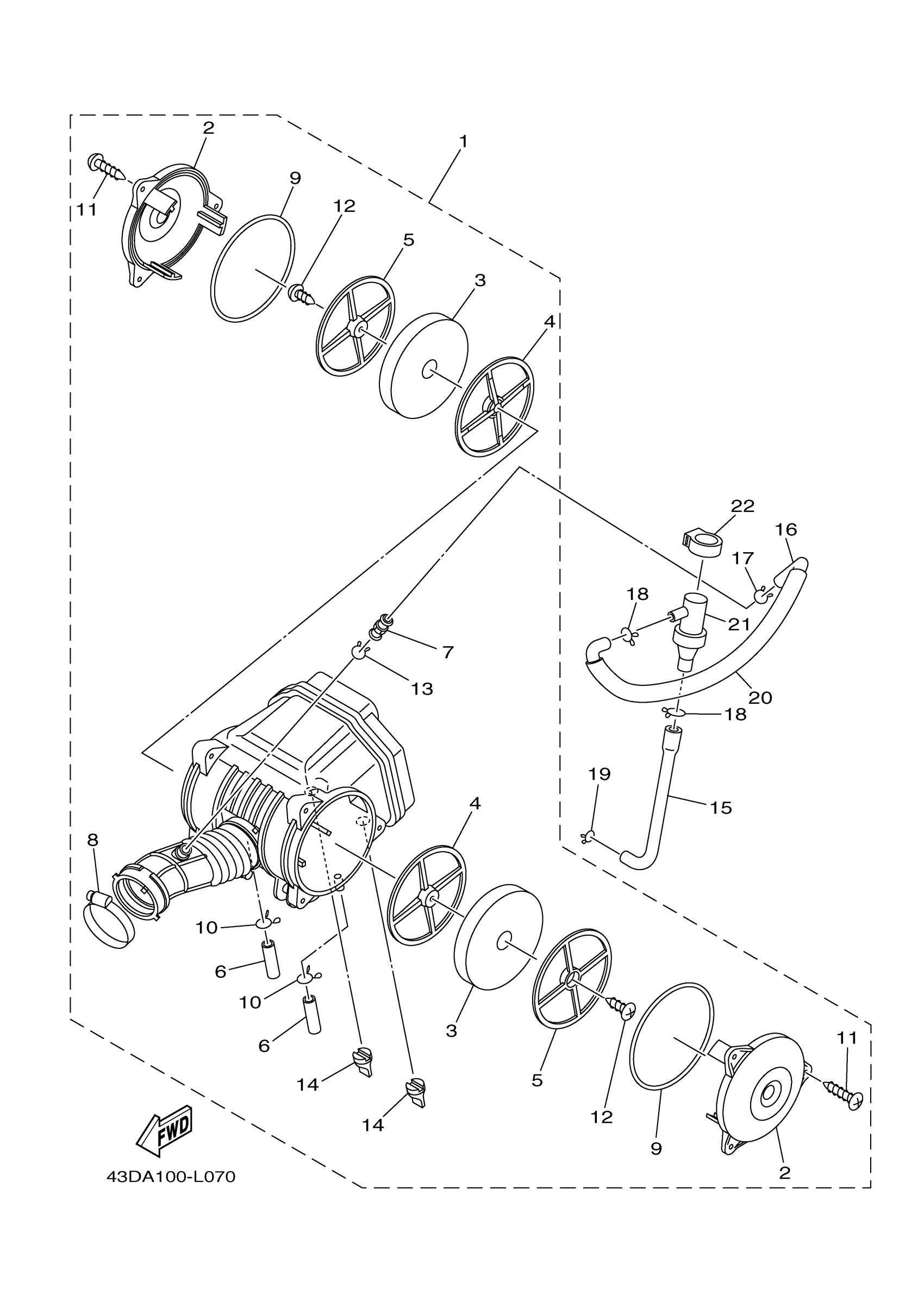

Yamaha YFM90RBW (RAPTOR 90) 43DA0 2012 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

43D-E4410-10-00

Unavailable

2

COVER, AIR CLEANER

43D-E449E-10-00

$14.49

3

ELEMENT, AIR CLEANER

43D-E4451-00-00

$7.99

4

PLATE,ELEMENT FITTING

43D-E4468-10-00

Unavailable

5

. PLATE ELEMENT SET 2

43D-E440H-00-00

Unavailable

6

PIPE, DRAIN

43D-E443E-10-00

Unavailable

7

PIPE

43D-E4419-00-00

Unavailable

8

. BAND

43D-E4455-00-00

Unavailable

9

SEAL RING

43D-E41A1-00-00

$6.99

10

CLIP

43D-E4137-10-00

$2.29

11

SCREW, ROUND TAPPING

90160-05005-00

Unavailable

12

SCREW

43D-E5793-00-00

Unavailable

13

CLIP

43D-E4159-00-00

Unavailable

14

VALVE, DRAIN

43D-E4222-00-00

Unavailable

15

PIPE

43D-E4148-00-00

Unavailable

16

PIPE

43D-E4149-00-00

Unavailable

17

CLIP

43D-E4159-00-00

Unavailable

18

CLIP 1

43D-E449C-00-00

Unavailable

19

CLIP 2

43D-E449D-00-00

Unavailable

20

PROTECTOR

43D-E442F-00-00

Unavailable

21

PIPE, BREATHER 3

43D-E1126-00-00

Unavailable

22

CAP

43D-E4169-00-00

Unavailable
