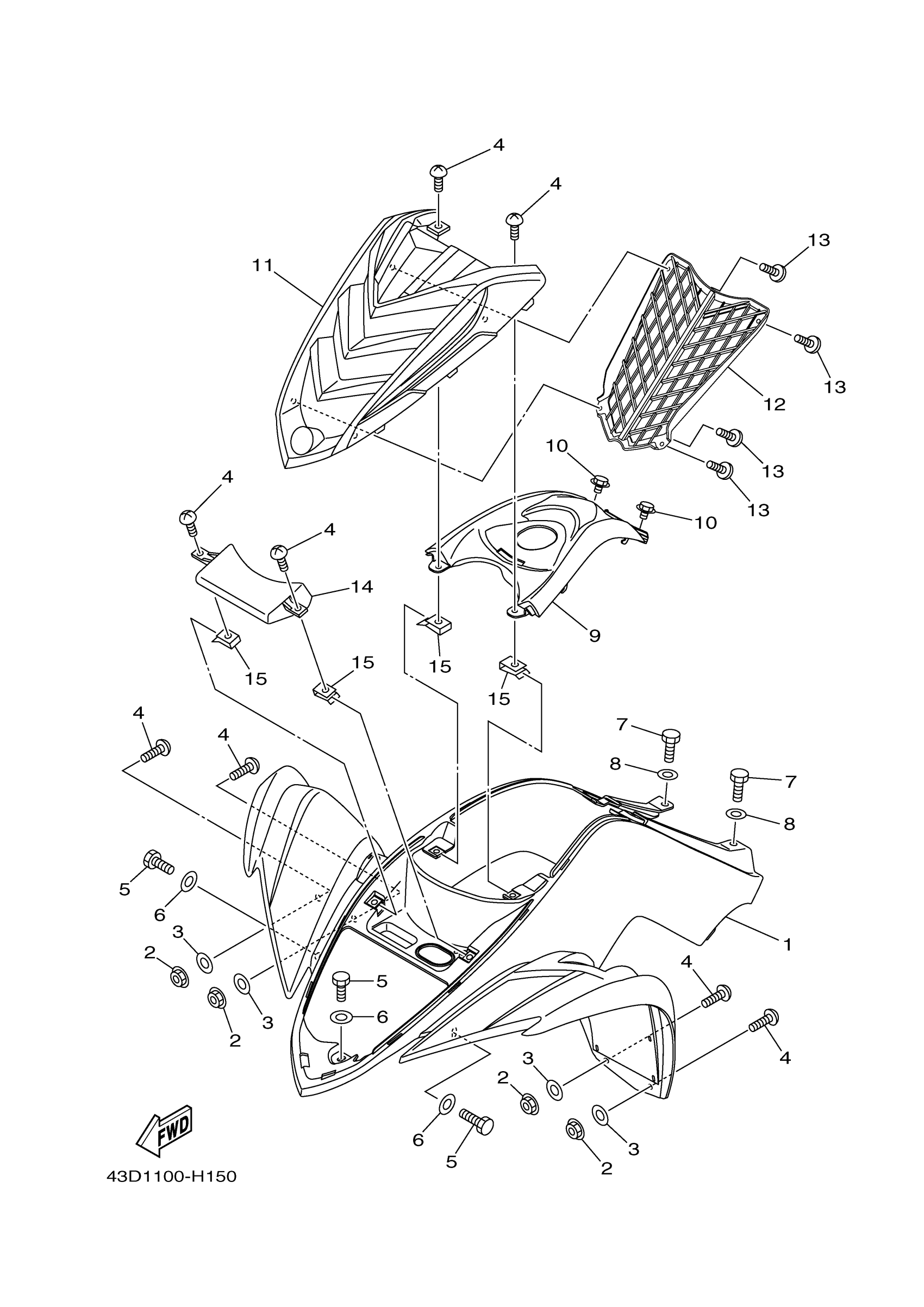

Yamaha YFM90RBW (RAPTOR 90) 43DA0 2012 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY (DEEP PURPLISH BLUE SOLID E)

43D-F1500-00-00

$229.08

2

NUT 2

43D-F1536-00-00

$3.64

3

WASHER 4

43D-F2246-00-00

$6.36

4

SCREW

43D-F4444-00-00

$5.55

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER(6TA)

92907-06600-00

$0.73

9

COVER, TOP

43D-F171A-00-00

Unavailable

10

PLUG, DRAIN

43D-F3119-00-00

$3.36

11

FENDER, FRONT 2

43D-F1556-00-00

Unavailable

12

COVER, RADIATOR

43D-E2467-00-00

$13.52

13

SCREW

43D-F4453-00-00

$3.03

14

COVER

43D-F4474-00-00

Unavailable

15

NUT 2

43D-F3834-00-00

$4.82
