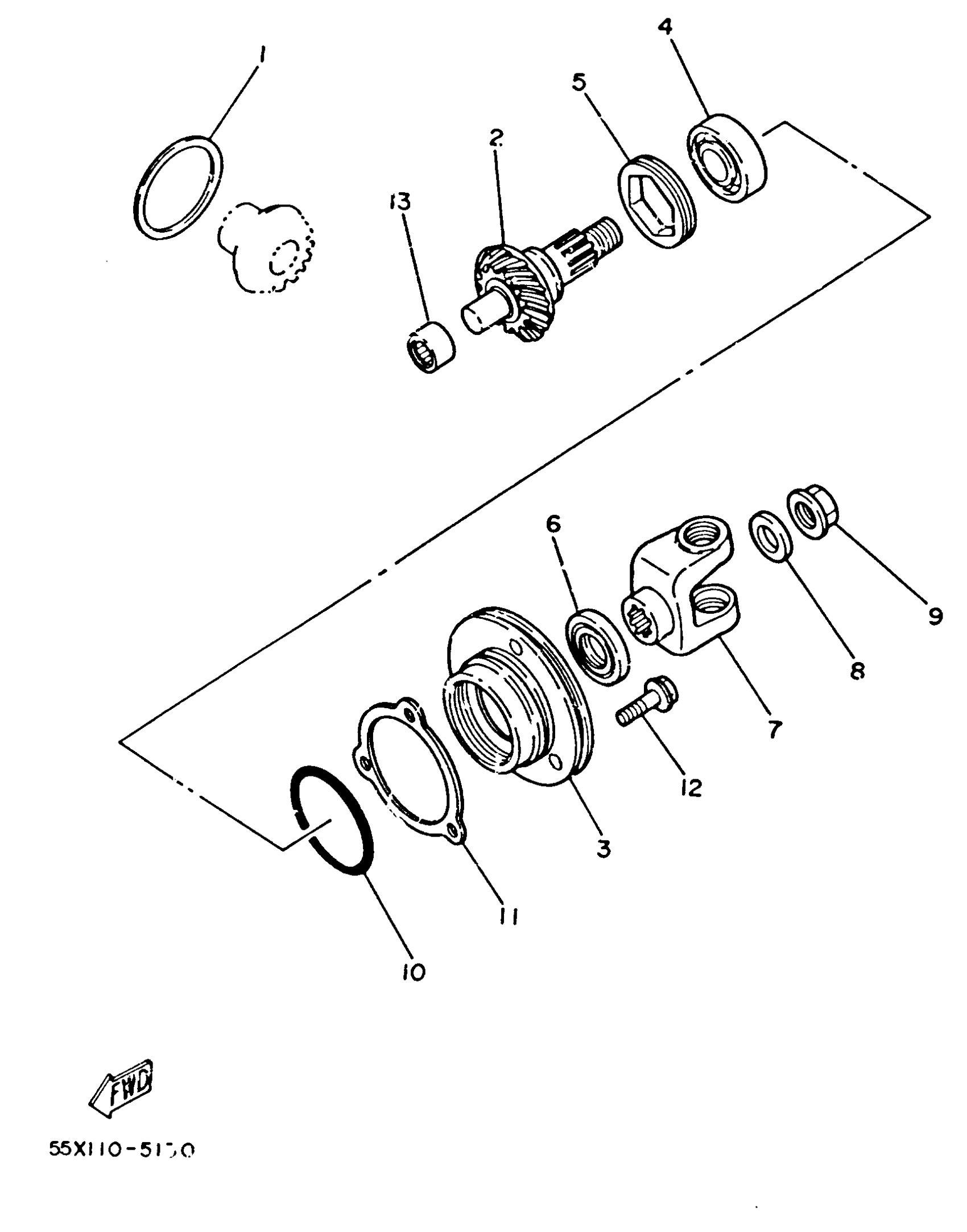

Yamaha YFM80U (BADGER) 1988 MIDDLE DRIVE GEAR Diagram
#
Description
Price
1
SHIM, THRUST
22F-17537-00-00
Unavailable
2
MIDDLE DRIVEN GEAR COMP
2HX-17508-00-00
Unavailable
3
HOUSING, BEARING
22F-17551-00-00
Unavailable
5
NUT
90179-42480-00
Unavailable
6
OIL SEAL
93101-24110-00
Unavailable
7
YOKE, JOINT
22F-17556-01-00
Unavailable
11
SHIM PINION (0.15)
22F-17531-00-15
Unavailable
11
SHIM PINION (0.50)
22F-17531-00-50
Unavailable
11
SHIM, PINION (0.30T)
22F-17531-00-30
Unavailable
