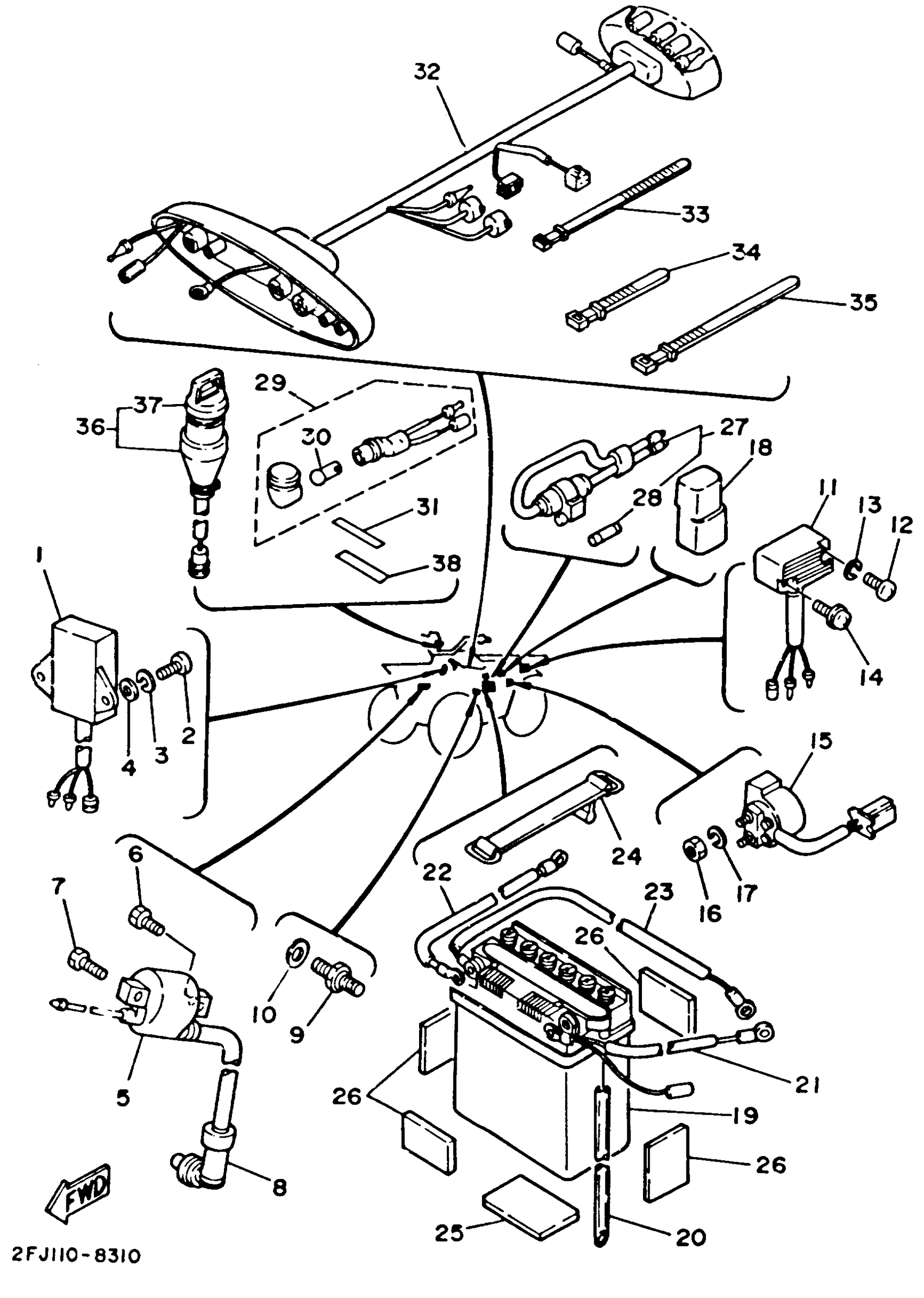

Yamaha YFM80U (BADGER) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

55X-85540-M2-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

SCREW (5G3)

90153-06034-00

$7.49

8

PLUG CAP ASSY

4BP-82370-01-00

$35.99

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

10

GASKET (5R6)

90430-10171-00

$3.18

11

RECTIFIER & REGULATOR ASSY

55X-81960-90-00

Unavailable

12

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

SCREW, WITH WASHER

90159-05024-00

Unavailable

15

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

16

NUT(650)

95380-06700-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

19

BAT 12N7-3B YU

12N-73B00-00-00

Unavailable

20

PIPE, BREATHER

3L5-82112-00-00

Unavailable

21

WIRE, PLUS LEAD

55X-82115-01-00

Unavailable

22

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

23

WIRE, MINUS LEAD

3GB-82116-00-00

Unavailable

24

BAND, BATTERY

4J2-82131-01-00

Unavailable

25

SEAT, BATTERY

55X-82122-00-00

Unavailable

26

DAMPER 1

1UY-21638-00-00

Unavailable

27

FUSE HOLDER ASSY

29U-82150-00-00

Unavailable

28

FUSE (10A)

1E6-82151-00-00

Unavailable

29

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

30

BULB (12V-3.4W)

123-83516-21-00

Unavailable

31

LABEL

24W-83585-20-00

Unavailable

32

WIRE HARNESS ASSY

2FJ-82590-10-00

Unavailable

33

BAND, SWITCH CORD

437-83936-11-00

Unavailable

34

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

35

BAND, SWITCH CORD

437-83936-01-00

Unavailable

36

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

37

CAP, KEY

24W-82579-00-00

Unavailable

38

LABEL

29U-83585-10-00

Unavailable
