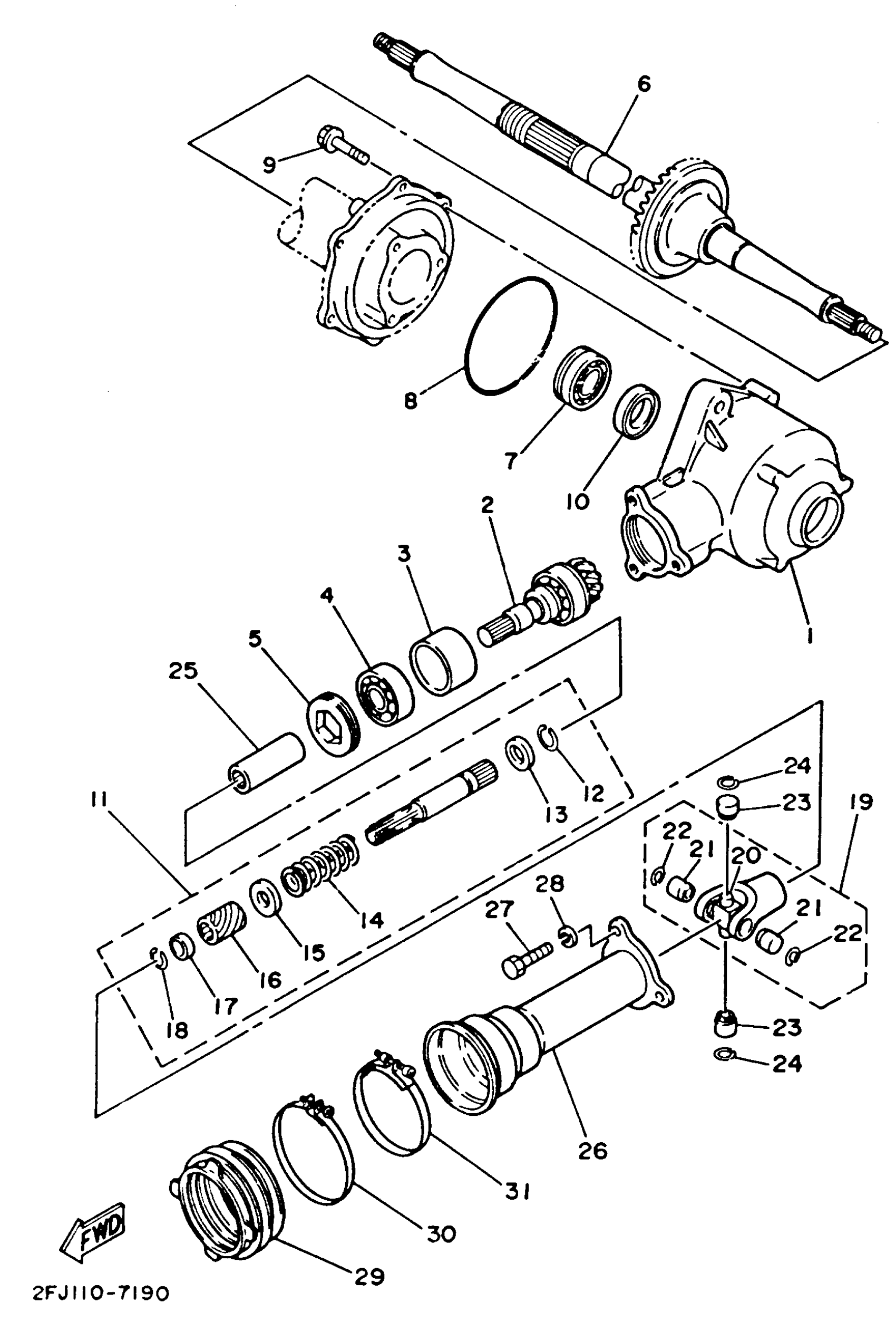

Yamaha YFM80U (BADGER) 1988 DRIVE SHAFT Diagram

#

Description

Price

1

HOUSING, drive shaft

55X-46151-00-00

Unavailable

2

DRIVE PINION COMP.

2HX-46120-00-00

Unavailable

3

SPACER

90560-40221-00

Unavailable

4

BEARING(4HM)

93306-30317-00

$39.99

5

NUT

90179-50481-00

Unavailable

6

RING GEAR COMP. (55X-46110-02)

55X-46110-03-00

Unavailable

7

BEARING

93306-00511-00

Unavailable

8

O-RING

93211-066A9-00

$13.49

9

BOLT, FLANGE

95817-06016-00

$2.75

10

OIL SEAL(36R)

93102-25311-00

Unavailable

11

SHAFT DRIVE ASSEMBLY.

55X-46171-00-00

Unavailable

12

CIRCLIP(18U)

93440-17138-00

Unavailable

13

RETAINER, SPRING

15L-18473-00-00

Unavailable

14

. SPRING, COMPRESSION

90501-603A7-00

Unavailable

15

WASHER, PLATE (22F)

90201-146F9-00

$7.49

16

. SCREW PUSH

22F-16341-01-00

Unavailable

17

. SPACER

22F-11485-00-00

Unavailable

18

. CIRCLIP, OUTER

93440-14124-00

Unavailable

19

CROSS JOINT

22F-46180-01-00

Unavailable

20

. SPIDER

22F-46187-00-00

Unavailable

21

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

22

CIRCLIP(24H)

99009-17500-00

Unavailable

23

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

24

CIRCLIP(24H)

99009-17500-00

Unavailable

25

COUPLING, GEAR

22F-46123-01-00

Unavailable

26

HOUSING, BEARING

55X-17551-00-00

Unavailable

27

BOLT, HEXAGON (3L6)

90101-08461-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

BOOT, RUBBER

55X-22189-00-00

Unavailable

30

CLAMP, HOSE(59V)

90460-85277-00

Unavailable

31

HOSE CLAMP ASSY

90450-75002-00

Unavailable
