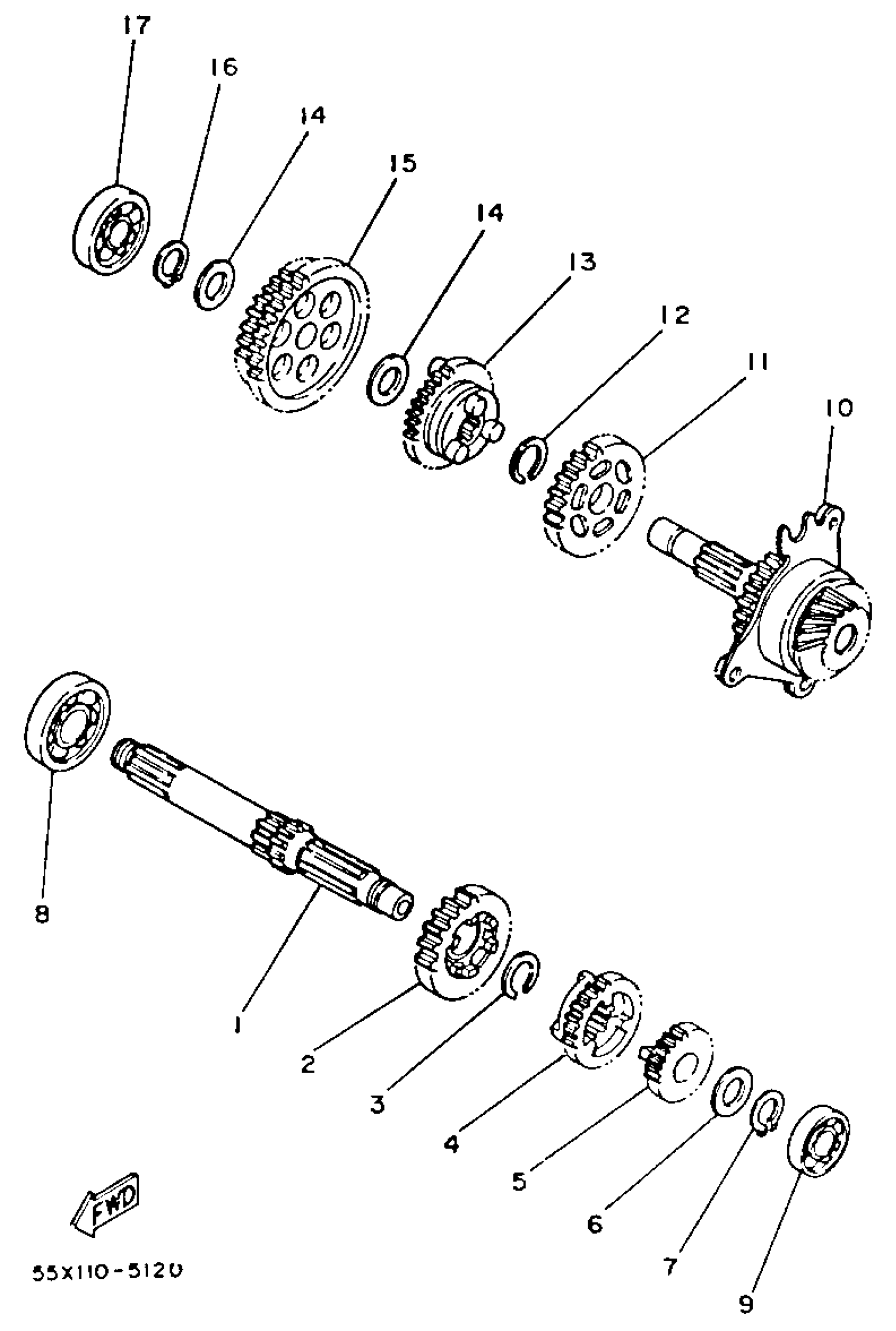

Yamaha YFM80T (BADGER) 1987 TRANSMISSION Diagram
#
Description
Price
1
AXLE, MAIN (29F-17411-00-00)
29F-17411-01-00
Unavailable
2
GEAR, 4TH PINION
55X-17141-00-00
Unavailable
4
GEAR, 3RD PINION (22T)
55X-17131-00-00
Unavailable
5
GEAR, 2ND PINION
55X-17121-00-00
Unavailable
6
WASHER, PLATE (55X)
90201-132G6-00
Unavailable
10
DRIVE AXLE ASS''Y
55X-17402-00-00
Unavailable
11
GEAR, 3RD WHEEL (31T)
55X-17231-00-00
Unavailable
13
GEAR, 4TH WHEEL (27T)
55X-17241-00-00
Unavailable
15
GEAR, 1st wheel
29F-17211-00-00
Unavailable
16
CIRCLIP(10Y)
99009-12400-00
Unavailable
17
BRG.
93306-30101-00
Unavailable
