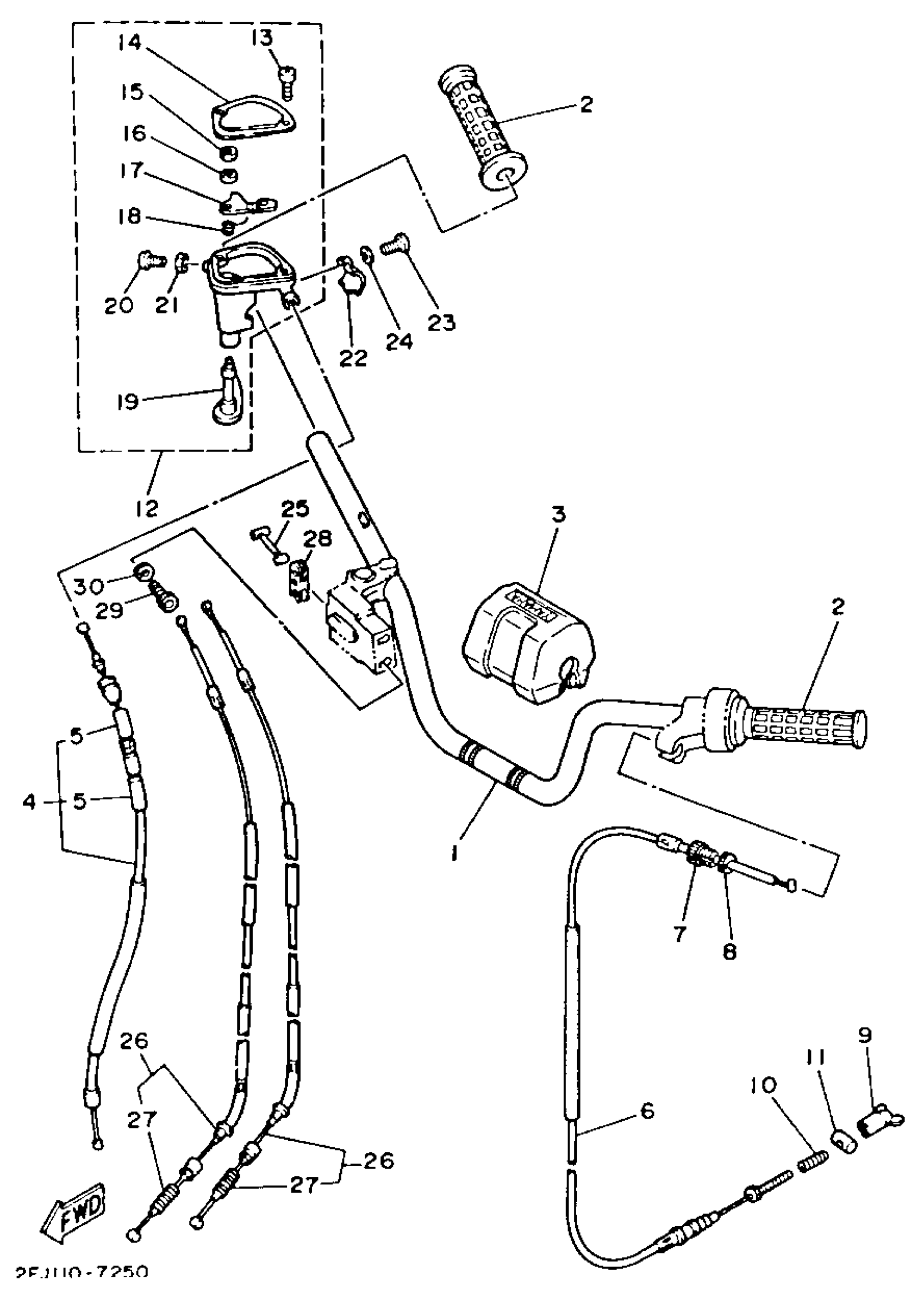

Yamaha YFM80T (BADGER) 1987 HANDLEBAR - CABLE Diagram
#
Description
Price
1
HANDLEBAR
87A-23811-00-00
Unavailable
3
PROTECTOR, HANDLEBAR
55X-26124-00-00
Unavailable
5
. CAP, RUBBER
3X3-26329-00-00
Unavailable
6
CABLE, BRAKE
55X-26341-00-00
Unavailable
12
THROTTLE LEVER ASSEMBLY
2FJ-26250-00-00
Unavailable
14
. CAP, GEAR
21V-2628F-00-00
Unavailable
16
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
17
. ARM, throttle
55X-2625H-01-00
Unavailable
18
. SPRING, TORSION
90508-10597-00
Unavailable
19
LEVER, THROTTLE
55X-2625G-00-00
Unavailable
20
. SCREW, PAN HEAD 55X
90157-05075-00
Unavailable
21
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
22
H0LDER, LEVER L0WER 1
38V-82913-00-00
Unavailable
23
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
CABLE, brake 4
2FJ-26373-00-00
Unavailable
26
CABLE, brake
2FJ-26361-00-00
Unavailable
27
SPRING (2N3)
90501-08511-00
Unavailable
28
JOINT, CABLE
52H-26347-01-00
Unavailable
29
BOLT(2FJ)
90123-08106-00
Unavailable
30
NUT
90179-08537-00
Unavailable
