Description

Price

1

FUEL TANK (55X-24110-00-00)

2FJ-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L1500)

90445-090F6-00

$31.99

4

GROMMET (4V1)

90480-18290-00

$8.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER PLATE 137241870000

90201-06072-00

$9.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GROMMET(38W)

90480-01400-00

$13.49

10

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

11

O-RING

4X8-24534-00-00

$13.49

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

O-RING

4X8-24512-00-00

$8.99

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

SCREW 256241430000

90149-06011-00

$5.60

16

HOSE (L200)

90445-10752-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

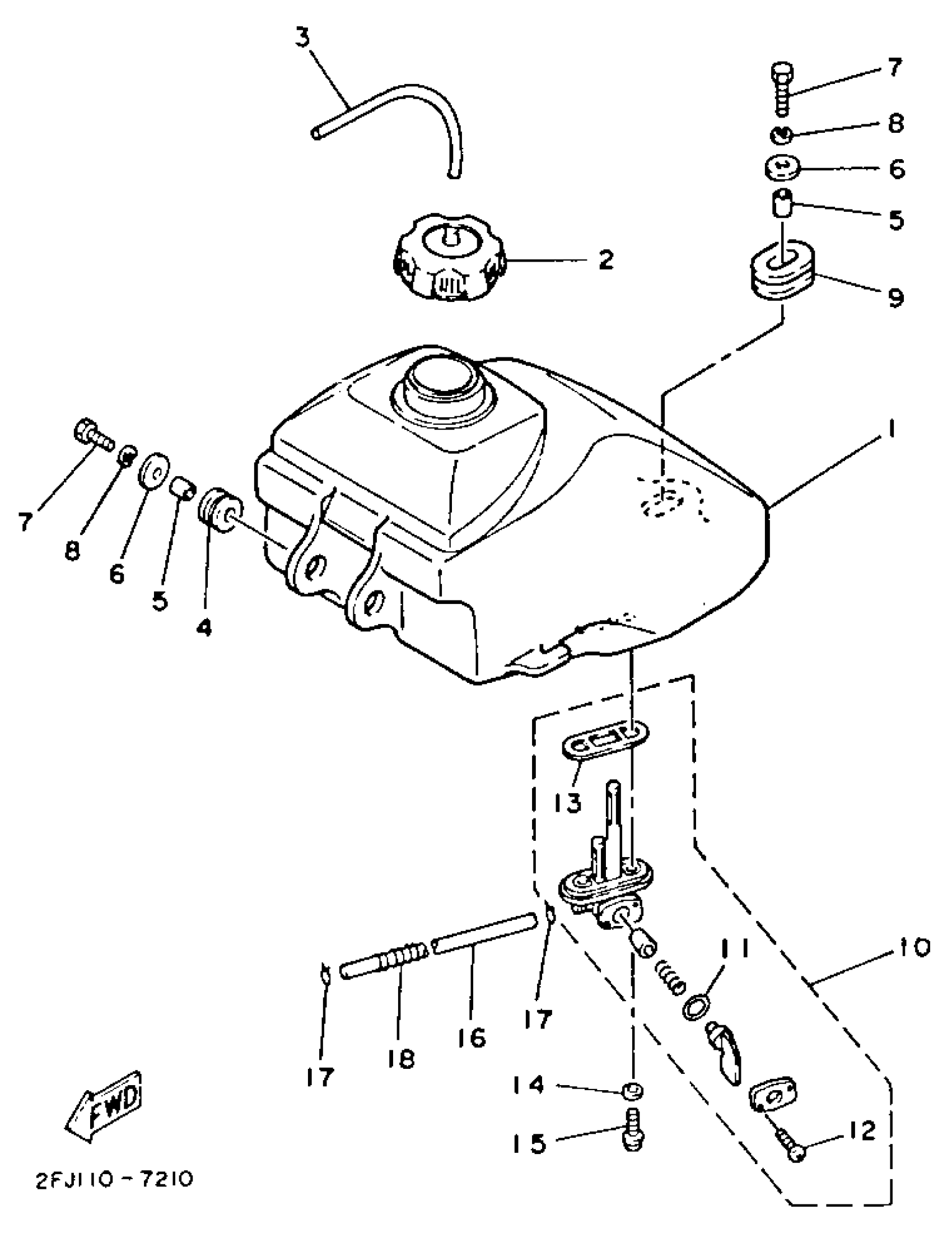

Yamaha YFM80T (BADGER) 1987 FUEL TANK Diagram

FUEL TANK (55X-24110-00-00)

CAP ASSY

HOSE (L1500)

GROMMET (4V1)

COLLAR (1T2)

WASHER PLATE 137241870000

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L200)

CLIP

SPRING, COMPRESSION (1J7)
