1986 Yamaha Badger (YFM80S) Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1986 Yamaha Badger (YFM80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

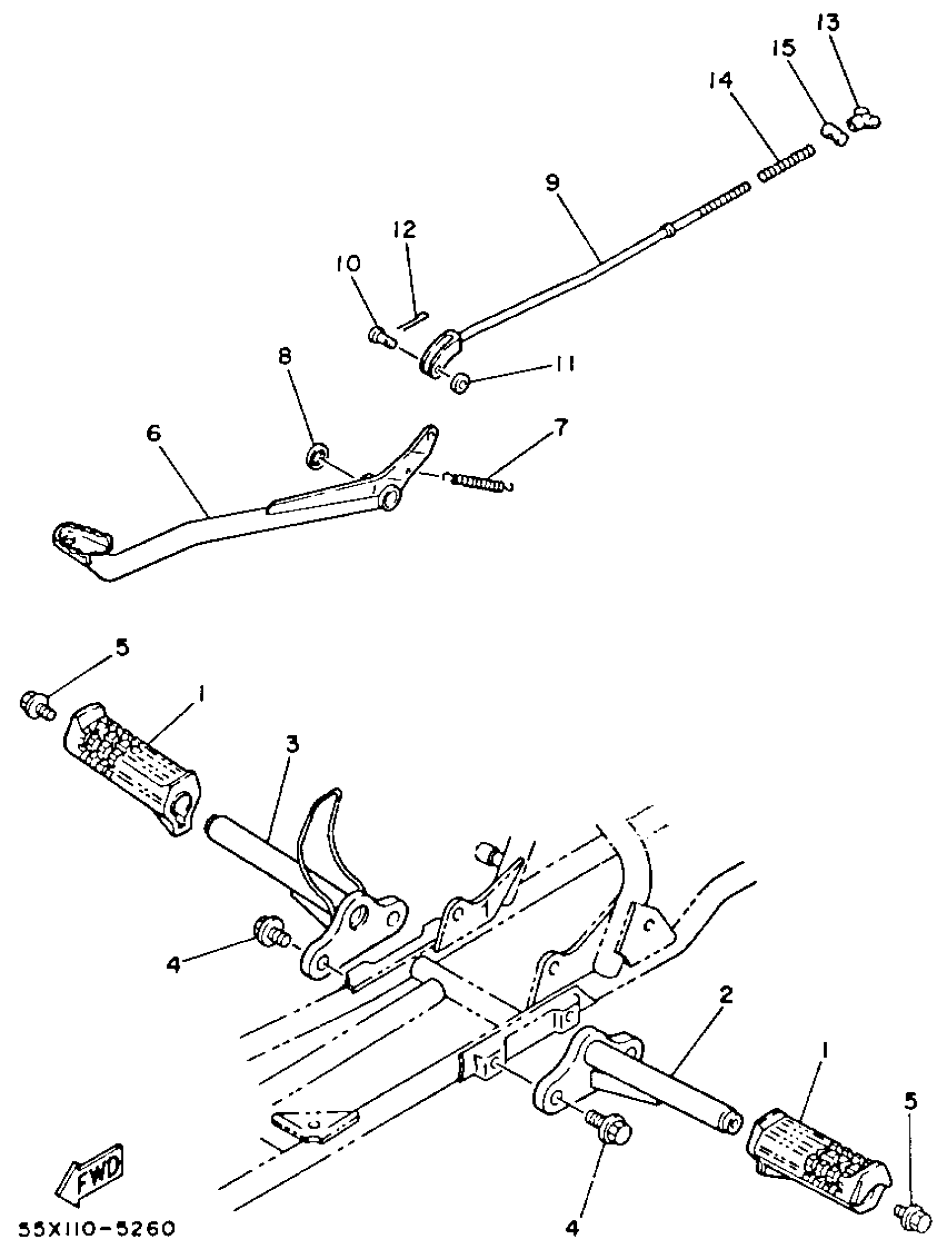

1986 Yamaha Badger (YFM80S) Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FOOTREST

55X-27413-00-00

1

$36.19

In stock

2

FOOTREST 1

55X-27411-01-00

1
Out of stock

3

FOOTREST 2

55X-27421-01-00

1
Out of stock

4

BOLT, FLANGE

95817-12020-00

—

$7.57

In stock

5

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

6

PEDAL, brake

55X-27211-00-00

1
Out of stock

7

SPRING, TENSION (29U)

90506-16318-00

1
Out of stock

8

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

9

ROD, BRAKE

55X-27231-01-00

1
Out of stock

10

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

PIN, COTTER

91490-20025-00

1

$1.31

In stock

13

NUT, AJUSTING

20E-26343-00-00

1

$22.28

In stock

14

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

15

PIN 1562723700

90249-12008-00

1

$4.70

In stock
