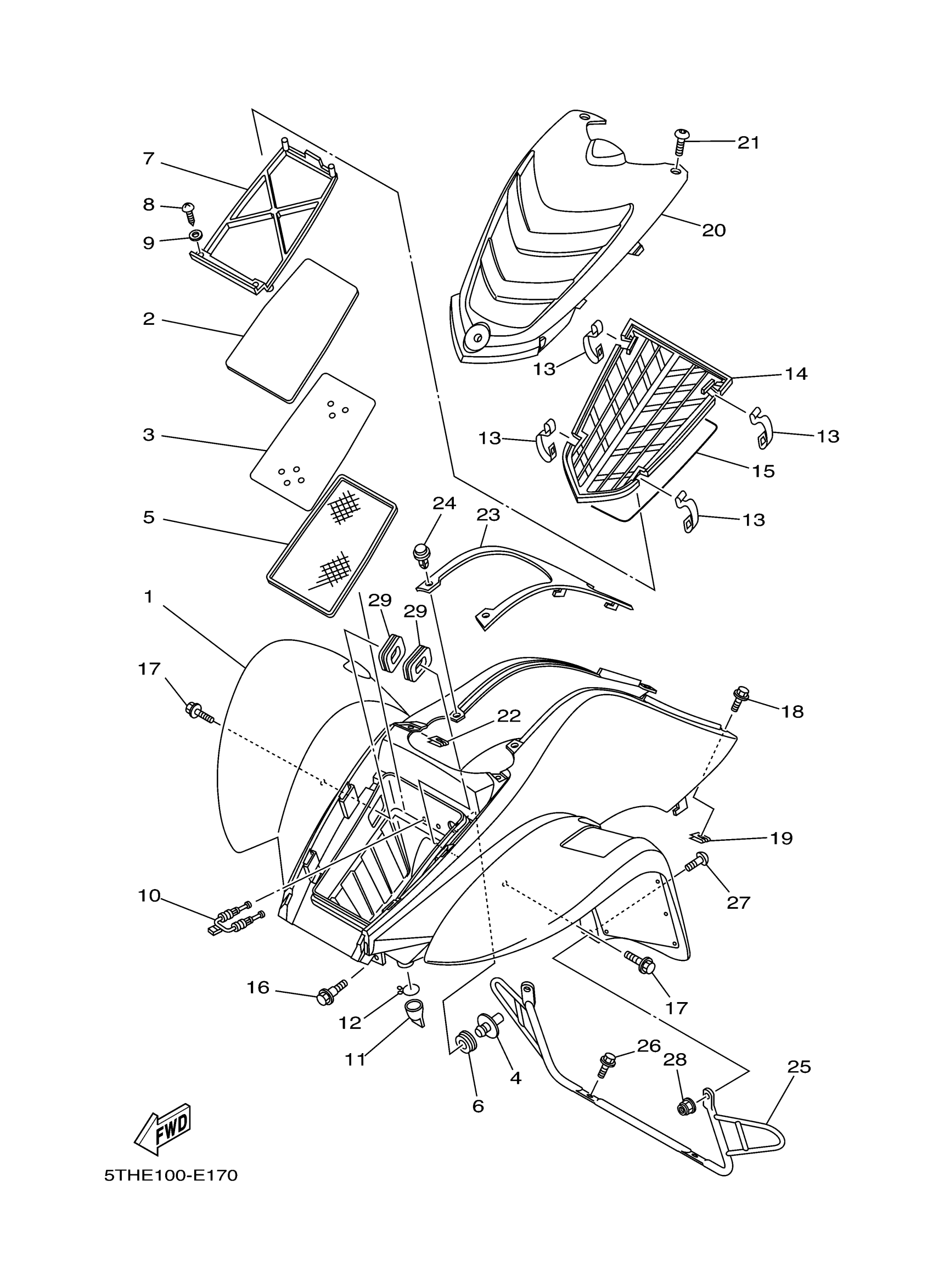

Yamaha YFM80RXL (RAPTOR 80) 5THL0 2008 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5TH-W2151-01-00
Unavailable
1
FRONT FENDER COMP. (PASTEL DARK GRAY)
5TH-W2151-31-00
Unavailable
3
PLATE
5TH-14477-00-00
Unavailable
4
PIPE
2D3-14419-00-00
Unavailable
5
PLATE, ELEMENT
55X-14472-01-00
Unavailable
7
GUIDE
55X-14458-00-00
Unavailable
8
SCREW, TAPPING
97780-40116-00
Unavailable
10
HOOK
55X-14436-00-00
Unavailable
14
CAP, CLEANER CASE 1
5TH-14412-00-00
Unavailable
15
SEAL
1VJ-14462-00-00
Unavailable
16
BOLT
90109-06172-00
Unavailable
17
BOLT, WITH WASHER
90119-06137-00
Unavailable
18
BOLT, WITH WASHER
90119-05024-00
Unavailable
19
NUT, SPRING
90183-050A8-00
Unavailable
20
FENDER, FRONT 2 (PASTEL DARK GRAY)
5TH-21556-30-00
Unavailable
20
FENDER, FRONT 2
5TH-21556-40-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
22
NUT, SPRING
90183-050A8-00
Unavailable
23
COVER, TOP (YAMAHA BLACK)
5TH-2171A-10-00
Unavailable
24
RIVET
90269-06002-00
Unavailable
25
STAY, FENDER 1
5TH-21513-00-00
Unavailable
26
BOLT, FLANGE
95812-06010-00
Unavailable
27
SCREW, BINDING (8G6)
90154-05002-00
Unavailable
28
NUT, S/L FLANGE
95607-05200-00
Unavailable
29
DUCT
2HX-14437-01-00
Unavailable
