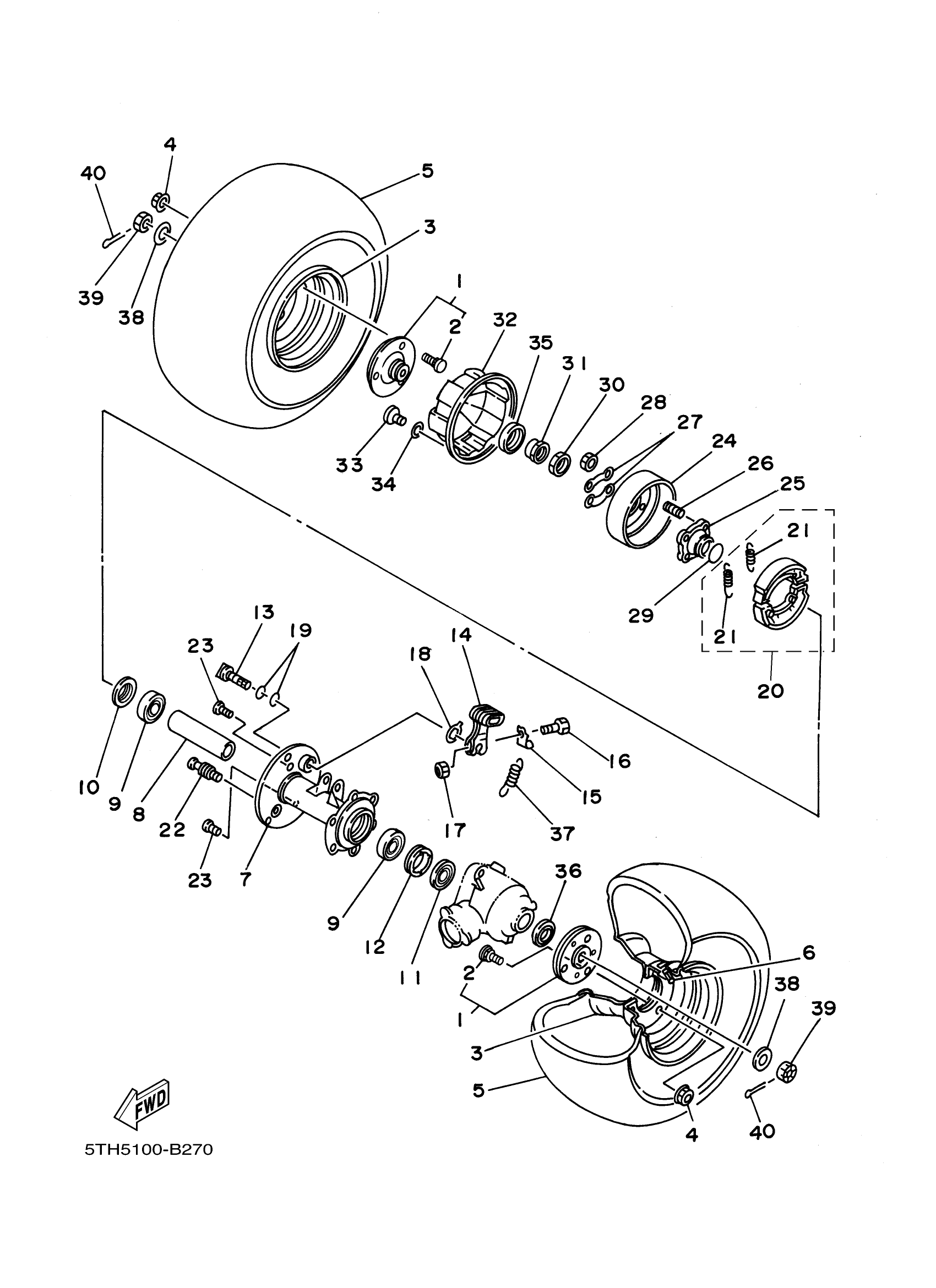

Yamaha YFM80RW (RAPTOR 80) 5THH 2007 REAR WHEEL Diagram
#
1
COLLAR, WHEEL
55X-25383-10-00
Unavailable
3
REAR WHEEL COMP.
2FJ-25390-00-35
Unavailable
7
HUB, REAR
3GB-25311-00-33
Unavailable
8
SPACER, BEARING
3GB-25317-00-00
Unavailable
12
NUT, AXLE
3GB-25382-00-00
Unavailable
15
HOOK, SPRING
55X-2533H-00-00
Unavailable
16
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
17
NUT(6TA)
95317-06600-00
Unavailable
18
PLATE, INDICATOR
23F-2533A-00-00
Unavailable
19
O-RING (26H)
93210-14579-00
Unavailable
20
BRAKE SHOE KIT
3FA-W253A-00-00
Unavailable
21
SPRING, TENSION
90506-15260-00
Unavailable
22
PIN, PIVOT
3GB-25326-00-00
Unavailable
23
BOLT, RIBBED NECK(3GB)
90114-10005-00
Unavailable
24
DRUM, BRAKE
3GB-2531E-00-00
Unavailable
25
BOSS
3GB-25343-10-00
Unavailable
26
BOLT, STUD(2XJ)
90116-08507-00
Unavailable
27
WASHER, LOCK
40E-25834-00-00
Unavailable
28
NUT(6TA)
95337-08600-00
Unavailable
29
O-RING(22F)
93210-26662-00
Unavailable
30
NUT
90170-28011-00
Unavailable
31
NUT
90179-28009-00
Unavailable
32
COVER 1
3GB-25715-00-00
Unavailable
33
SCREW, PAN
98517-06012-00
Unavailable
34
WASHER, SPRING
92907-06100-00
Unavailable
35
OIL SEAL (705)
93102-35191-00
Unavailable
36
COVER, HUB DUST
3GB-25367-00-00
Unavailable
37
SPRING, TENSION(55X)
90507-15038-00
Unavailable
38
WASHER, PLATE
90201-12045-00
Unavailable
39
NUT, CASTLE
90171-12001-00
Unavailable
40
PIN, COTTER(6L5)
91490-25030-00
Unavailable
