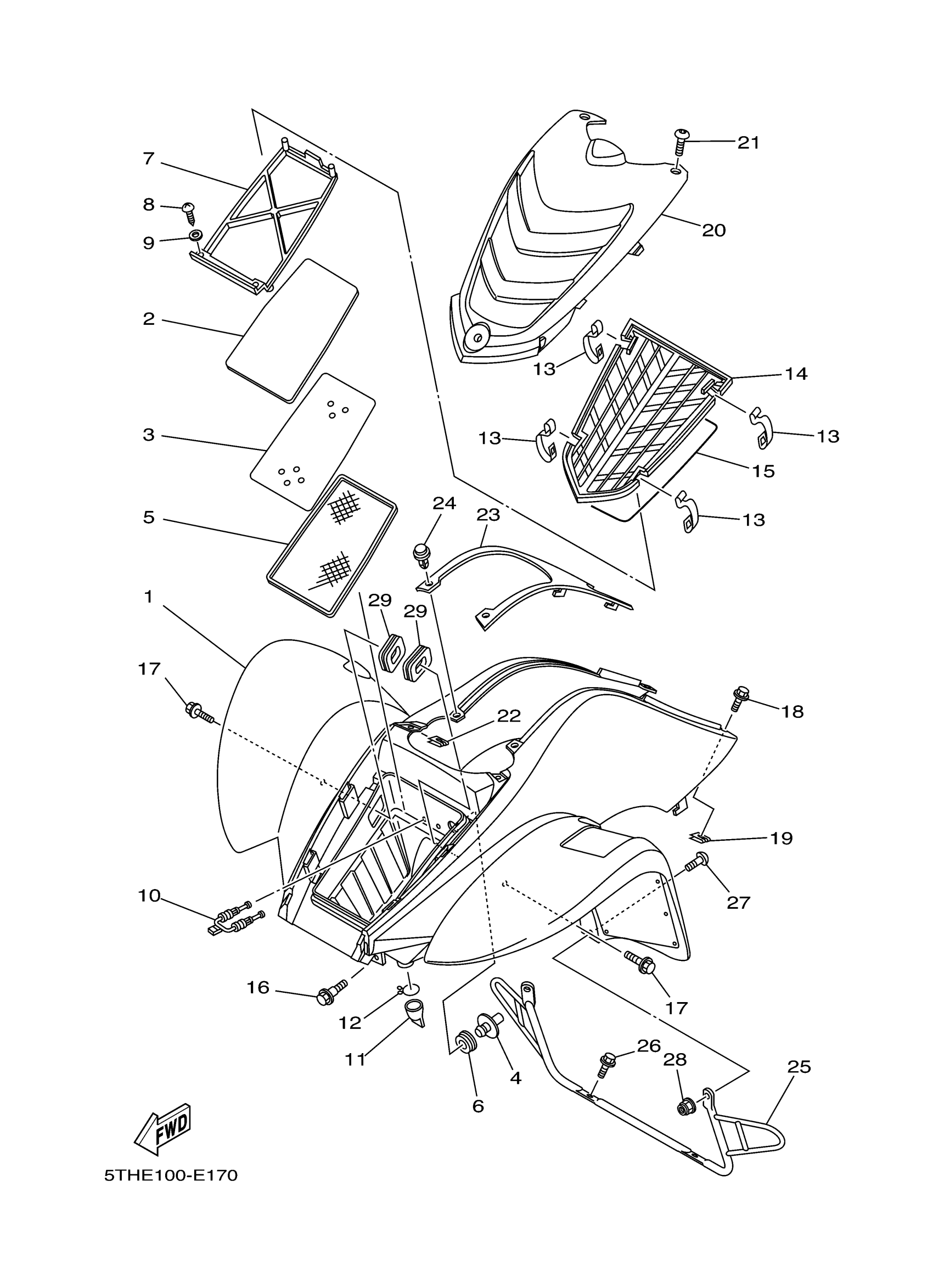

Yamaha YFM80RV (RAPTOR 80) 5THE 2006 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5TH-W2151-01-00
Unavailable
1
FRONT FENDER COMP.
5TH-W2151-21-00
Unavailable
3
PLATE
5TH-14477-00-00
Unavailable
4
PIPE
2D3-14419-00-00
Unavailable
5
PLATE, ELEMENT
55X-14472-01-00
Unavailable
7
GUIDE
55X-14458-00-00
Unavailable
9
WASHER(6E1)
92907-04200-00
Unavailable
10
HOOK
55X-14436-00-00
Unavailable
14
CAP, CLEANER CASE 1
5TH-14412-00-00
Unavailable
15
SEAL
1VJ-14462-00-00
Unavailable
16
BOLT(3KJ)
90109-063F1-00
Unavailable
17
BOLT, WITH WASHER
90119-06242-00
Unavailable
18
BOLT, WITH WASHER(3RB)
90119-05193-00
Unavailable
19
NUT, SPRING
90183-05008-00
Unavailable
20
FENDER, FRONT 2
5TH-21556-00-00
Unavailable
20
FENDER, FRONT 2
5TH-21556-20-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
22
NUT, SPRING
90183-05008-00
Unavailable
23
COVER, TOP
5TH-2171A-00-00
Unavailable
23
COVER, TOP (BLUISH WHITE SOLID 1)
5TH-2171A-20-00
Unavailable
24
RIVET
90269-06002-00
Unavailable
25
STAY, FENDER 1
5TH-21513-00-00
Unavailable
26
BOLT, FLANGE
95817-06010-00
Unavailable
27
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
28
NUT, S/L FLANGE
95607-05200-00
Unavailable
29
DUCT
2HX-14437-01-00
Unavailable
