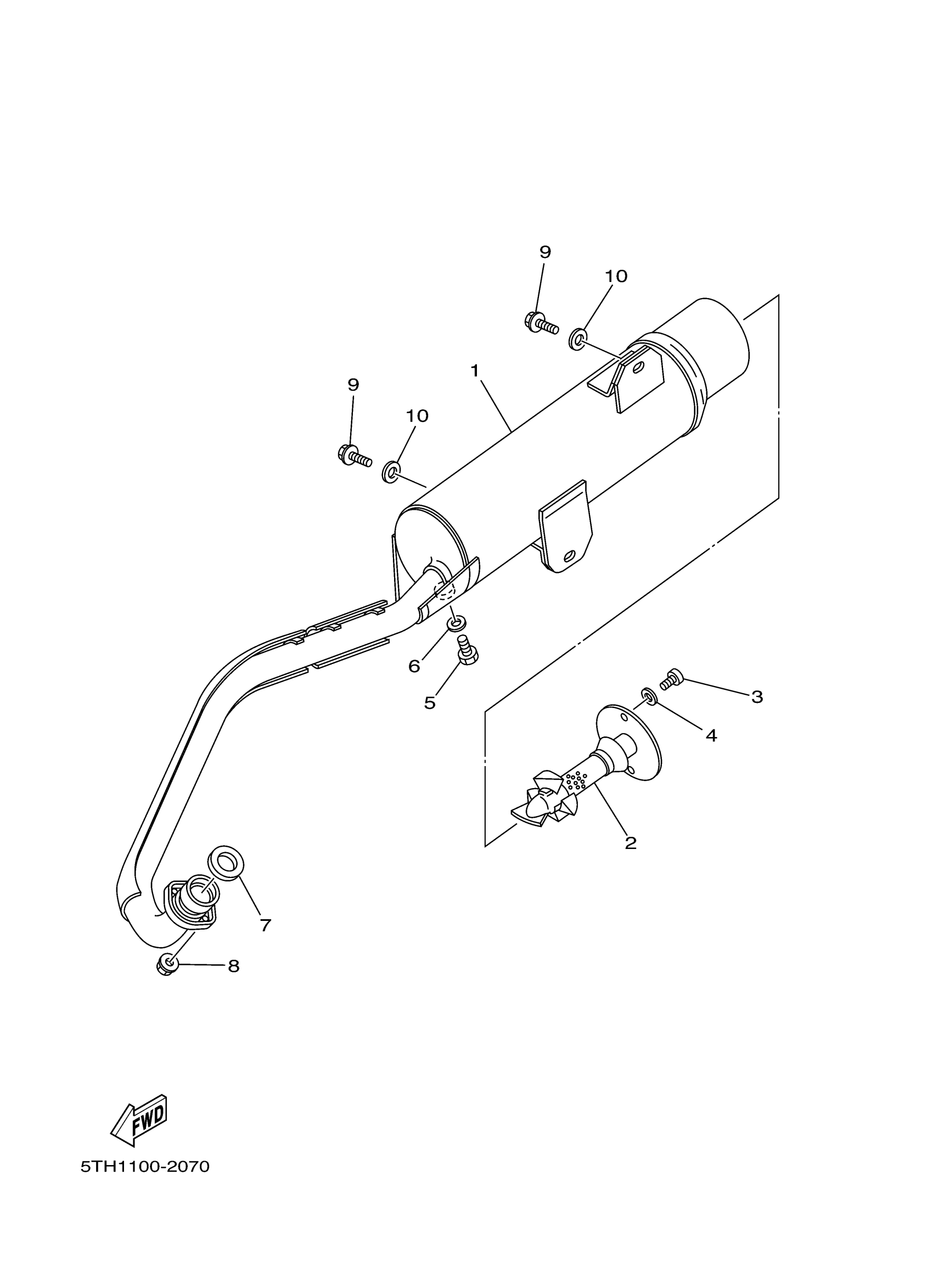

Yamaha YFM80RV (RAPTOR 80) 5THE 2006 EXHAUST Diagram

#

Description
Price

1

MUFFLER 1

5TH-14711-00-00

Unavailable

2

PIPE, OUTLET

55X-14752-00-00

$47.20

3

SCREW, PAN

98507-06010-00

$2.52

4

WASHER(6TA)

92907-06600-00

$0.73

5

BOLT (11T)

90101-06576-00

$6.03

6

WASHER(6TA)

92907-06600-00

$0.73

7

GASKET, EXHAUST PIPE

3DM-14613-00-00

$6.17

8

NUT, FLANGE(4MV)

95707-06500-00

$0.73

9

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

10

WASHER (853)

90201-08326-00

$5.75
