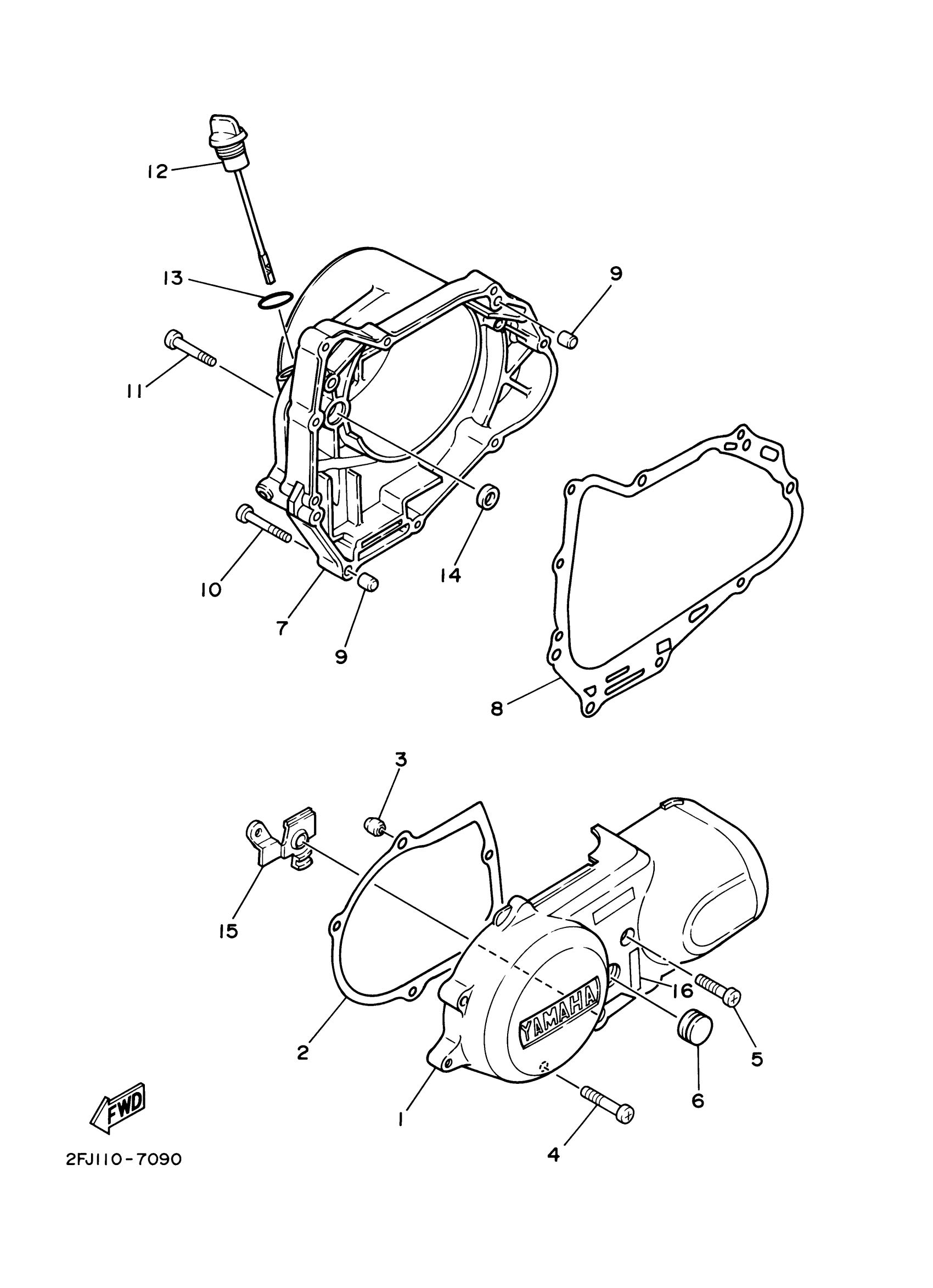

Yamaha YFM80RV (RAPTOR 80) 5THE 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

22F-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3GB-15451-00-00

$26.49

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

SCREW, PAN

98507-06040-00

$2.08

5

SCREW, PAN

98517-06030-00

$2.88

6

COVER, CAP

22F-15417-00-00

Unavailable

7

COVER, CRANKCASE 2

2FJ-15421-00-00

Unavailable

8

GASKET, CRANKCASE COVER 2

3GB-15461-00-00

$17.98

9

PIN, DOWEL(3BM)

99530-10120-00

$2.38

10

SCREW, PAN

98507-06045-00

$2.46

11

SCREW, PAN

98507-06035-00

$5.76

12

PLUG, OIL LEVEL

55X-15362-10-00

Unavailable

13

O-RING (646)

93210-19123-00

Unavailable

14

OIL SEAL(2FJ)

93101-10142-00

$5.73

15

WASHER(55X)

90209-11269-00

$25.20

16

EMBLEM

4EM-15443-01-00

Unavailable
