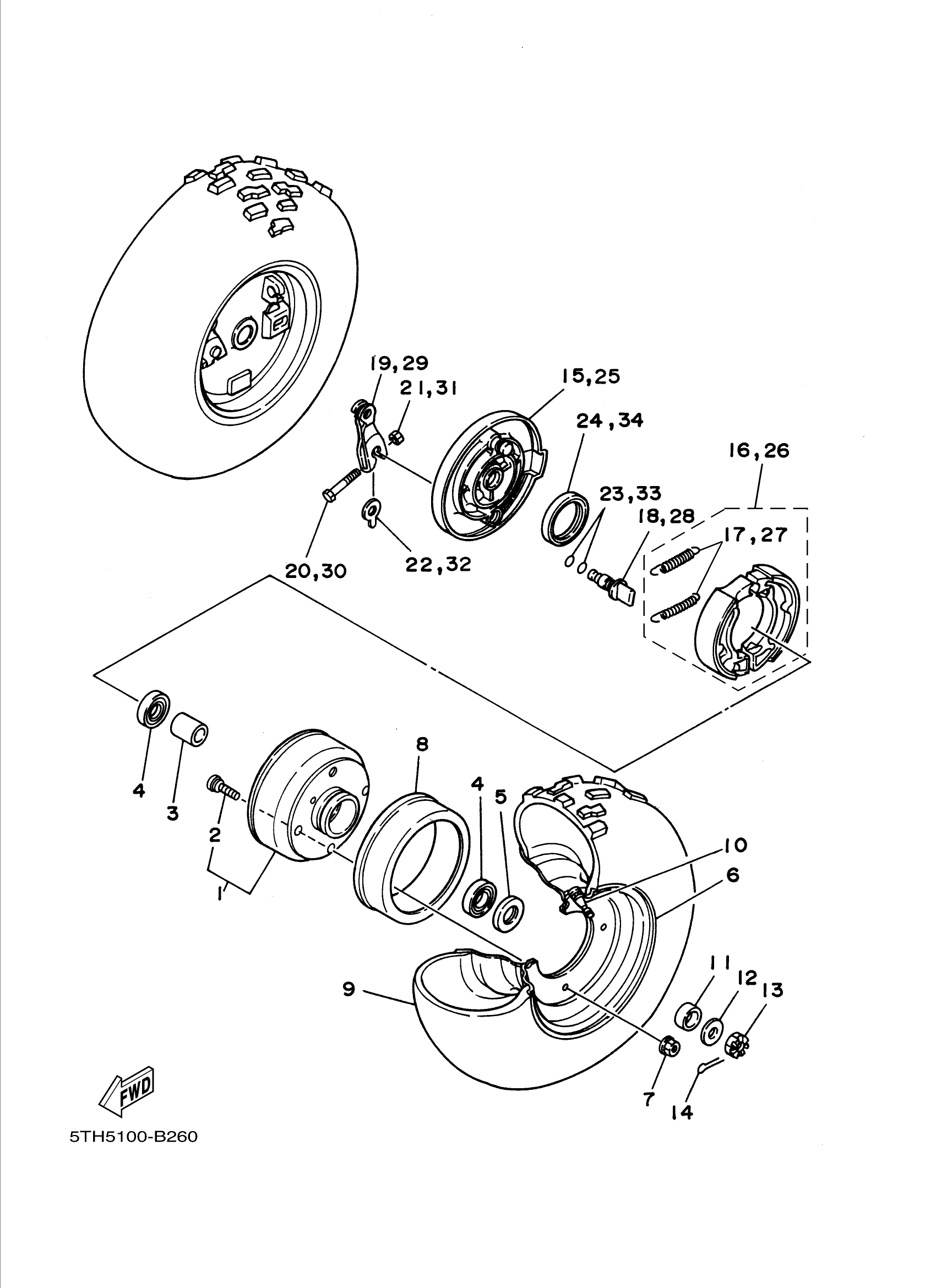

Yamaha YFM80RT (RAPTOR 80) 5THB 2005 FRONT WHEEL Diagram
#
Description
Price
1
HUB, FRONT
2FJ-25111-00-00
Unavailable
6
WHEEL COMP.
2FJ-25180-00-35
Unavailable
8
RING 1
3GB-25185-00-00
Unavailable
9
TIRE
2D3-2510K-09-00
Unavailable
11
COLLAR
90387-175R2-00
Unavailable
15
PLATE, BRAKE SHOE
2FJ-25121-00-00
Unavailable
16
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
17
SPRING, TENSION
90506-15260-00
Unavailable
18
CAMSHAFT
3GB-25151-00-00
Unavailable
19
LEVER, CAMSHAFT 1
2FJ-25155-00-00
Unavailable
20
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
21
NUT(6TA)
95317-06600-00
Unavailable
22
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
23
O-RING(3LD)
93210-12790-00
Unavailable
24
OIL SEAL(3BC)
93106-40027-00
Unavailable
25
PLATE, BRAKE SHOE 2
2FJ-25169-00-00
Unavailable
26
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
27
SPRING, TENSION
90506-15260-00
Unavailable
28
CAMSHAFT
3GB-25151-00-00
Unavailable
29
LEVER, CAMSHAFT 2
2FJ-25156-00-00
Unavailable
30
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
31
NUT(6TA)
95317-06600-00
Unavailable
32
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
33
O-RING(3LD)
93210-12790-00
Unavailable
34
OIL SEAL(3BC)
93106-40027-00
Unavailable
