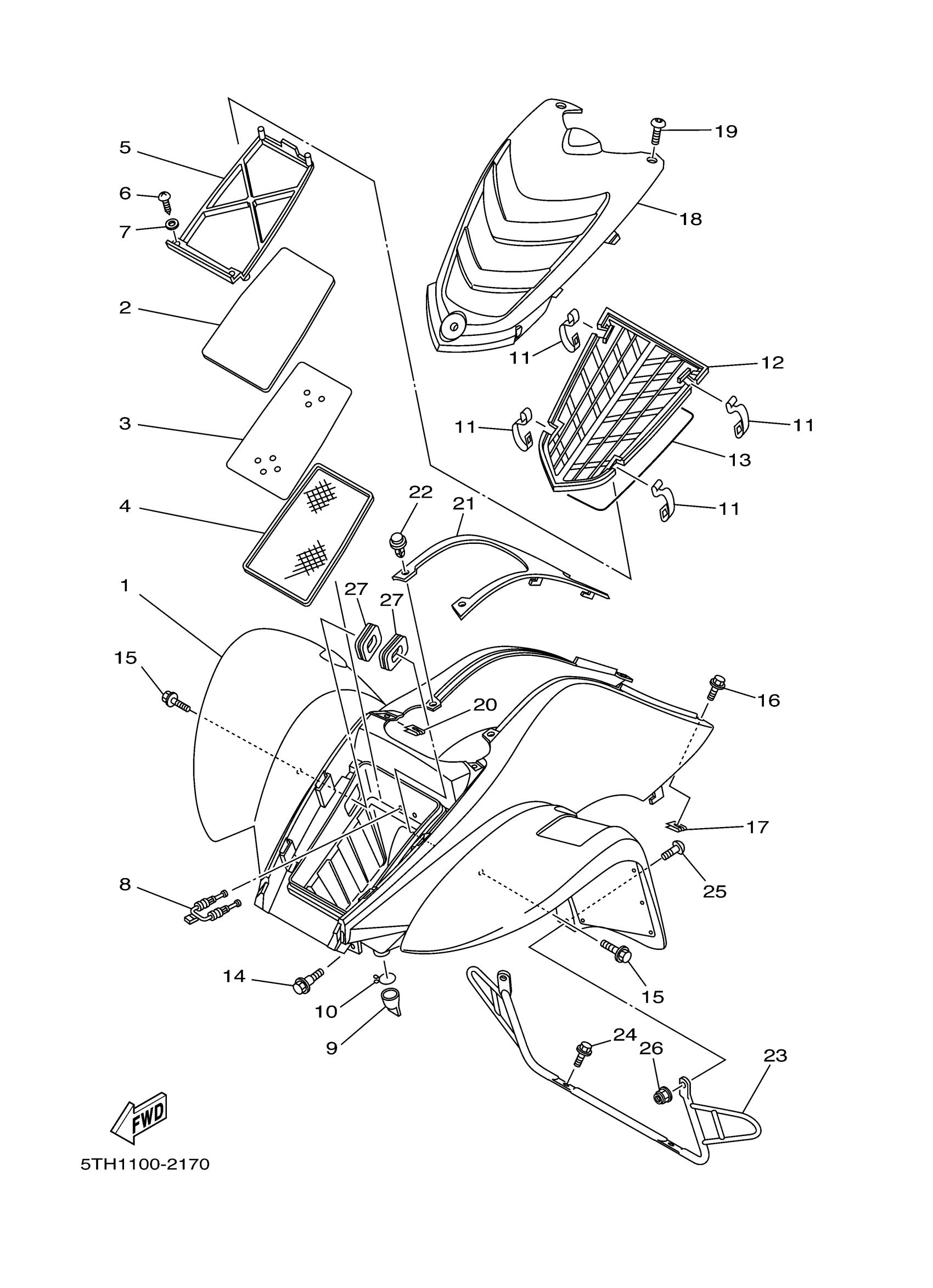

Yamaha YFM80RT (RAPTOR 80) 5THB 2005 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5TH-W2151-01-00

Unavailable

1

FRONT FENDER COMP.

5TH-W2151-21-00

Unavailable

2

ELEMENT, AIR CLEANER

55X-14451-00-00

$9.99

3

PLATE

5TH-14477-00-00

Unavailable

4

PLATE, ELEMENT

55X-14472-01-00

Unavailable

5

GUIDE

55X-14458-00-00

Unavailable

6

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

7

WASHER(6E1)

92907-04200-00

Unavailable

8

HOOK

55X-14436-00-00

Unavailable

9

SEAL

59V-14457-00-00

$6.99

10

CLIP (21V)

90467-22080-00

$8.49

11

HOOK

5TH-14436-00-00

$9.99

12

CAP, CLEANER CASE 1

5TH-14412-00-00

Unavailable

13

SEAL

1VJ-14462-00-00

$18.49

14

BOLT(3KJ)

90109-063F1-00

$2.97

15

BOLT, WITH WASHER

90119-06242-00

Unavailable

16

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable

17

NUT, SPRING

90183-05008-00

Unavailable

18

FENDER, FRONT 2

5TH-21556-00-00

Unavailable

18

FENDER, FRONT 2

5TH-21556-10-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

20

NUT, SPRING

90183-05008-00

Unavailable

21

COVER, TOP

5TH-2171A-00-00

Unavailable

21

COVER, TOP (BLUISH WHITE SOLID 1)

5TH-2171A-20-00

Unavailable

22

RIVET

90269-06002-00

Unavailable

23

STAY, FENDER 1

5TH-21513-00-00

Unavailable

24

BOLT, FLANGE

95817-06010-00

Unavailable

25

SCREW, BINDING (8R1)

90154-05011-00

Unavailable

26

NUT, S/L FLANGE

95607-05200-00

Unavailable

27

DUCT

2HX-14437-01-00

Unavailable
