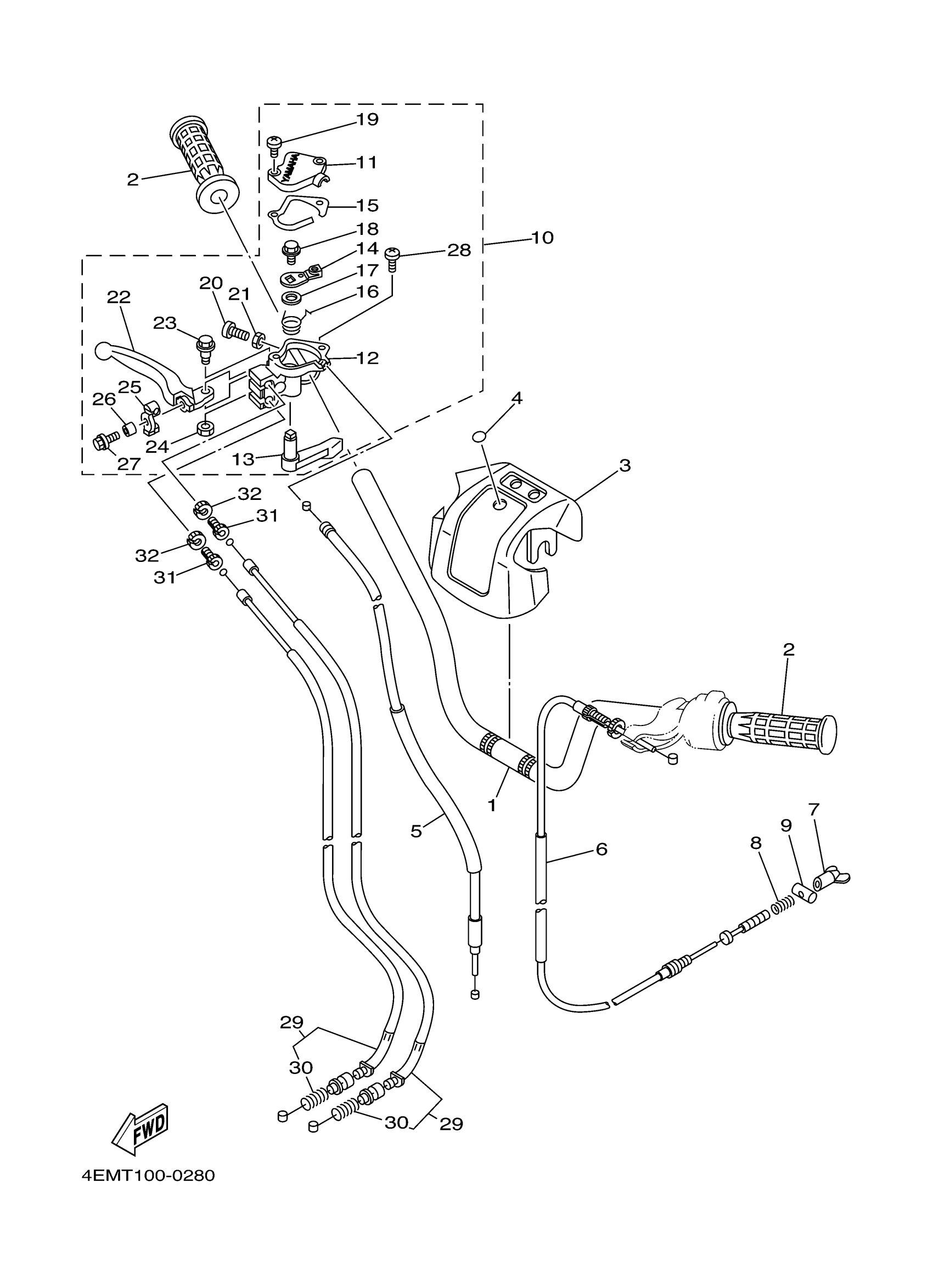

Yamaha YFM80NC (BADGER_REALTREE_HUNTER) 4EMY 2001 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

87A-23811-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$18.15

3

PROTECTOR, HANDLEBAR

3GD-26124-01-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$13.69

5

WIRE, THROTTLE 1

3GB-26311-03-00

$14.18

6

CABLE, BRAKE

3GB-26341-01-00

$42.68

7

NUT, AJUSTING

20E-26343-00-00

$21.23

8

SPRING, COMPRESSION (29U)

90501-10782-00

$5.87

9

PIN 1562723700

90249-12008-00

$6.08

10

THROTTLE LEVER ASSY

3GB-26250-01-00

Unavailable

11

CAP, GEAR

3GB-2628F-00-00

Unavailable

12

BODY, THROTTLE

3GB-2625E-01-00

Unavailable

13

LEVER, THROTTLE

3GB-2625G-00-00

Unavailable

14

ARM, THROTTLE

3GB-2625H-00-00

$6.42

15

GASKET

3GB-2628G-02-00

$5.06

16

SPRING, TORSION(3GB)

90508-10775-00

Unavailable

17

WASHER, PLATE(3GB)

90201-145M4-00

Unavailable

18

BOLT, FLANGE

95817-08012-00

Unavailable

19

SCREW, PAN HEAD

98517-04016-00

Unavailable

20

SCREW, PAN HEAD

98517-05020-00

Unavailable

21

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

22

LEVER 2

3GB-83922-00-00

Unavailable

23

BOLT(3GB)

90109-061F3-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

JOINT, CABLE

3GB-26347-00-00

Unavailable

26

COLLAR (3L6)

90387-06761-00

Unavailable

27

BOLT, FLANGE

95817-06016-00

Unavailable

28

SCREW, PAN

98517-06020-00

Unavailable

29

CABLE, BRAKE

3GB-26361-04-00

Unavailable

30

SPRING (2N3)

90501-08511-00

Unavailable

31

BOLT(2FJ)

90123-08106-00

Unavailable

32

NUT

90179-08030-00

Unavailable
