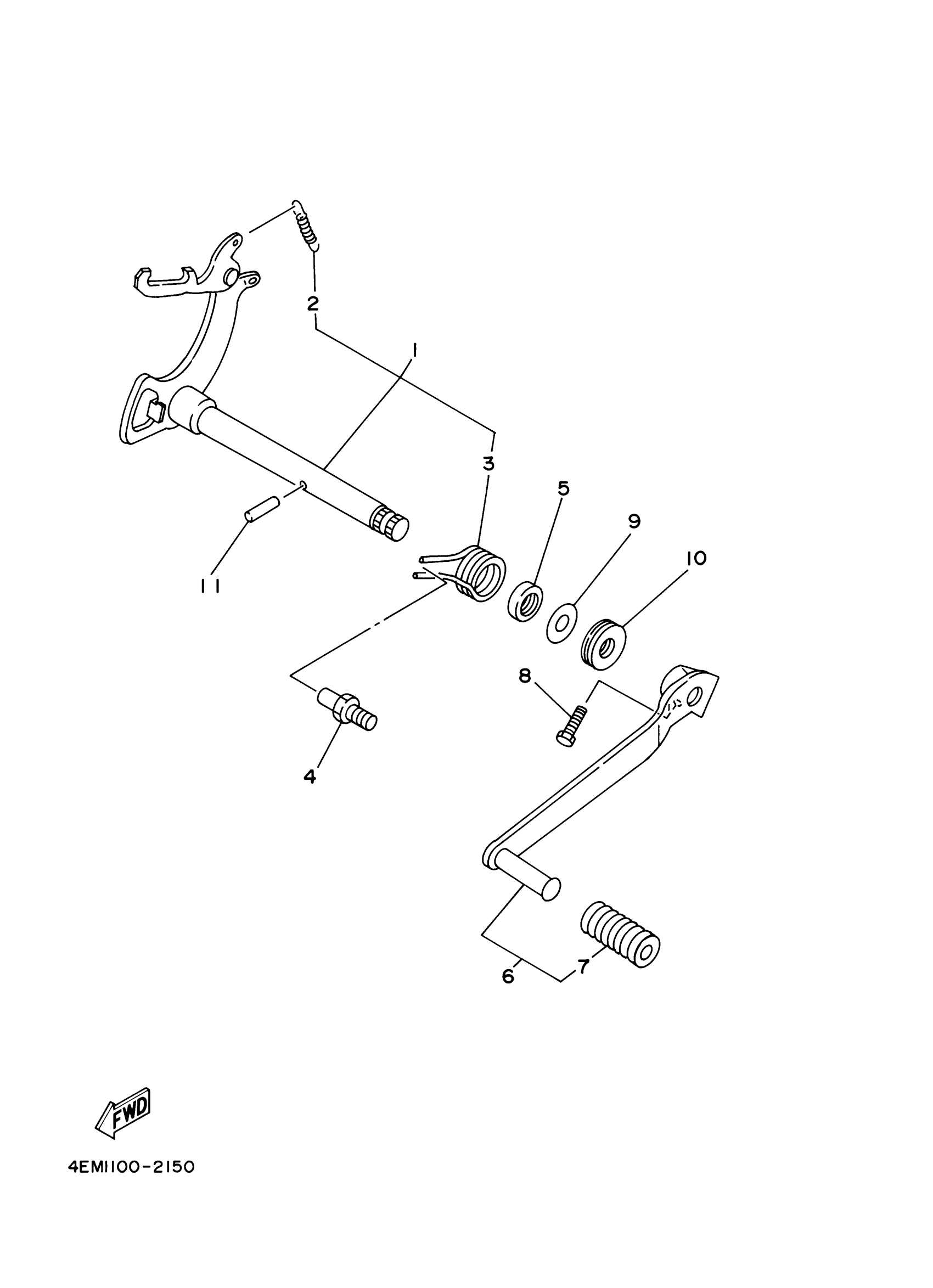

Yamaha YFM80NC (BADGER_REALTREE_HUNTER) 4EMY 2001 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

22F-18101-03-00

$49.49

2

SPRING, TENSION (296)

90506-08122-00

$5.53

3

SPRING, TORSION (22F)

90508-32563-00

$4.30

4

STOPPER, SCREW

278-18127-01-00

$15.32

5

OIL SEAL (12X22X5-371)

93102-12106-00

$9.65

6

SHIFT PEDAL ASSY

2HX-18110-10-00

$30.71

7

COVER, CHANGE PEDAL

132-18113-01-00

$6.08

8

BOLT, HEXAGON

97017-06020-00

$2.42

9

WASHER, PLATE(2JG)

90201-126L0-00

$4.89

10

BEARING, THRUST(2FL)

93340-21209-00

$13.93

11

PIN, DOWEL (4H7)

93604-20156-00

$2.29
