Description

Price

1

FUEL TANK COMP.

2HX-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L600)

90445-083J5-00

$10.49

4

GROMMET (4V1)

90480-18290-00

$8.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

COLLAR (36R)

90387-066J1-00

$8.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92907-06100-00

$4.25

9

GROMMET(38W)

90480-01400-00

$13.49

10

WASHER, PLATE

90201-06090-00

$5.60

11

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

12

SEAL, COCK

3AJ-24534-01-00

$10.99

13

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

14

O-RING

4X8-24512-00-00

$8.99

15

VALVE PACKING

3AC-24523-00-00

$12.99

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

HOSE (L200)

90445-10752-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

21

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

22

DAMPER 1

88T-77198-00-00

Unavailable

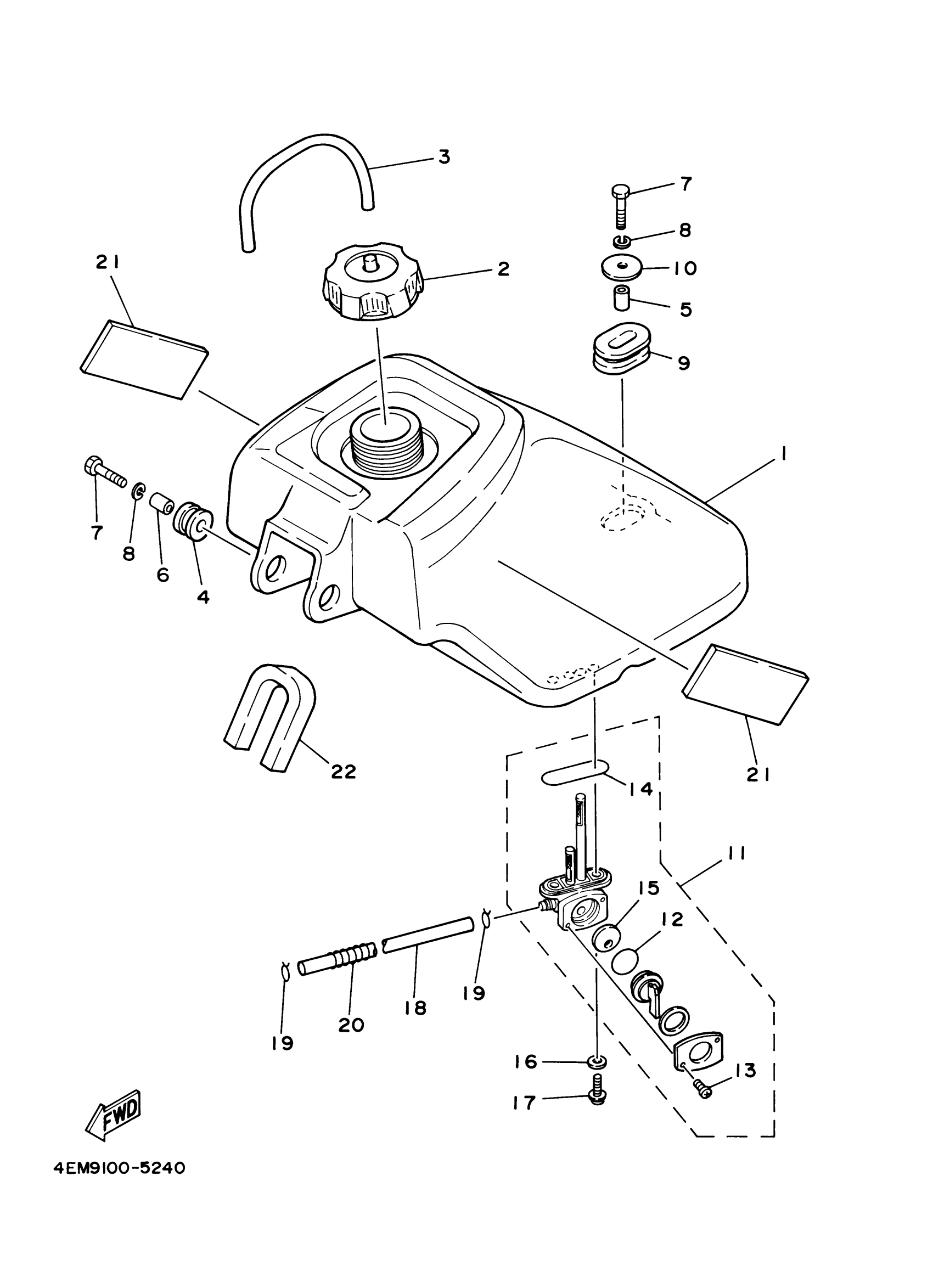

Yamaha YFM80NC (BADGER_REALTREE_HUNTER) 4EMY 2001 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L600)

GROMMET (4V1)

COLLAR (1T2)

COLLAR (36R)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L200)

CLIP

SPRING, COMPRESSION (1J7)

SEAT, BATTERY

DAMPER 1
