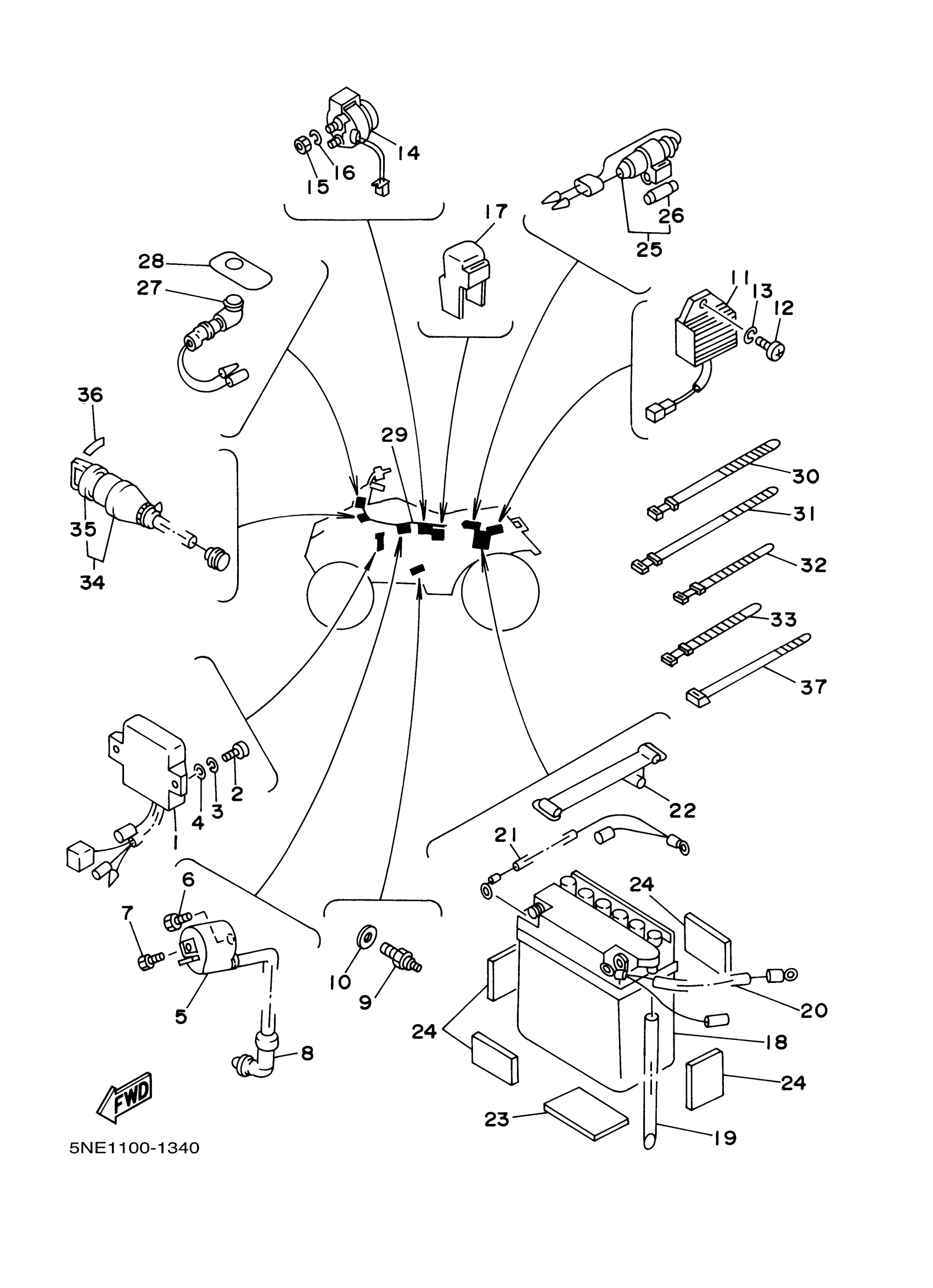

Yamaha YFM80NC (BADGER_REALTREE_HUNTER) 4EMY 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4EM-85540-10-00

Unavailable

2

SCREW, PAN

98517-06020-00

$8.49

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

6

BOLT, HEXAGON

97017-06016-00

$8.49

7

SCREW (5G3)

90153-06034-00

$7.49

8

PLUG CAP ASSY

4BP-82370-01-00

$35.99

9

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

10

GASKET (1KH,1.0T)

90430-10148-00

$5.60

11

RECTIFIER & REGULATOR ASSY

5TH-81960-01-00

Unavailable

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

13

WASHER, SPRING

92907-06100-00

$4.25

14

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

15

NUT(JN5)

95317-06700-00

$8.49

16

WASHER, SPRING

92907-06100-00

$4.25

17

RELAY ASSY

12R-81950-02-00

Unavailable

18

BAT 12N7-3B YU

12N-73B00-00-00

Unavailable

19

HOSE (L1500)

90445-084J0-00

Unavailable

20

WIRE, PLUS LEAD

55X-82115-01-00

Unavailable

21

WIRE, MINUS LEAD

3GB-82116-00-00

Unavailable

22

BAND, BATTERY

4J2-82131-01-00

Unavailable

23

SEAT, BATTERY

55X-82122-00-00

Unavailable

24

DAMPER 1

1UY-21638-00-00

Unavailable

25

FUSE HOLDER ASSY

3GB-82150-00-00

Unavailable

26

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

27

PILOT LIGHT ASSY

4KB-83530-01-00

Unavailable

28

LABEL

4EM-83585-10-00

Unavailable

29

WIRE HARNESS ASSY

4EM-82590-20-00

Unavailable

30

BAND, SWITCH CORD

437-83936-11-00

Unavailable

31

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

32

BAND, SWITCH CORD

437-83936-01-00

Unavailable

33

BAND, SWITCH CORD

437-83936-01-00

Unavailable

34

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

35

CAP, KEY

3HN-82579-00-00

Unavailable

36

LABEL

29U-83585-10-00

Unavailable

37

CLAMP

90465-10098-00

Unavailable

38

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

39

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
