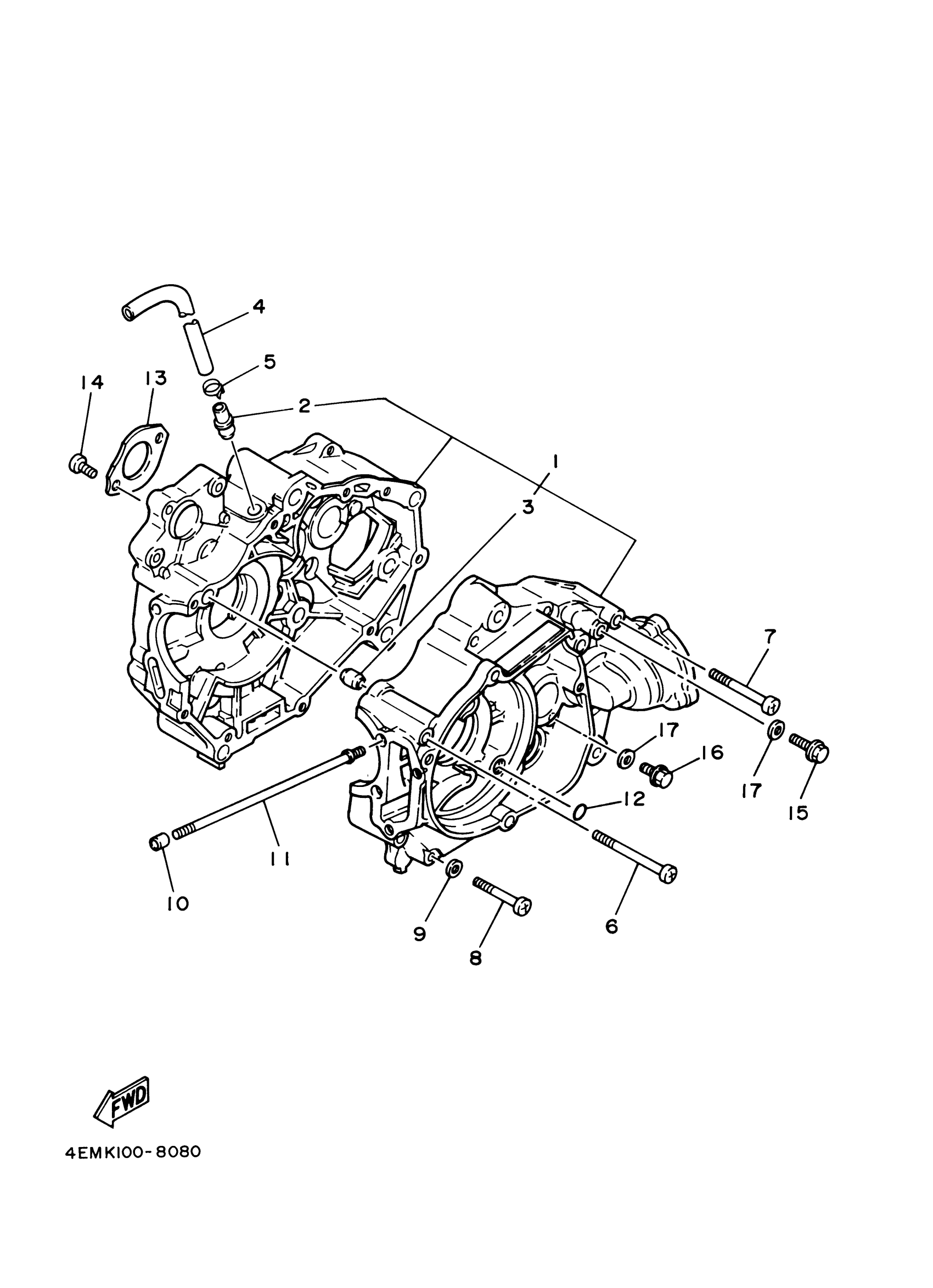

Yamaha YFM80NC (BADGER_REALTREE_HUNTER) 4EMY 2001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2FJ-15100-01-00

Unavailable

2

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$3.93

4

HOSE (L700)

90445-121F6-00

Unavailable

5

CLIP(3YX)

90467-13133-00

$5.30

6

SCREW, PAN

98507-06075-00

$5.34

7

SCREW, PAN

98507-06060-00

$5.34

8

SCREW, PAN

98507-06045-00

$2.51

9

GASKET 256113960000

90430-06014-00

Unavailable

10

PIN, DOWEL

99530-08012-00

$5.39

11

BOLT, STUD

90116-06042-00

$3.08

12

O-RING (11M)

93210-07540-00

$5.50

13

PLATE, BEARING COVER

22F-15383-01-00

Unavailable

14

SCREW, PAN

98517-06012-00

$2.99

15

BOLT, FLANGE

95817-06025-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

GASKET (4V2)

90430-06166-00

Unavailable
