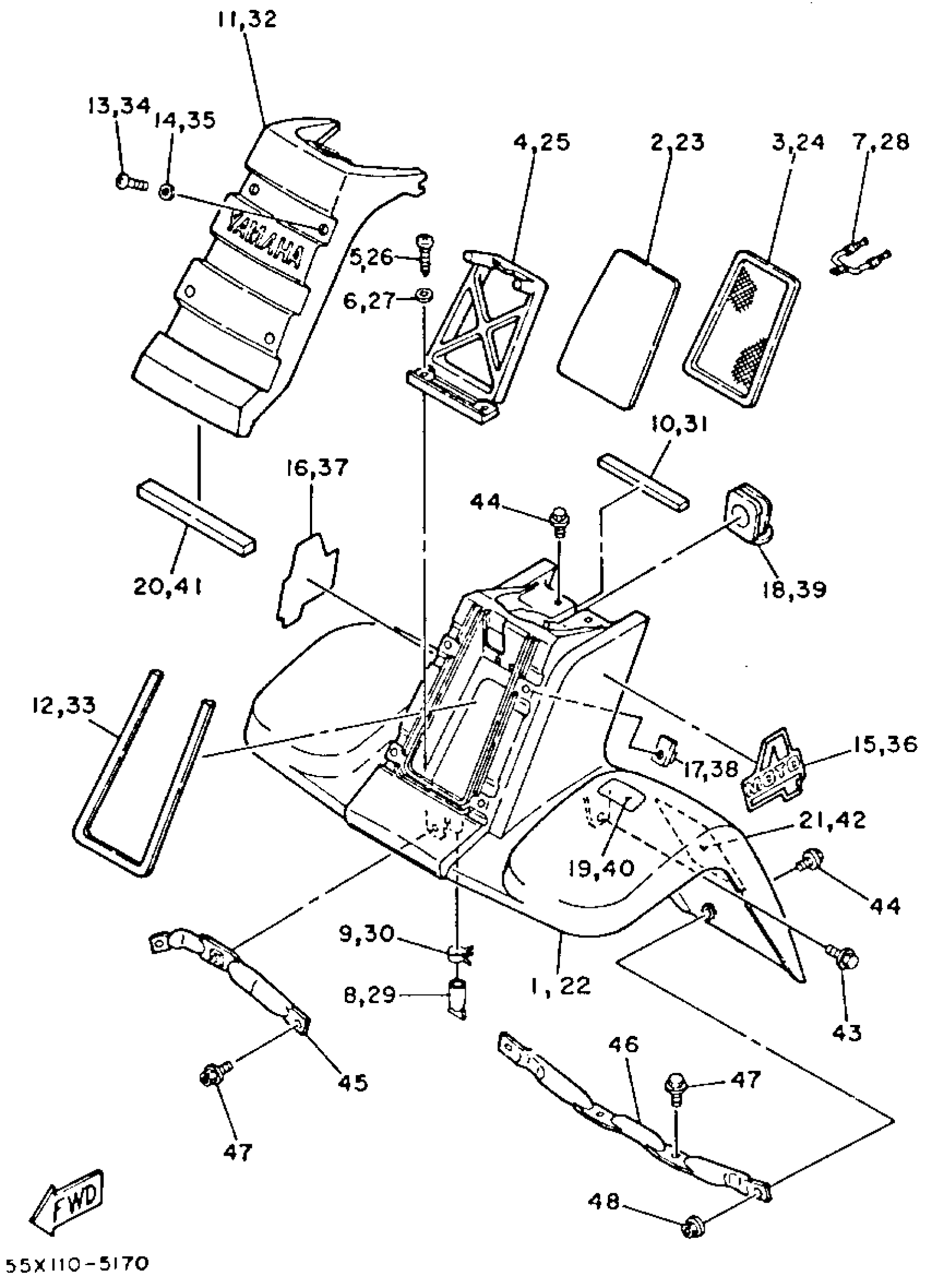

Yamaha YFM80N (BADGER) 1985 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (55X-21511-01-00)

55X-21511-09-00

Unavailable

2

ELEMENT, AIR CLEANER

55X-14451-00-00

$9.99

3

PLATE, ELEMENT

55X-14472-01-00

Unavailable

4

GUIDE

55X-14458-00-00

Unavailable

5

SCREW, TAPPING

97780-40116-00

Unavailable

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

HOOK

55X-14436-00-00

Unavailable

8

SEAL

59V-14457-00-00

$6.99

9

CLIP (21V)

90467-22080-00

$8.49

10

SEAL 2

55X-21576-00-00

Unavailable

11

OVER, FENDER

55X-21551-00-00

Unavailable

12

SEAL 1

55X-21575-01-00

Unavailable

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

WASHER(1RW)

92907-05600-00

$3.78

15

GRAPHIC, FRONT FN 1

(55X-21571-00-00)

Unavailable

16

GRAPHIC FRT FNDR 2

(55X-21572-00-00)

Unavailable

17

NUT 1

55X-21535-00-00

Unavailable

18

DUCT

55X-14437-00-00

Unavailable

19

LABEL, CHOKE

(55X-26139-00-00)

Unavailable

20

DAMPER (55X-21541-00)

1X2-28372-00-00

Unavailable

21

LABEL, SAFETY

55X-21659-00-00

Unavailable

22

FENDER, front

2FJ-21511-10-00

Unavailable

23

ELEMENT, AIR CLEANER

55X-14451-00-00

$9.99

24

PLATE, ELEMENT

55X-14472-01-00

Unavailable

25

GUIDE

55X-14458-00-00

Unavailable

26

SCREW, TAPPING

97780-40116-00

Unavailable

27

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

28

HOOK

55X-14436-00-00

Unavailable

29

SEAL

59V-14457-00-00

$6.99

30

CLIP (21V)

90467-22080-00

$8.49

31

SEAL 2

55X-21576-00-00

Unavailable

32

OVER, FENDER

55X-21551-00-00

Unavailable

33

SEAL 1

55X-21575-01-00

Unavailable

34

SCREW, PAN HEAD

98517-05020-00

$4.25

35

WASHER(1RW)

92907-05600-00

$3.78

36

GRAPHIC, FRT FNDR 1

55X-21571-10-00

Unavailable

37

GRAPHIC FRT FNDR 2

(55X-21572-10-00)

Unavailable

38

NUT 1

55X-21535-00-00

Unavailable

39

DUCT

55X-14437-00-00

Unavailable

40

LABEL, CHOKE

(55X-26139-00-00)

Unavailable

41

DAMPER (55X-21541-00)

1X2-28372-00-00

Unavailable

42

LABEL, SAFETY

55X-21659-00-00

Unavailable

43

BOLT, WITH WASHER

90119-06152-00

Unavailable

44

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

45

STAY, FENDER 2

55X-21514-00-00

Unavailable

46

STAY, FENDER 1

55X-21513-00-00

Unavailable

47

BOLT, FLANGE

95817-06012-00

Unavailable

48

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
