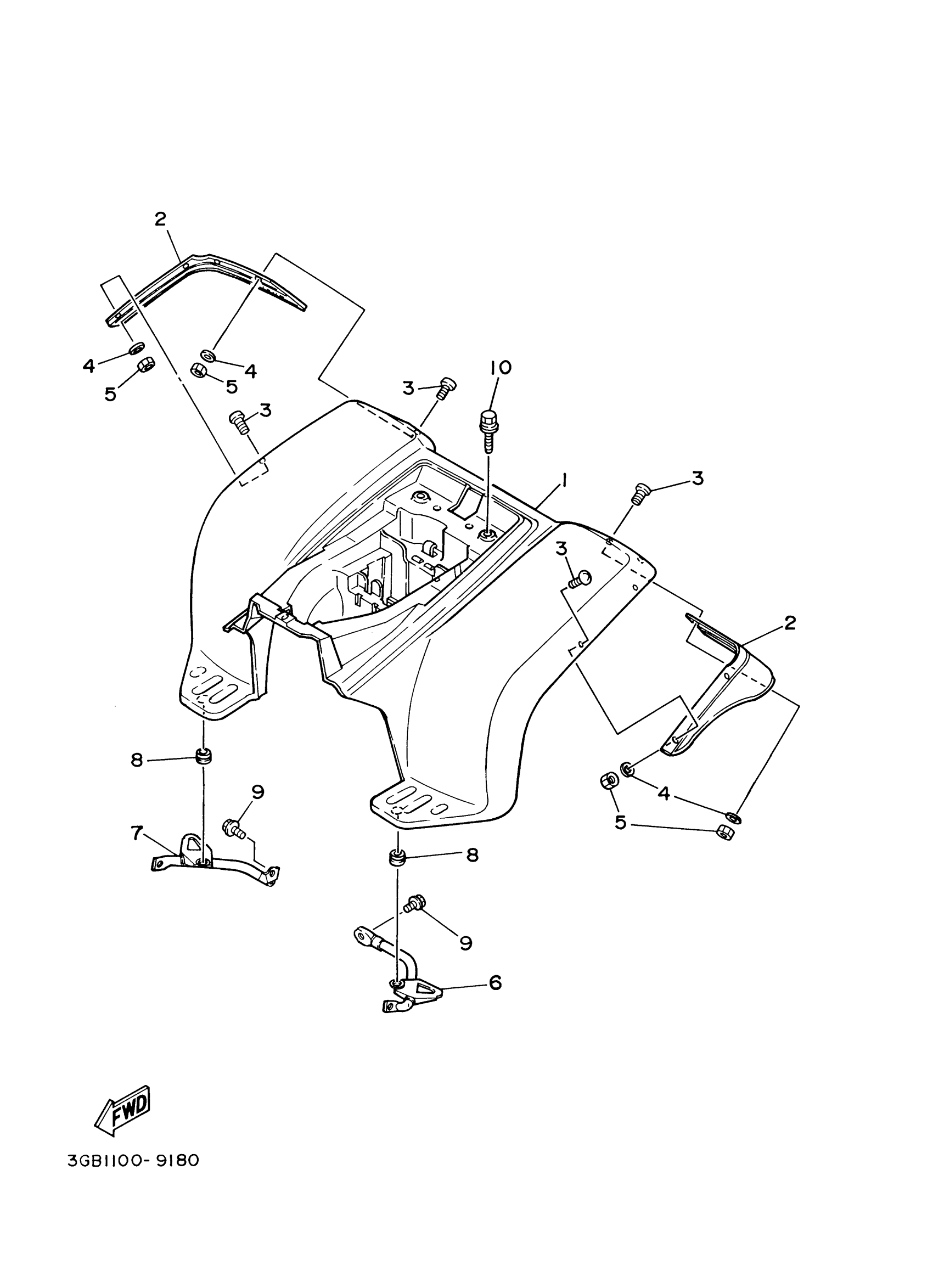

Yamaha YFM80MC (BADGER) 4EMS 2000 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

4EM-W2161-C1-00

Unavailable

2

FLAP

2HX-21621-00-00

Unavailable

3

SCREW, BINDING (8J0)

90154-05005-00

$3.65

4

WASHER, PLATE 8067717800

90201-05029-00

$4.91

5

NUT, NYLON

95707-05300-00

$2.56

6

STAY, FENDER 1

3GB-21613-00-00

Unavailable

7

STAY, FENDER 2

3GB-21614-00-00

Unavailable

8

GROMMET (2N3)

90480-16233-00

$6.35

9

BOLT, FLANGE

95817-08012-00

$3.71

10

BOLT, WITH WASHER

90119-06152-00

$2.56

11

PLATE, EPA 3 (CALIFORNIA)

4EM-2179T-00-00

Unavailable
