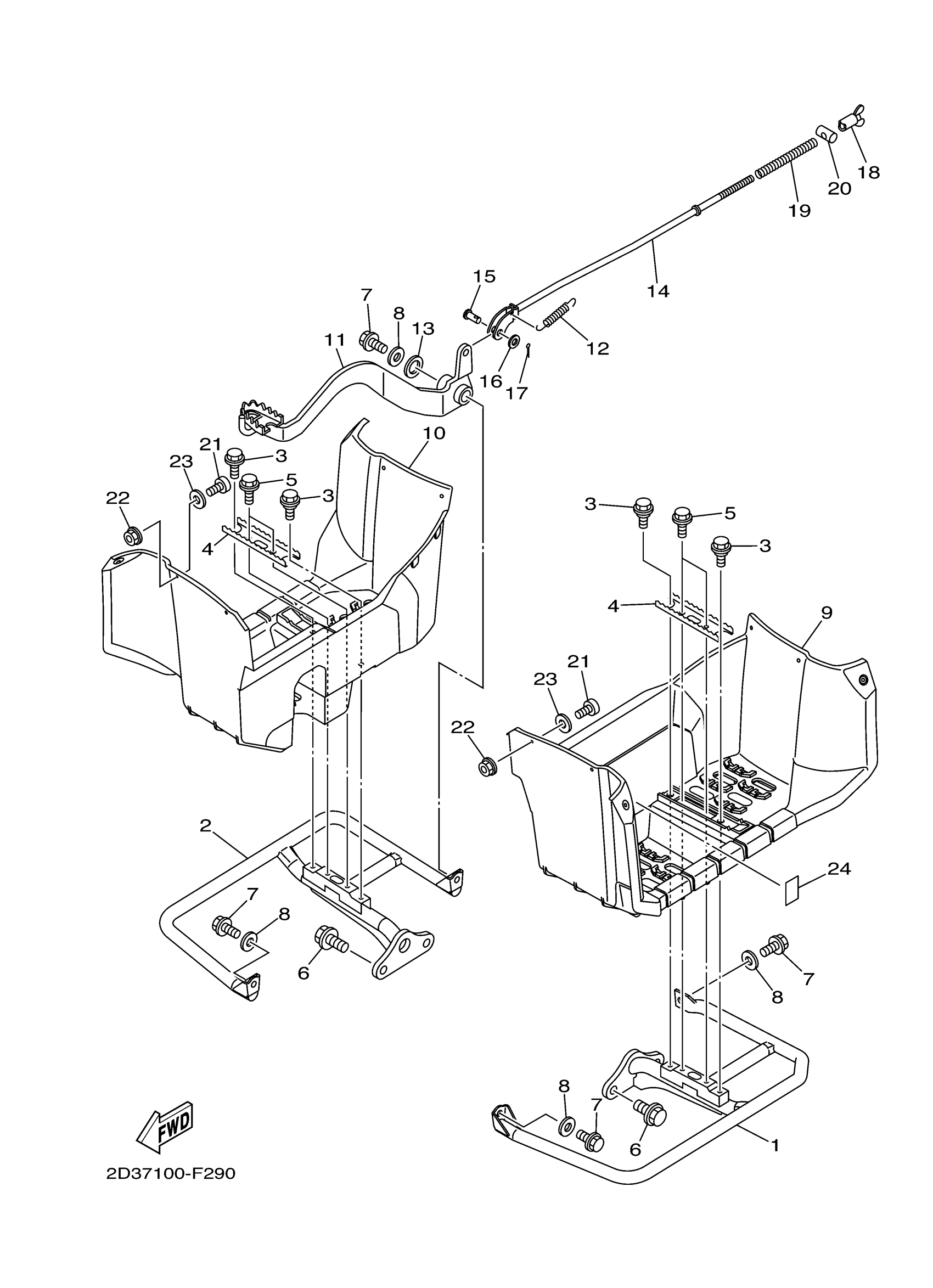

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

2D3-27411-10-00

Unavailable

2

FOOTREST 2

2D3-27421-10-00

Unavailable

3

BOLT

90109-06172-00

$7.49

4

ARM 1

2D3-2741A-00-00

Unavailable

5

BOLT, FLANGE

95817-06012-00

$1.43

6

BOLT, FLANGE

95812-12020-00

$8.49

7

BOLT, FLANGE

95022-08014-00

$8.49

8

WASHER, PLATE

90201-08043-00

$7.49

9

COVER 1

2D3-27453-01-00

Unavailable

10

COVER 2

2D3-27463-01-00

Unavailable

11

PEDAL, BRAKE

2D3-27211-10-00

Unavailable

12

SPRING, TENSION (29U)

90506-16318-00

$10.49

13

WASHER, PLATE

90201-15018-00

$7.49

14

ROD, BRAKE

3GB-27231-00-00

Unavailable

15

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

PIN, COTTER (648)

91490-20015-00

Unavailable

18

NUT, AJUSTING

20E-26343-00-00

Unavailable

19

SPRING, (180-27236-00)

90501-10245-00

Unavailable

20

PIN 1562723700

90249-12008-00

Unavailable

21

SCREW, BIND (8K2)

98902-05016-00

Unavailable

22

NUT, NYLON

95707-05300-00

Unavailable

23

WASHER, PLATE

90201-05042-00

Unavailable

24

EMBLEM

4EM-15443-01-00

Unavailable
