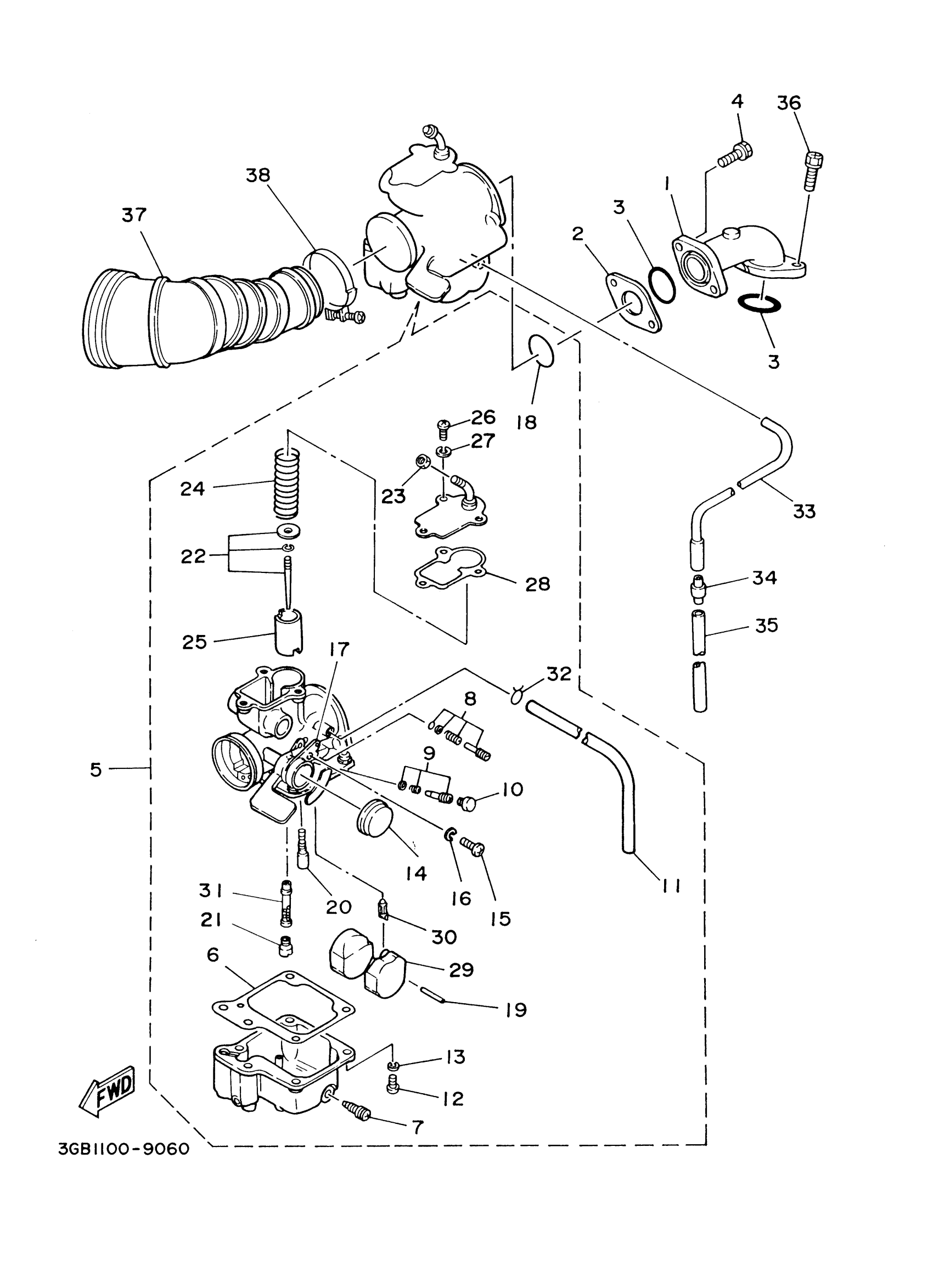

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

55X-13586-00-00

Unavailable

2

JOINT

22K-13595-00-00

Unavailable

3

O-RING (22F)

93210-25552-00

$13.49

4

SCREW, WITH WASHER (22K)

90159-06076-00

$9.49

5

CARBURETOR ASSY 1

5TH-14101-11-00

$379.99

6

GASKET, FLOAT CHAMBER

22F-14184-00-00

$17.49

7

PLUG, DRAIN

12R-14191-00-00

$16.49

8

THROTTLE SCREW SET

22F-14103-00-00

Unavailable

9

AIR SCREW SET

22K-14104-00-00

$13.49

10

CAP

22F-14991-00-00

Unavailable

11

HOSE (L1500)

90445-084J0-00

$18.99

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

CAP

22F-14169-00-00

$9.99

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

PLATE

55X-14146-00-00

Unavailable

18

O-RING

22K-14147-00-00

Unavailable

19

PIN, FLOAT

127-14186-00-00

Unavailable

20

JET, PILOT (#12.5)

22F-14142-12-00

Unavailable

21

JET, MAIN(#76.3)

18A-1414E-30-00

Unavailable

22

NEEDLE SET

2HX-1490J-10-00

Unavailable

23

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

24

SPRING, THROTTLE VALVE

260-14131-00-00

Unavailable

25

VALVE, THROTTLE 1

2HX-14112-35-00

Unavailable

26

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

28

GASKET

55X-14198-00-00

Unavailable

29

FLOAT

22F-14185-00-00

Unavailable

30

NEEDLE ASSY

5TH-14150-00-00

Unavailable

31

. NOZZLE, MAIN

4EM-14141-78-00

Unavailable

32

CLIP

55X-14937-00-00

Unavailable

33

PIPE

55X-14196-00-00

Unavailable

34

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

36

SCREW, WITH WASHER (22K)

90159-06076-00

$9.49

37

JOINT, AIR CLEANER 1

3GB-14453-00-00

Unavailable

38

CLAMP, HOSE (5H0)

90460-43179-00

Unavailable
