Description

Price

1

FUEL TANK COMP.

2HX-24110-10-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L600)

90445-083J5-00

$10.49

4

GROMMET (4V1)

90480-18290-00

$8.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

COLLAR (36R)

90387-066J1-00

$8.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92907-06100-00

$4.25

9

GROMMET(38W)

90480-01400-00

$13.49

10

WASHER, PLATE

90201-06090-00

$5.60

11

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

12

SEAL, COCK

3AJ-24534-01-00

$10.99

13

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

14

O-RING

4X8-24512-00-00

$8.99

15

VALVE PACKING

3AC-24523-00-00

$12.99

16

SCREW

90149-06108-00

Unavailable

17

HOSE

90445-10829-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

20

DAMPER 1

88T-77198-00-00

Unavailable

21

DAMPER, PLATE 1

5TH-2414H-00-00

Unavailable

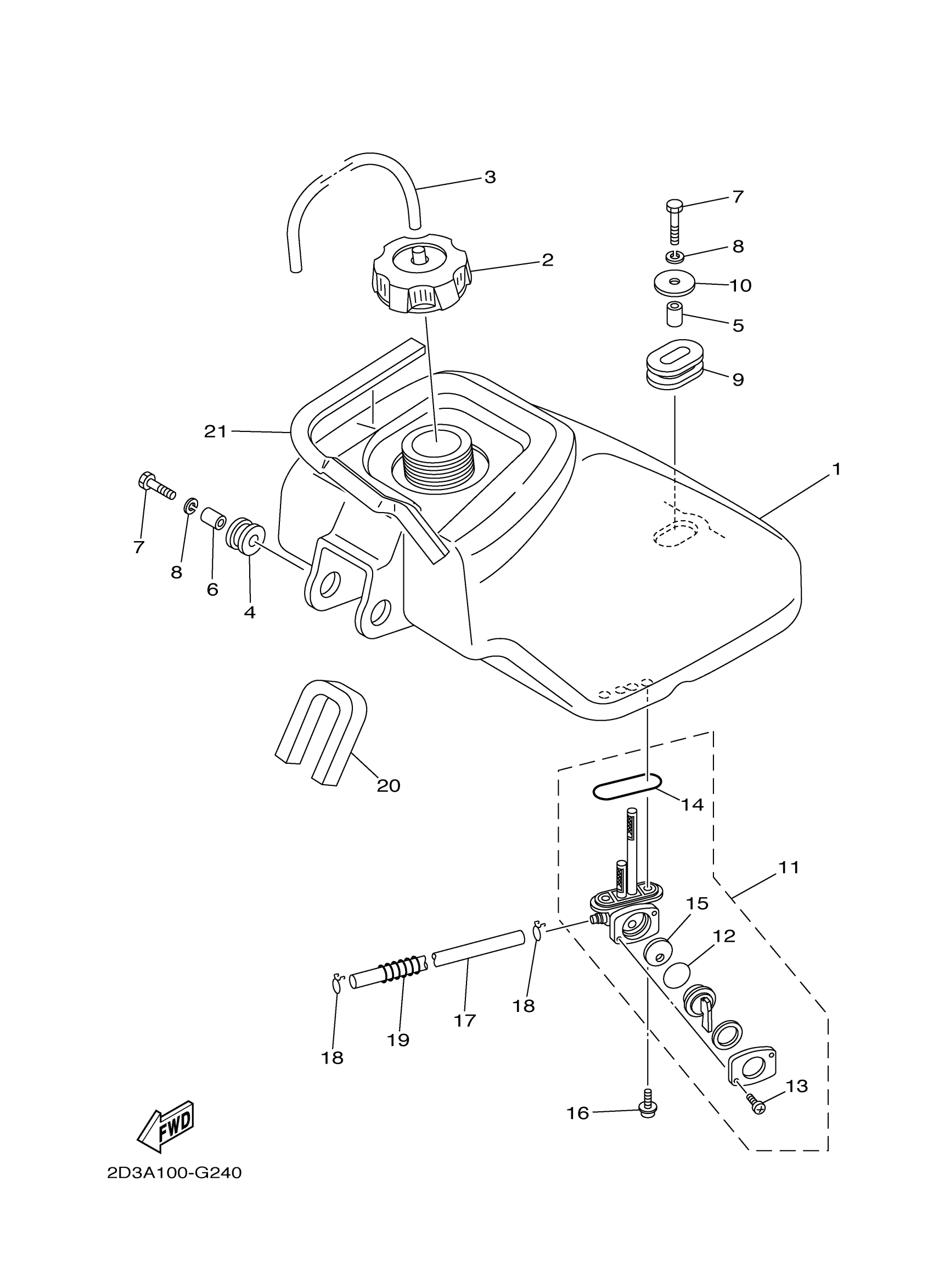

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L600)

GROMMET (4V1)

COLLAR (1T2)

COLLAR (36R)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD(3AC)

O-RING

VALVE PACKING

SCREW

HOSE

CLIP

SPRING, COMPRESSION (1J7)

DAMPER 1

DAMPER, PLATE 1
