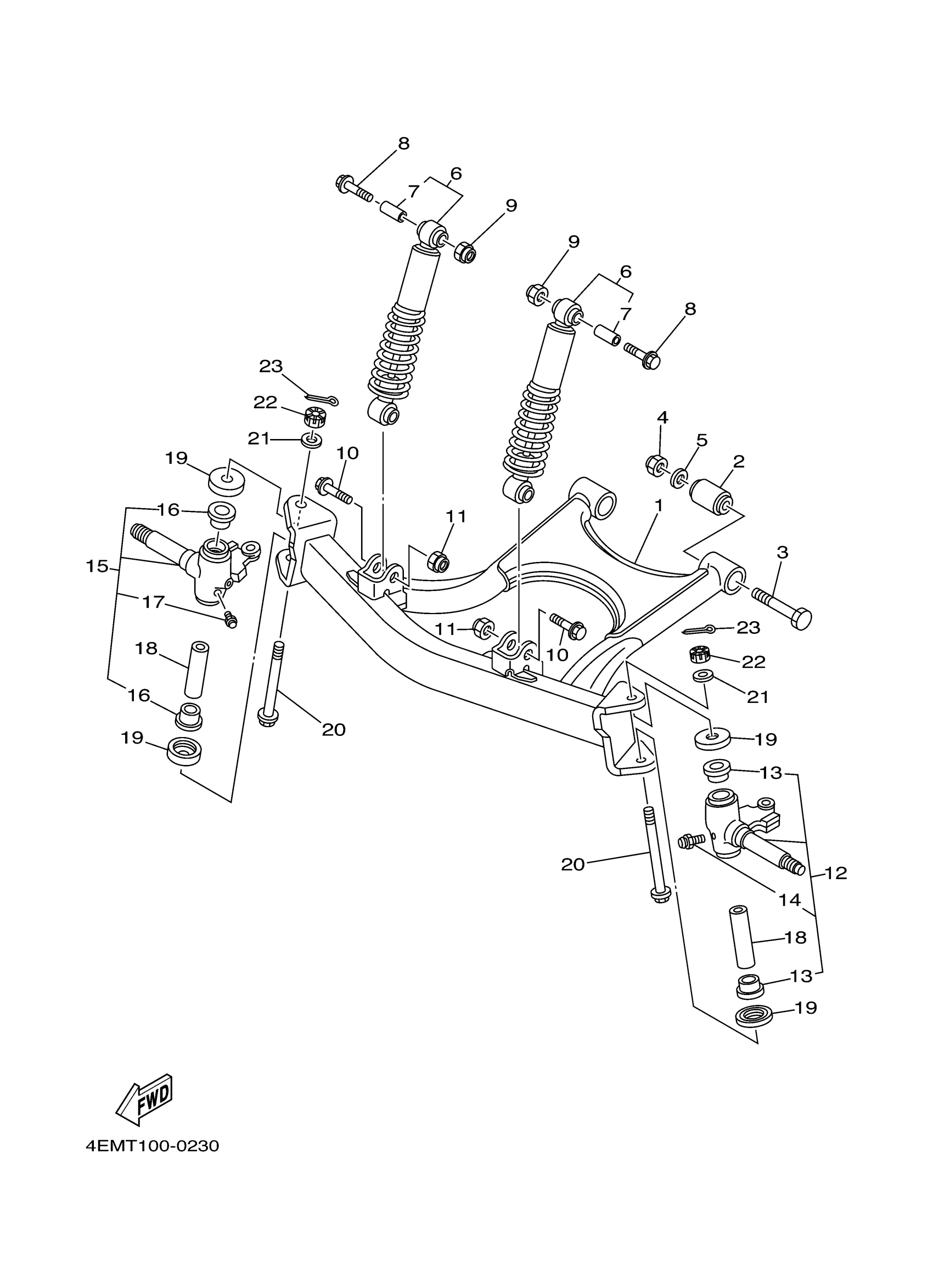

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP.(LEFT)

3GB-23570-00-33

$263.05

2

BUSHING,REAR ARM

307-22123-00-00

$17.03

3

BOLT

90101-12033-00

$3.36

4

NUT, SELF-LOCKING

90185-12010-00

$6.70

5

WASHER, PLATE

90201-12050-00

$3.64

6

SHOCK ABSORBER ASSY

2HX-23350-00-00

Unavailable

7

COLLAR, DISTANCE

2HX-2331U-00-00

Unavailable

8

BOLT, FLANGE

90105-10262-00

$6.50

9

NUT, SELF-LOCKING

90185-10022-00

$3.15

10

BOLT, FLANGE

90105-12062-00

$12.21

11

NUT, SELF-LOCKING

90185-12010-00

$6.70

12

STEERING KNUCKLE ASSY (LEFT)

3GB-23501-10-00

Unavailable

13

BUSH, SOLID(2NL)

90381-17067-00

$9.25

14

NIPPLE, GREASE

93700-06M03-00

$7.40

15

STEERING KNUCKLE ASSY (RIGHT)

3GB-23502-10-00

Unavailable

16

BUSH, SOLID(2NL)

90381-17067-00

$9.25

17

NIPPLE, GREASE

93700-06M03-00

$7.40

18

SPACER

3GB-23448-00-00

Unavailable

19

COVER, THRUST 1

3JN-23517-00-00

Unavailable

20

BOLT, FLANGE

90105-10274-00

Unavailable

21

WASHER, PLATE

90201-10057-00

Unavailable

22

NUT, CASTLE

90171-10003-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable
