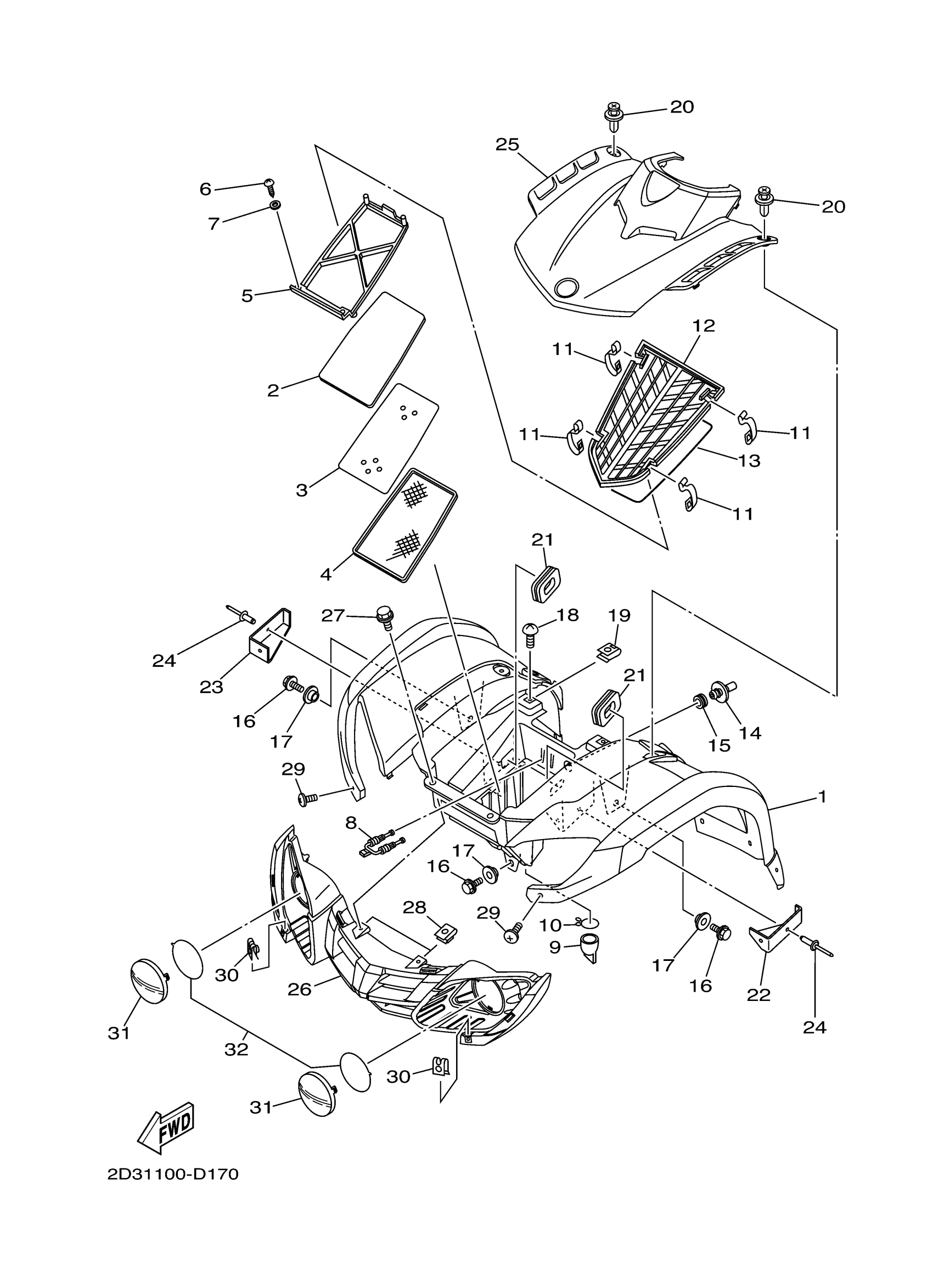

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
2D3-W2151-00-00
Unavailable
1
FRONT FENDER COMP.
2D3-W2151-10-00
Unavailable
3
PLATE
5TH-14477-00-00
Unavailable
4
PLATE, ELEMENT
55X-14472-01-00
Unavailable
5
GUIDE
55X-14458-00-00
Unavailable
6
SCREW, TAPPING
97780-40116-00
Unavailable
8
HOOK
55X-14436-00-00
Unavailable
12
CAP, CLEANER CASE 1
5TH-14412-00-00
Unavailable
14
PIPE
2D3-14419-00-00
Unavailable
15
GROMMET
31A-14435-01-00
Unavailable
16
BOLT, WITH WASHER
90119-06137-00
Unavailable
17
COLLAR
90387-06202-00
Unavailable
18
SCREW
90149-06021-00
Unavailable
19
NUT, SPRING(4ES)
90183-06069-00
Unavailable
20
RIVET(4JH)
90269-07076-00
Unavailable
21
DUCT
2HX-14437-01-00
Unavailable
22
CAP 1
2D3-23741-00-00
Unavailable
23
CAP 2
2D3-23742-00-00
Unavailable
24
RIVET, BLIND
90267-48024-00
Unavailable
25
PANEL, FRONT
2D3-23391-00-00
Unavailable
26
GRILLE, FRONT
2D3-28309-00-00
Unavailable
27
BOLT
90109-06172-00
Unavailable
28
NUT, SPRING
90183-060A7-00
Unavailable
29
SCREW, BINDING
90154-05021-00
Unavailable
30
NUT, SPRING
90183-050A7-00
Unavailable
31
LENS, HEADLIGHT
2D3-84121-00-00
Unavailable
32
GRAPHIC SET
2D3-8412B-00-00
Unavailable
