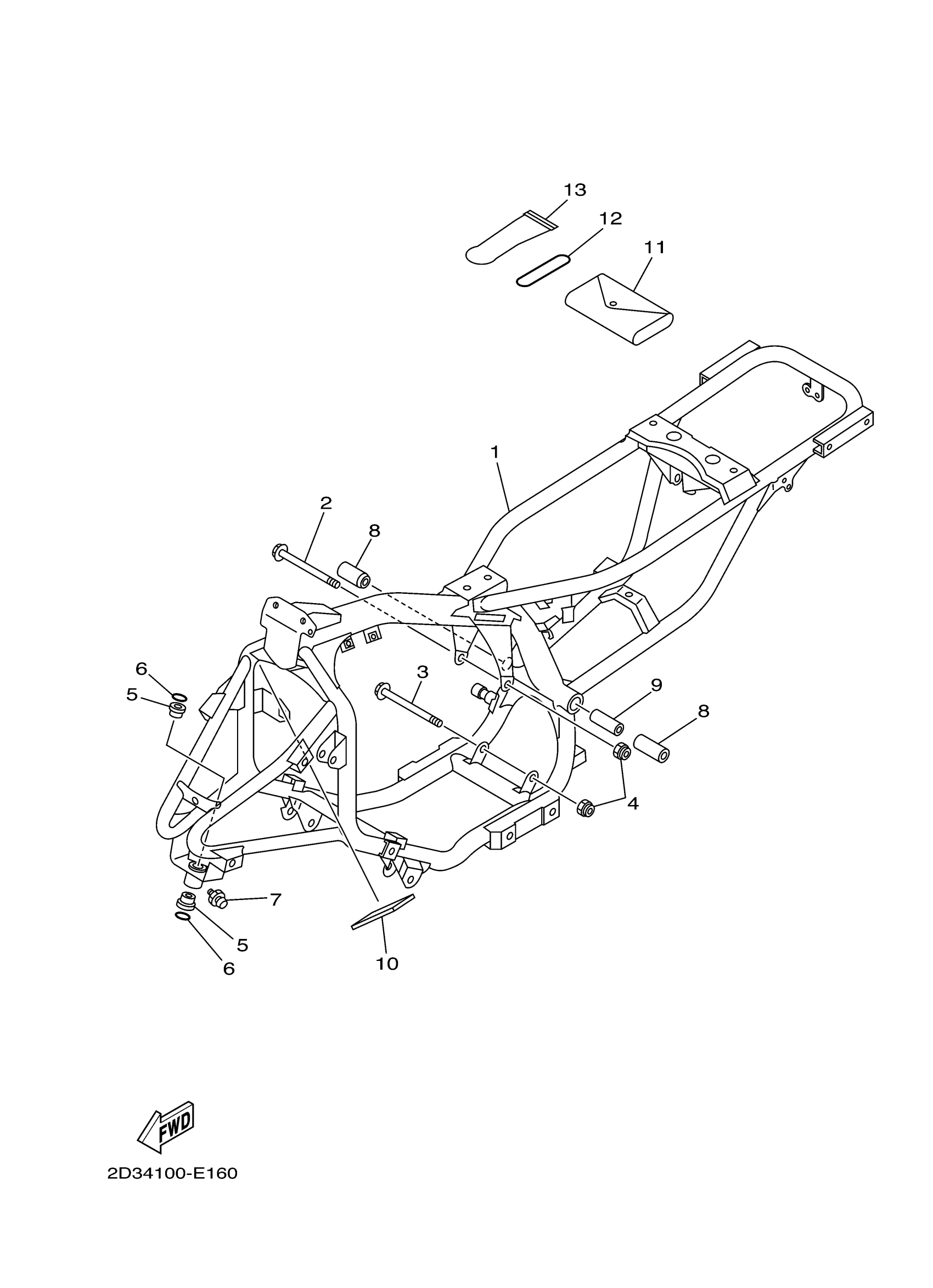

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2D3-21110-10-00

Unavailable

2

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

3

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

4

NUT, SELF-LOCKING

95602-08200-00

$3.20

5

BUSH, SOLID (J22)

90381-15040-00

$29.99

6

O-RING (22U)

93210-15566-00

$7.49

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

BUSH 1

3GB-22123-00-00

$24.99

9

PIPE

3GB-22155-00-00

Unavailable

10

SEAL

5TH-21268-01-00

$6.99

11

TOOL KIT

3GB-28100-01-00

$20.99

12

O-RING (17W)

93210-40407-00

$3.50

13

GAUGE, AIR

1NV-2811A-01-00

$57.99
