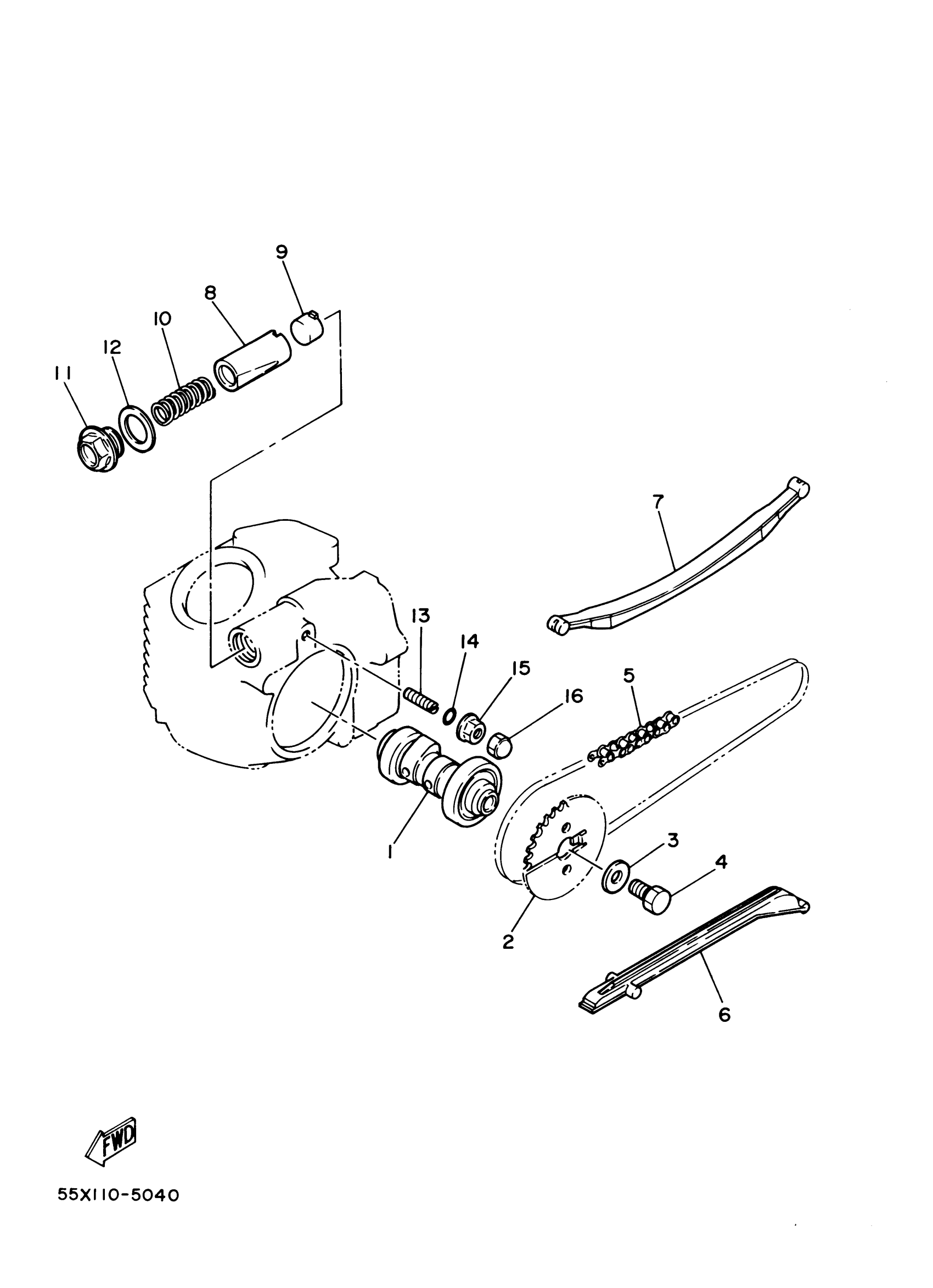

Yamaha YFM80GXL (GRIZZLY 80) 2D3A0 2008 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

55X-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

50M-12176-00-00

$20.00

WASHER, PLATE

90201-08048-00

$5.37

BOLT

90101-08055-00

$5.17

CHAIN(2FJ)

94580-25082-00

$18.88

GUIDE, STOPPER 1

22F-12231-02-00

Unavailable

GUIDE, STOPPER 2

22F-12241-01-00

Unavailable

ROD, CHAIN TENSIONER

22F-12217-01-00

Unavailable

PLUG, STRAIGHT (22F)

90334-14037-00

$6.56

SPRING, COMPRESSION (22F)

90501-10710-00

$5.29

PLUG, STRAIGHT SCREW (22F)

90340-18092-00

$9.71

WASHER, PLATE (22F)

90201-186F1-00

$6.12

BOLT SET 257163430000

90113-06009-00

Unavailable

O-RING (11M)

93210-07540-00

$5.39

Nut

90179-06054-00

Unavailable

NUT (J17)

95380-06800-00

Unavailable
