Description

Price

1

COLUMN, STEERING 2

4EM-23813-20-00

$138.99

2

PLUG, TAPER(2HR)

90336-28053-00

$10.49

3

HANDLE, HOLDER

164-23441-01-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

SPACER

2D3-23858-00-00

Unavailable

6

BOLT, FLANGE

95817-08055-00

$4.21

7

HOSE (L70)

90445-112E0-00

$8.49

8

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

9

OIL SEAL(1UY)

93112-31011-00

$9.49

10

BRACKET, STEERING LOWER

3GB-23868-00-00

Unavailable

11

BOLT, HEXAGON

97017-08060-00

Unavailable

12

WASHER, LOCK 1

1UY-23894-01-00

$7.99

13

COLLAR(85G)

90387-106T4-00

$14.99

14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

15

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

16

PIN, COTTER

91490-20025-00

Unavailable

17

ROD, TIE

3GB-23831-00-00

Unavailable

18

JOINT, UNIVERSAL 1

55X-23841-01-00

Unavailable

19

NUT (3WP1)

95317-10700-00

Unavailable

20

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

ROD, TIE

3GB-23831-00-00

Unavailable

23

JOINT, UNIVERSAL 1

55X-23841-01-00

Unavailable

24

NUT (3WP1)

95317-10700-00

Unavailable

25

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

26

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

27

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

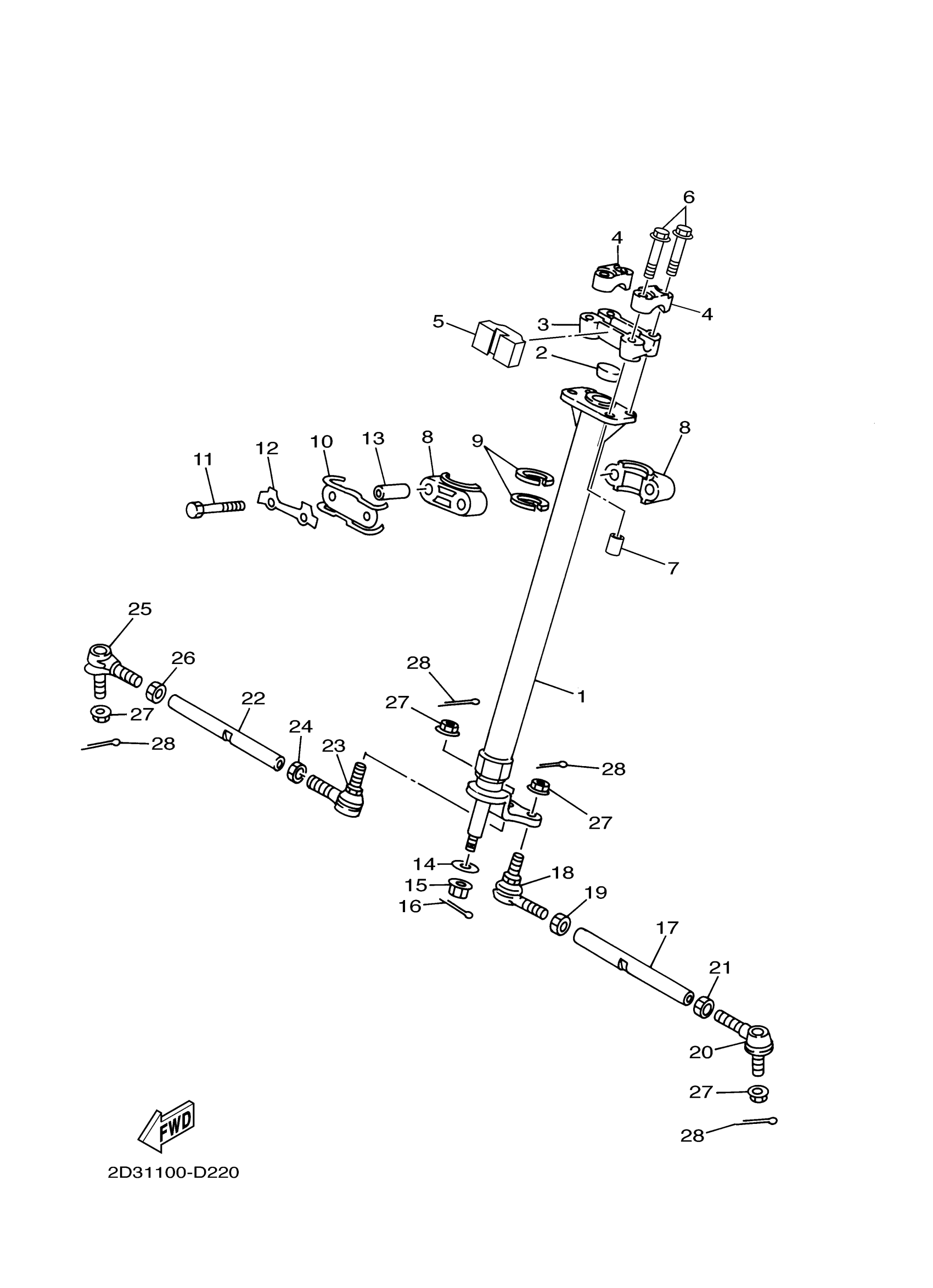

Yamaha YFM80GV (GRIZZLY 80) 2D34 2006 STEERING Diagram

COLUMN, STEERING 2

PLUG, TAPER(2HR)

HANDLE, HOLDER

HOLDER, HANDLE UPPER

SPACER

BOLT, FLANGE

HOSE (L70)

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

WASHER, LOCK 1

COLLAR(85G)

WASHER, PLATE (3L6)

NUT, SELF-LOCKING (8U7)

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

NUT (3WP1)

JOINT, UNIVERSAL 2

NUT, HEXAGON (8A5)

ROD, TIE

JOINT, UNIVERSAL 1

NUT (3WP1)

JOINT, UNIVERSAL 2

NUT, HEXAGON (8A5)

NUT, SELF-LOCKING (8U7)

PIN, COTTER
