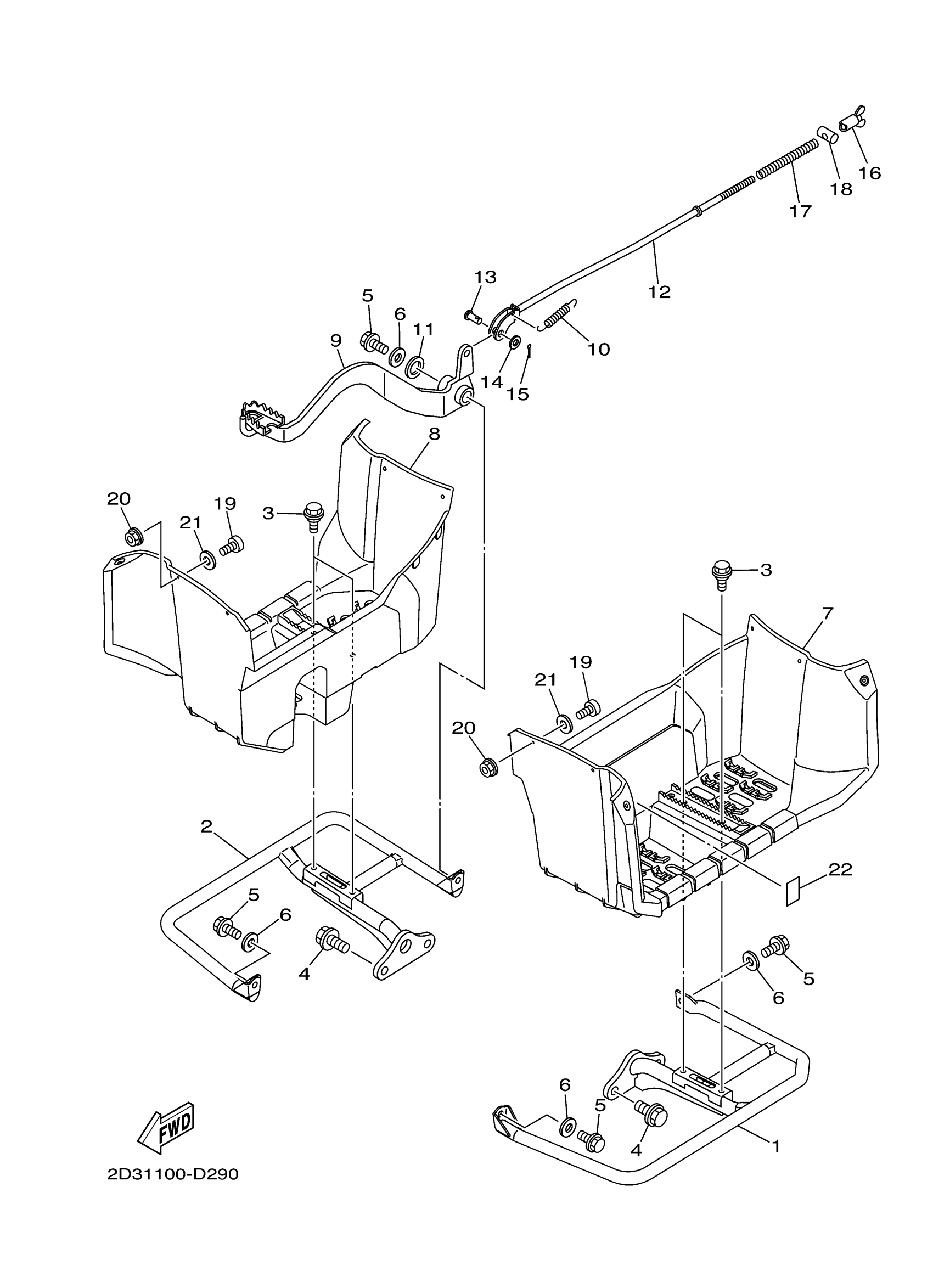

Yamaha YFM80GV (GRIZZLY 80) 2D34 2006 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

2D3-27411-00-00

Unavailable

2

FOOTREST 2

2D3-27421-00-00

Unavailable

3

BOLT(3KJ)

90109-063F1-00

$2.97

4

BOLT, FLANGE

95817-12020-00

Unavailable

5

BOLT, FLANGE

95027-08014-00

Unavailable

6

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

7

COVER 1

99999-03593-00

Unavailable

8

COVER 2

2D3-27463-00-00

Unavailable

9

PEDAL, BRAKE

2D3-27211-10-00

Unavailable

10

SPRING, TENSION (29U)

90506-16318-00

$10.49

11

WASHER, PLATE (3X3)

90201-15797-00

$9.49

12

ROD, BRAKE

3GB-27231-00-00

Unavailable

13

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

14

WASHER(6TA)

92907-06200-00

$8.49

15

PIN, COTTER (648)

91490-20015-00

$2.20

16

NUT, AJUSTING

20E-26343-00-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

SCREW, BINDING

98907-05016-00

Unavailable

20

NUT, NYLON

95707-05300-00

Unavailable

21

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

22

EMBLEM

4EM-15443-01-00

Unavailable
