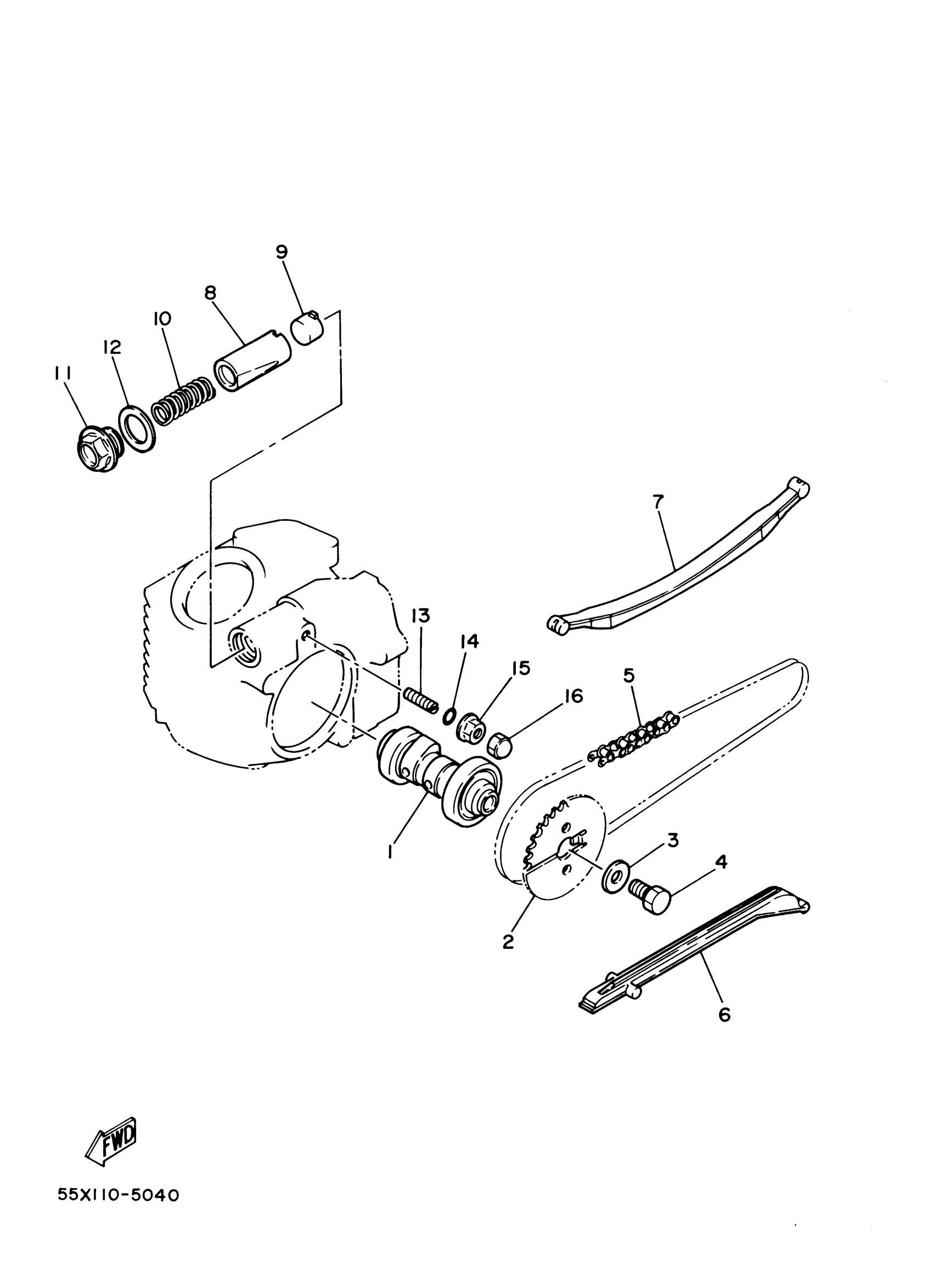

Yamaha YFM80GT (GRIZZLY 80) 2D31 2005 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

55X-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

50M-12176-00-00

$24.99

WASHER (853)

90201-08326-00

$8.49

BOLT, HEXAGON (22F)

90101-08590-00

$2.34

CHAIN(2FJ)

94580-25082-00

$25.99

GUIDE, STOPPER 1

22F-12231-02-00

$14.49

GUIDE, STOPPER 2

22F-12241-01-00

$23.99

ROD, CHAIN TENSIONER

22F-12217-01-00

Unavailable

PLUG, STRAIGHT (22F)

90334-14037-00

$9.49

SPRING, COMPRESSION (22F)

90501-10710-00

$8.49

PLUG, STRAIGHT SCREW (22F)

90340-18092-00

$12.49

WASHER, PLATE (22F)

90201-186F1-00

$10.49

BOLT SET 257163430000

90113-06009-00

Unavailable

O-RING (11M)

93210-07540-00

$7.49

NUT

90179-06387-00

Unavailable

NUT(4MY)

95307-06800-00

Unavailable
