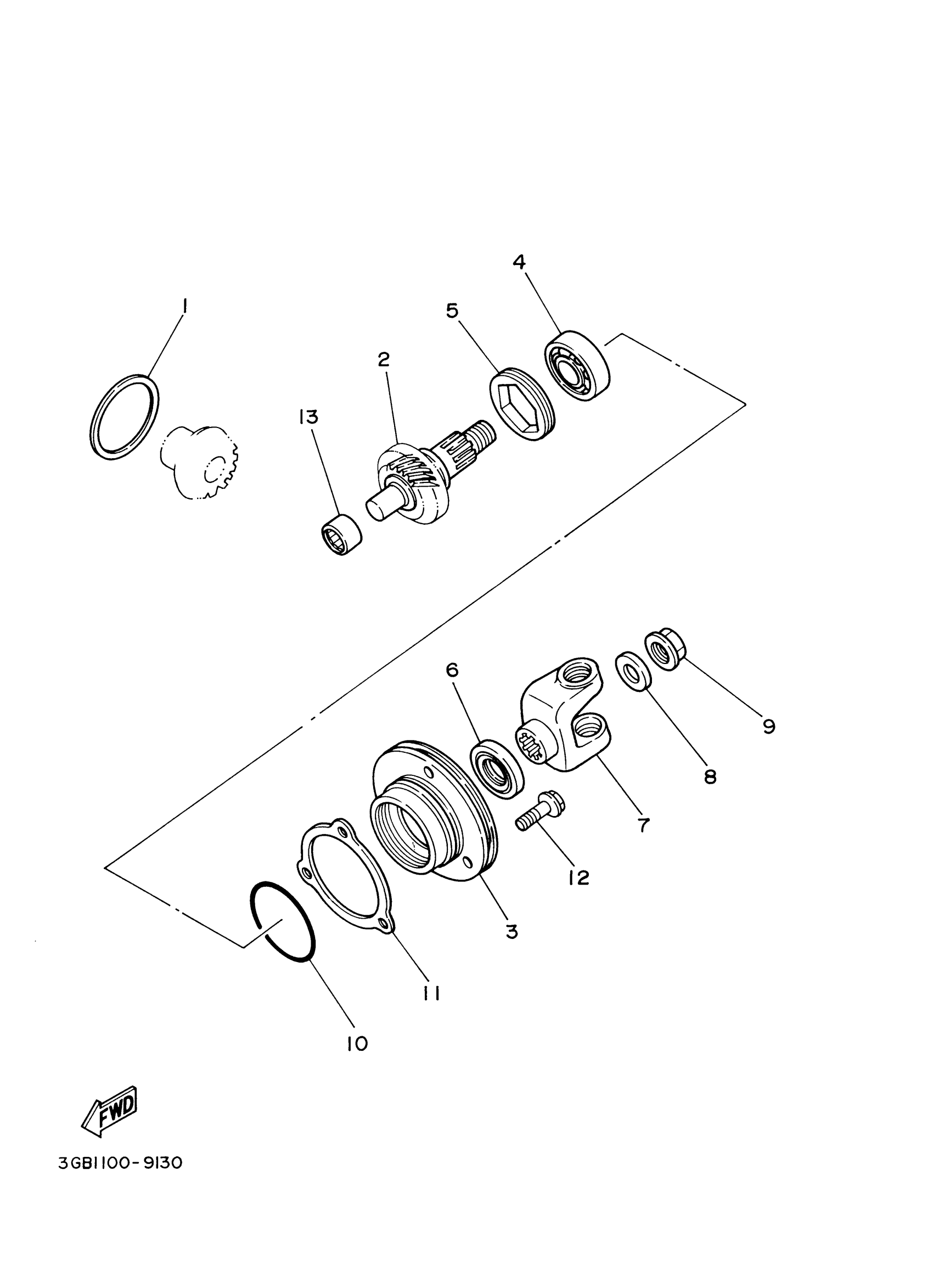

Yamaha YFM80GHX (GRIZZLY 80 HUNTER) 2D3C 2008 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

SHIM, THRUST

22F-17537-00-00

Unavailable

2

MIDDLE DRIVEN GEAR COMP.

3GB-17508-00-00

Unavailable

3

HOUSING, BEARING

22F-17551-00-00

Unavailable

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

NUT

90179-42480-00

Unavailable

6

OIL SEAL

93101-24110-00

Unavailable

7

YOKE, JOINT

22F-17556-01-00

Unavailable

8

WASHER, PLATE

90201-12027-00

$8.49

9

Nut

90179-12004-00

$7.49

10

O-RING (22F)

93210-50553-00

$8.49

11

SHIM PINION (0.15)

22F-17531-00-15

Unavailable

11

SHIM, PINION (0.30T)

22F-17531-00-30

Unavailable

11

SHIM PINION (0.50)

22F-17531-00-50

Unavailable

12

BOLT, FLANGE

95817-06020-00

$3.81

13

BEARING, CYLINDRICAL (22F)

93317-21236-00

$24.99
