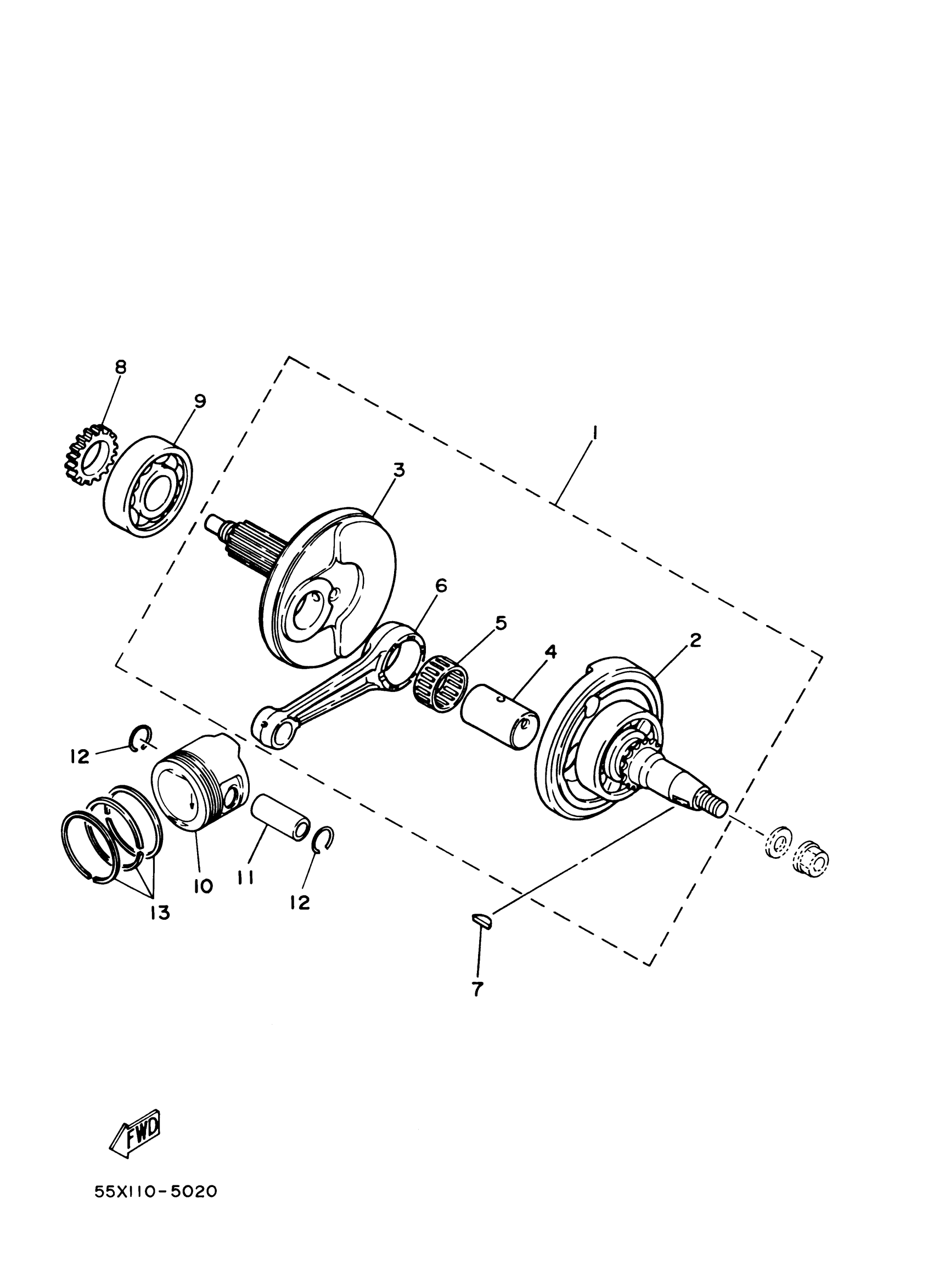

Yamaha YFM80GHX (GRIZZLY 80 HUNTER) 2D3C 2008 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
22K-11400-01-00
Unavailable
2
CRANK 1
22K-W1141-00-00
Unavailable
3
. CRANK 2
22K-11422-00-00
Unavailable
4
. PIN, CRANK 1
22F-11681-00-00
Unavailable
5
. BEARING
93311-32353-00
Unavailable
6
. ROD, CONNECTING
22K-11651-02-00
Unavailable
8
GEAR, PUMP DRIVE
46J-13324-00-00
Unavailable
10
PISTON (0.50MM O/S)
55X-11636-00-00
Unavailable
10
PISTON (1.00MM O/S)
55X-11638-00-00
Unavailable
13
PISTON RING SET (2ND O/S)
55X-11610-20-00
Unavailable
13
PISTON RING SET (4TH O/S)
55X-11610-40-00
Unavailable
