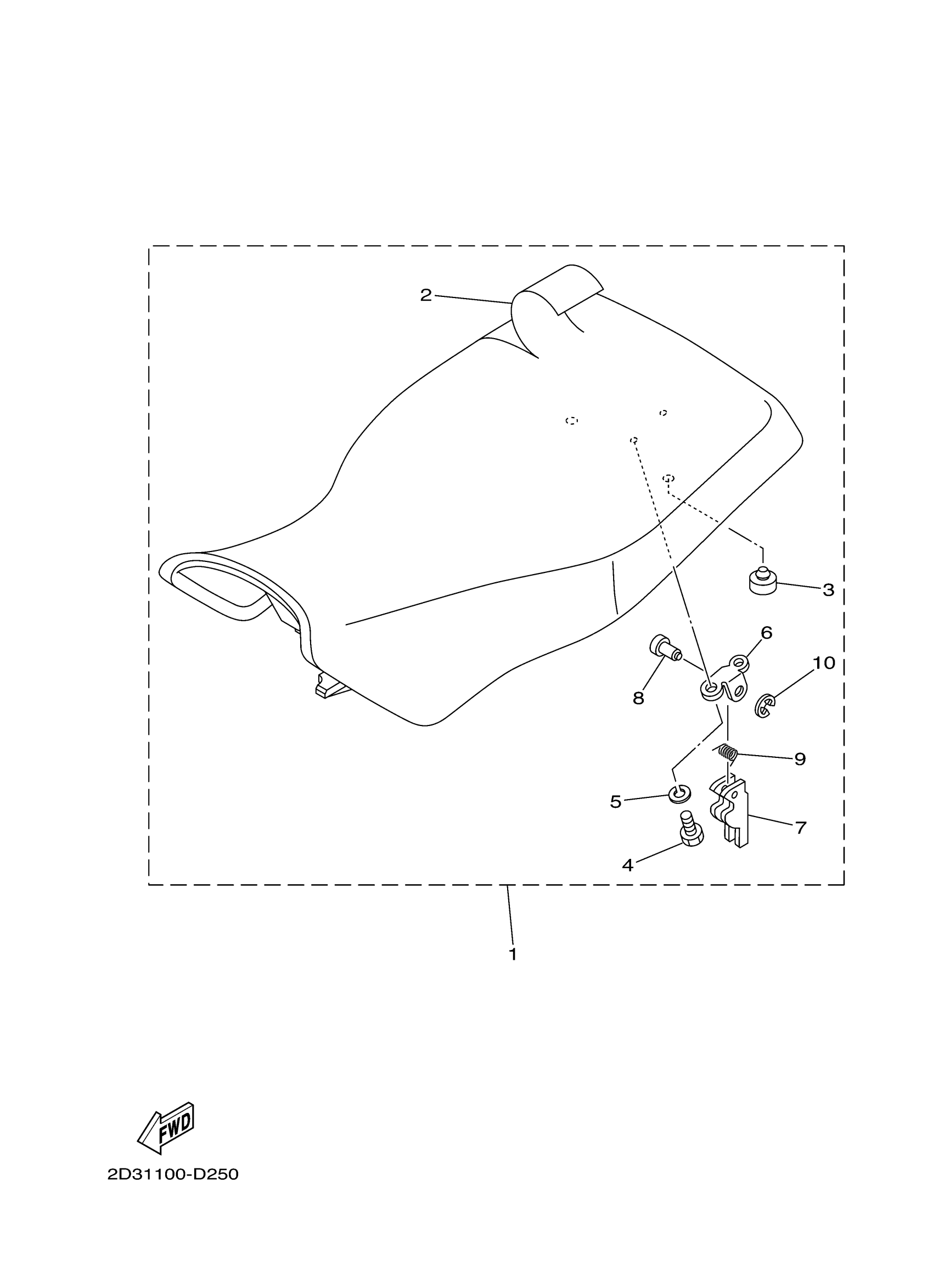

Yamaha YFM80GHW (GRIZZLY 80 HUNTER) 2D39 2007 SEAT Diagram

SINGLE SEAT ASSY

2D3-24710-01-00

Unavailable

. SEAT COVER COMP (YAMAHA BLACK) (PASTEL DEEP GREEN) (DARK PURPLISH BLUE SOLID N)

2D3-2470F-00-00

Unavailable

STOPPER, MAIN STAND

371-27114-00-00

$7.99

BOLT, HEXAGON

97017-06012-00

$3.76

WASHER, SPRING

92907-06100-00

$4.25

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

LEVER, SEAT

29U-24776-00-00

Unavailable

PIN

4K0-24774-A0-00

$6.99

SPRING, TORSION (24W)

90508-20454-00

Unavailable

CIRCLIP (EU0)

99080-04600-00

Unavailable
