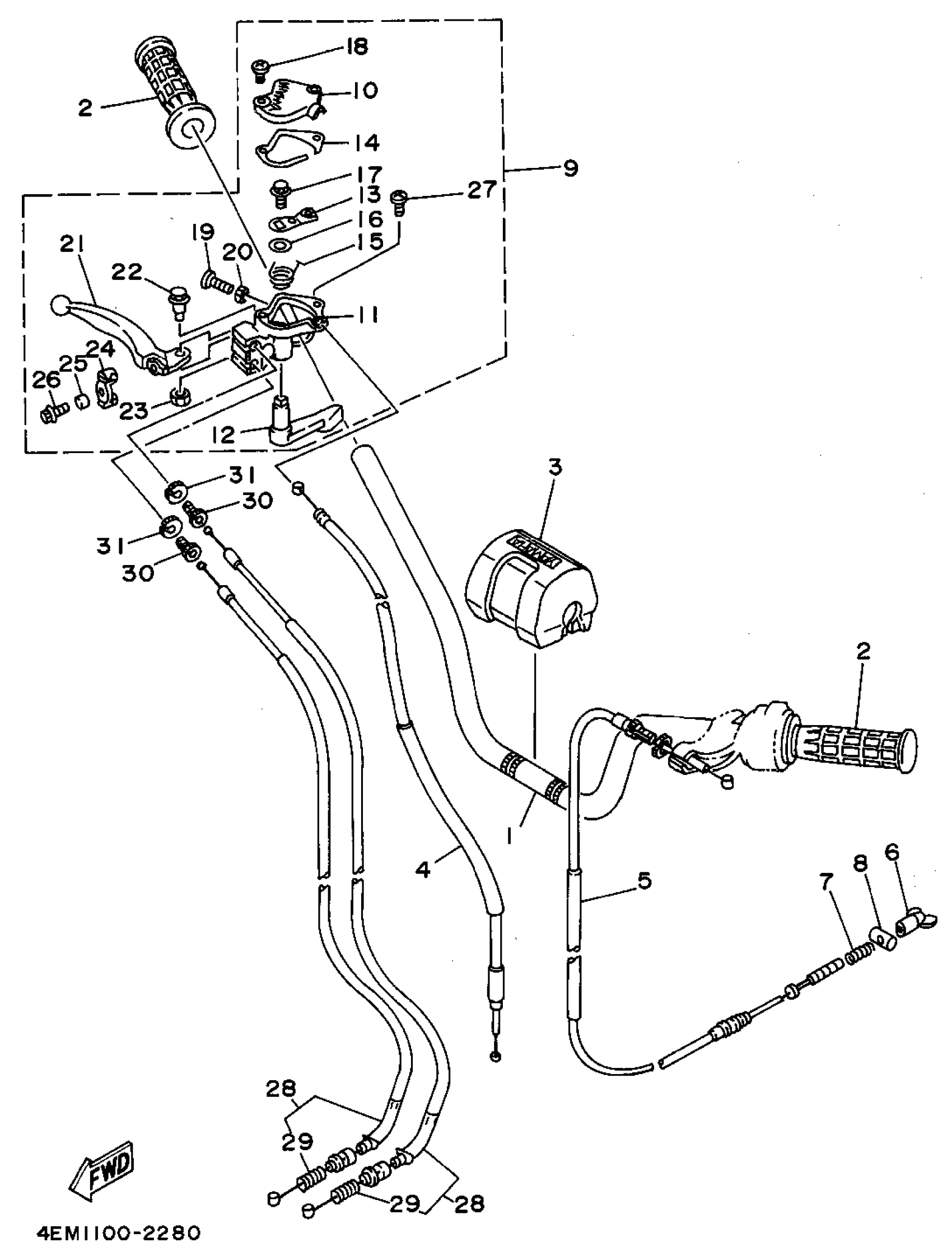

Yamaha YFM80G (BADGER) 1995 STEERING HANDLE - CABLE Diagram

#

Description
Price

1

HANDLEBAR

87A-23811-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

3GD-26124-01-00

Unavailable

4

WIRE, THROTTLE 1

3GB-26311-03-00

$19.99

5

CABLE, BRAKE

3GB-26341-01-00

$51.99

6

NUT, AJUSTING

20E-26343-00-00

$27.99

7

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

8

PIN 1562723700

90249-12008-00

$8.49

9

THROTTLE LEVER ASSY

3GB-26250-01-00

Unavailable

10

CAP, GEAR

3GB-2628F-00-00

Unavailable

11

BODY, THROTTLE

3GB-2625E-01-00

Unavailable

12

LEVER, THROTTLE

3GB-2625G-00-00

Unavailable

13

ARM, THROTTLE

3GB-2625H-00-00

$7.99

14

GASKET

3GB-2628G-02-00

$6.99

15

SPRING, TORSION(3GB)

90508-10775-00

$4.19

16

WASHER, PLATE(3GB)

90201-145M4-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

Unavailable

18

SCREW, PAN HEAD

98517-04016-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

Unavailable

20

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

21

LEVER 2

3GB-83922-00-00

Unavailable

22

BOLT(3GB)

90109-061F3-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

Unavailable

24

JOINT, CABLE

3GB-26347-00-00

Unavailable

25

COLLAR (3L6)

90387-06761-00

Unavailable

26

BOLT, FLANGE

95817-06016-00

Unavailable

27

SCREW, PAN

98517-06020-00

Unavailable

28

CABLE, BRAKE

3GB-26361-04-00

Unavailable

29

SPRING (2N3)

90501-08511-00

Unavailable

30

BOLT(2FJ)

90123-08106-00

Unavailable

31

NUT

90179-08030-00

Unavailable
