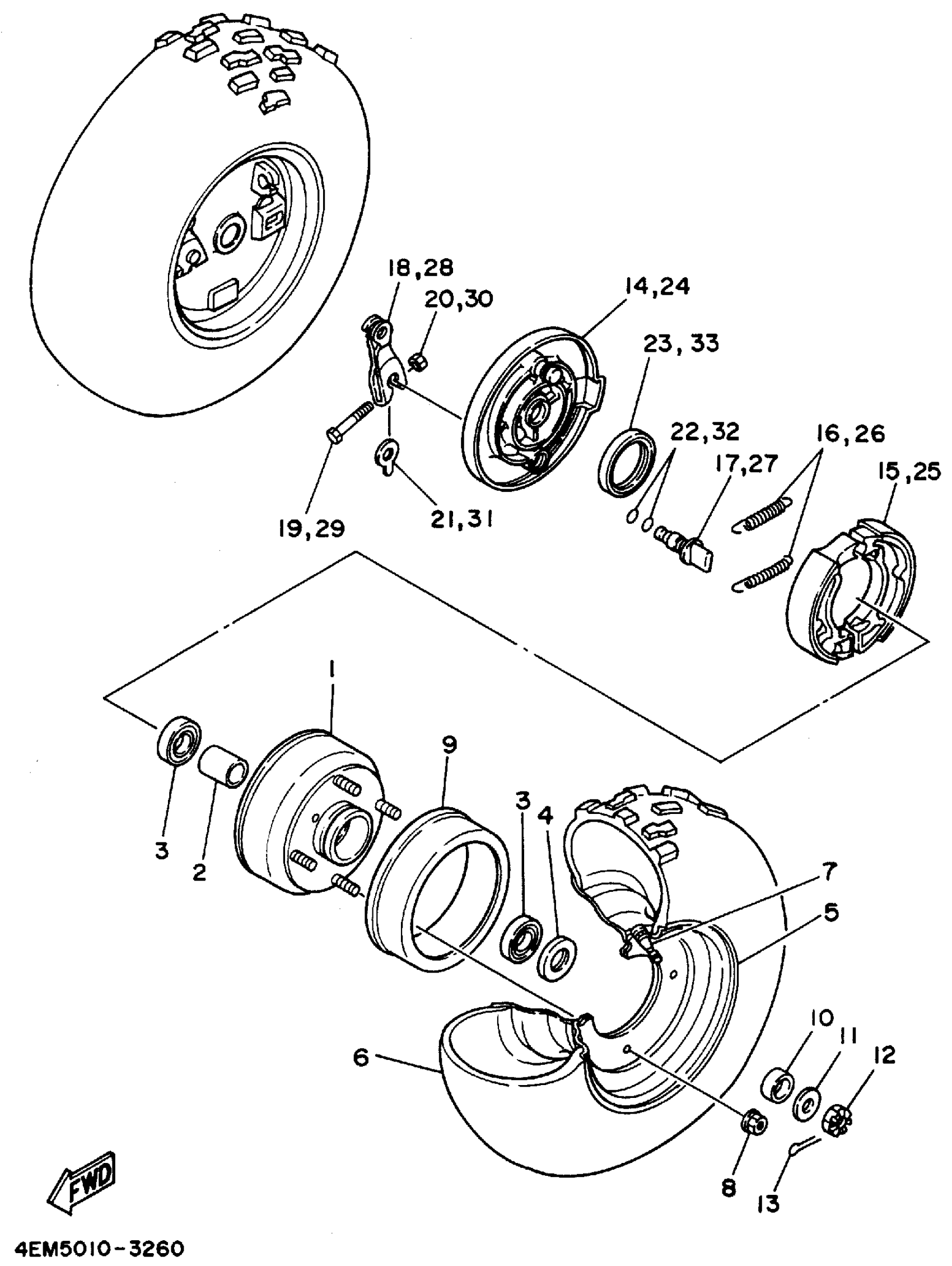

Yamaha YFM80F (BADGER) 1994 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2FJ-25111-00-00

Unavailable

2

SPACER, BEARING

2FJ-25117-00-00

Unavailable

3

BEARING(2JN)

93306-00315-00

$26.06

4

OIL SEAL (21V)

93102-23275-00

$11.61

5

WHEEL COMP.

2FJ-25180-00-35

Unavailable

6

TIRE

2D3-2510K-09-00

$98.03

7

VALVE, RIM(2GH)

93900-00030-00

$13.50

8

NUT, FLANGE

95704-08500-00

$5.76

9

RING 1

3GB-25185-00-00

Unavailable

10

COLLAR

90387-175R2-00

$9.86

11

WASHER PLATE 248181370000

90201-14220-00

$5.75

12

NUT, CASTLE(2UJ)

90171-14056-00

$9.87

13

PIN, COTTER

91490-30030-00

$6.88

14

PLATE, BRAKE SHOE

2FJ-25121-00-00

Unavailable

15

BRAKE SHOE KIT

4KN-W253E-11-00

$20.91

16

SPRING, TENSION

90506-15260-00

Unavailable

17

CAMSHAFT

3GB-25151-00-00

Unavailable

18

LEVER, CAMSHAFT 1

2FJ-25155-00-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

$4.11

21

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

22

O-RING(3LD)

93210-12790-00

Unavailable

23

OIL SEAL(3BC)

93106-40027-00

Unavailable

24

PLATE, BRAKE SHOE 2

2FJ-25169-00-00

Unavailable

25

BRAKE SHOE KIT

4KN-W253E-11-00

$20.91

26

SPRING, TENSION

90506-15260-00

Unavailable

27

CAMSHAFT

3GB-25151-00-00

Unavailable

28

LEVER, CAMSHAFT 2

2FJ-25156-00-00

Unavailable

29

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

$4.11

31

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

32

O-RING(3LD)

93210-12790-00

Unavailable

33

OIL SEAL(3BC)

93106-40027-00

Unavailable
