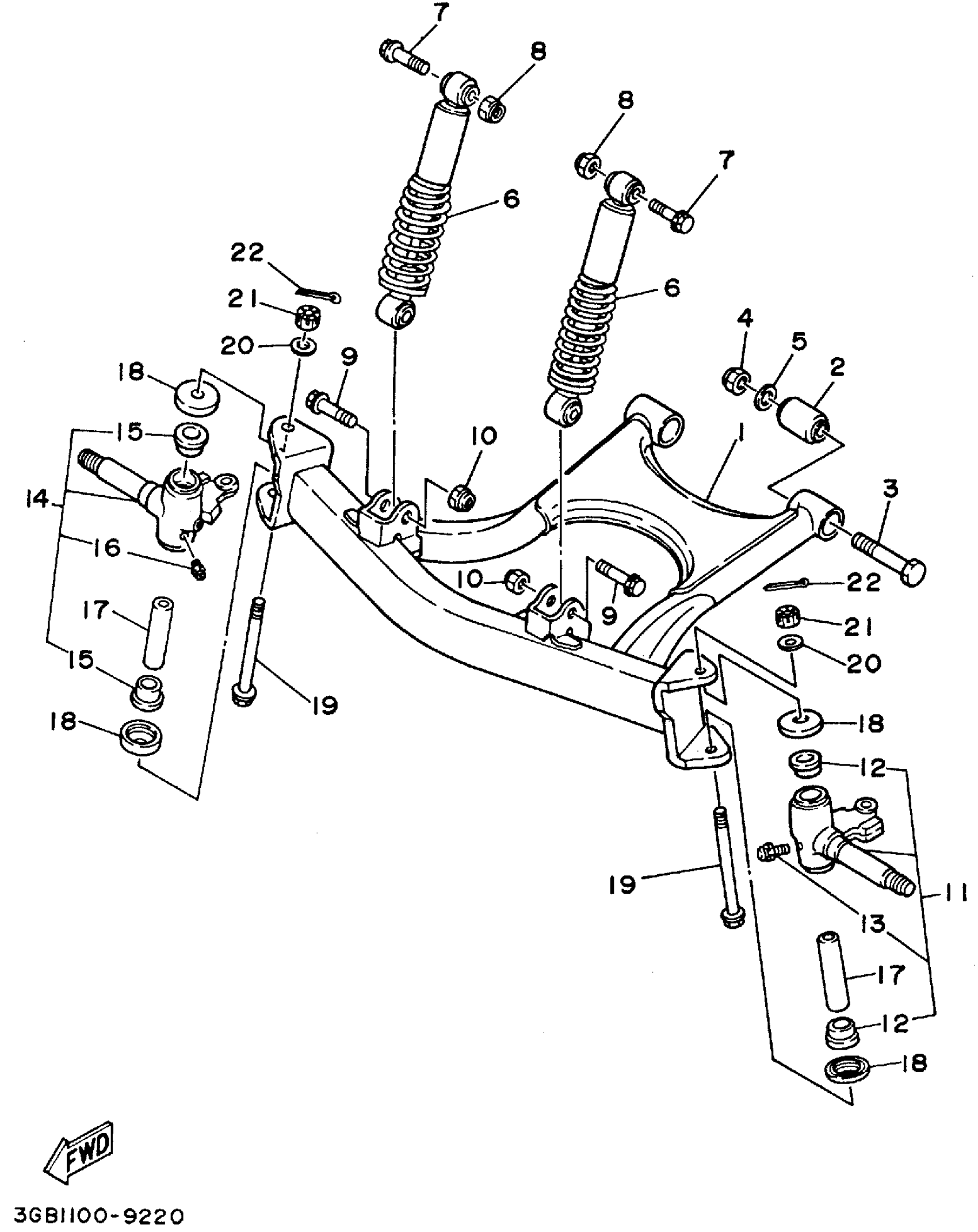

Yamaha YFM80F (BADGER) 1994 FRONT SUSPENSION - WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP.(LEFT)

3GB-23570-00-33

$263.05

2

BUSHING,REAR ARM

307-22123-00-00

$17.03

3

BOLT (4X7)

90101-12498-00

$12.45

4

NUT, SELF-LOCKING(1KH)

90185-12134-00

$9.43

5

WASHER, PLATE (5K7)

90201-124E4-00

$5.99

6

SHOCK ABSORBER ASSY

2HX-23350-00-00

Unavailable

7

BOLT, WASHER BASED(3YR)

90105-10669-00

Unavailable

8

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

9

BOLT, WASHER BASED(2HX)

90105-12460-00

$7.11

10

NUT, SELF-LOCKING(1KH)

90185-12134-00

$9.43

11

STEERING KNUCKLE ASSY (LEFT)

3GB-23501-10-00

Unavailable

12

BUSH, SOLID(2NL)

90381-17067-00

$9.25

13

NIPPLE, GREASE

93700-06M03-00

$7.40

14

STEERING KNUCKLE ASSY (RIGHT)

3GB-23502-10-00

Unavailable

15

BUSH, SOLID(2NL)

90381-17067-00

$9.25

16

NIPPLE, GREASE

93700-06M03-00

$7.40

17

SPACER

3GB-23448-00-00

Unavailable

18

COVER, THRUST 1

3JN-23517-00-00

Unavailable

19

BOLT(55X)

90109-104A8-00

Unavailable

20

WASHER PLATE (3L6)

90201-08759-00

Unavailable

21

NUT 3532518200

90171-10004-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable
