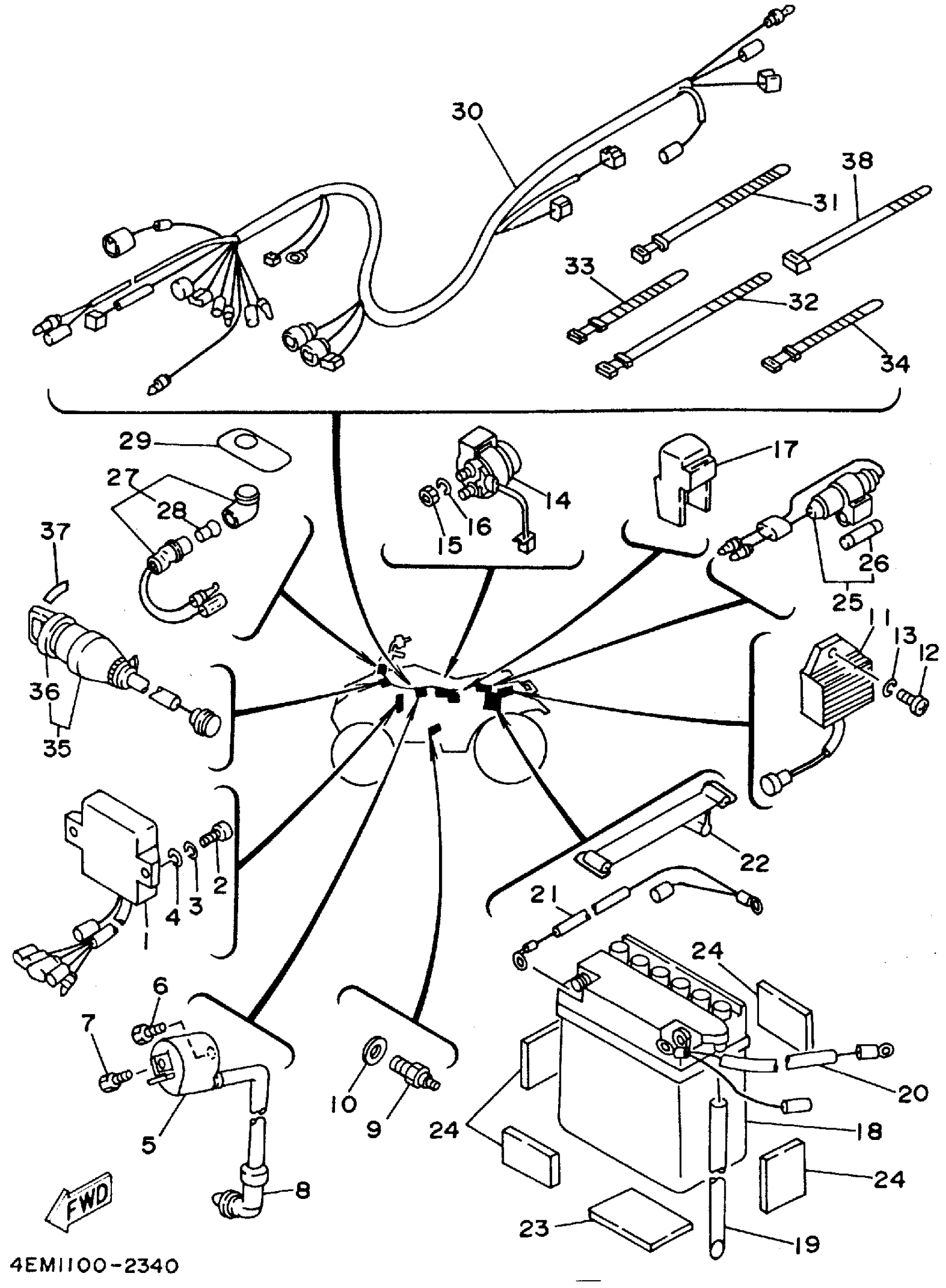

Yamaha YFM80F (BADGER) 1994 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
4EM-85540-00-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
11
RECTIFIER & REGULATOR ASSEMBLY
3GB-81960-00-00
Unavailable
12
SCREW, PAN HEAD
98580-06016-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
RELAY ASSY
12R-81950-02-00
Unavailable
18
BAT 12N7-3B YU
12N-73B00-00-00
Unavailable
19
HOSE (L1500)
90445-084J0-00
Unavailable
20
WIRE, PLUS LEAD
55X-82115-01-00
Unavailable
21
WIRE, MINUS LEAD
3GB-82116-00-00
Unavailable
22
BAND, BATTERY
4J2-82131-01-00
Unavailable
23
SEAT, BATTERY
55X-82122-00-00
Unavailable
24
DAMPER 1
1UY-21638-00-00
Unavailable
25
FUSE HOLDER ASSY
3GB-82150-00-00
Unavailable
26
FUSE (12V 5A)
5G2-82151-00-00
Unavailable
27
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
28
BULB (12V-3.4W)
123-83516-21-00
Unavailable
29
LABEL
4EM-83585-10-00
Unavailable
30
WIRE HARNESS ASSEMBLY
4EM-82590-00-00
Unavailable
31
BAND, SWITCH CORD
437-83936-11-00
Unavailable
32
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
33
BAND, SWITCH CORD
437-83936-01-00
Unavailable
34
BAND, SWITCH CORD
437-83936-01-00
Unavailable
35
MAIN SWITCH ASSY
2FJ-82510-09-00
Unavailable
36
CAP, KEY
3HN-82579-00-00
Unavailable
37
LABEL
29U-83585-10-00
Unavailable
38
CLAMP
1UY-82591-00-00
Unavailable
