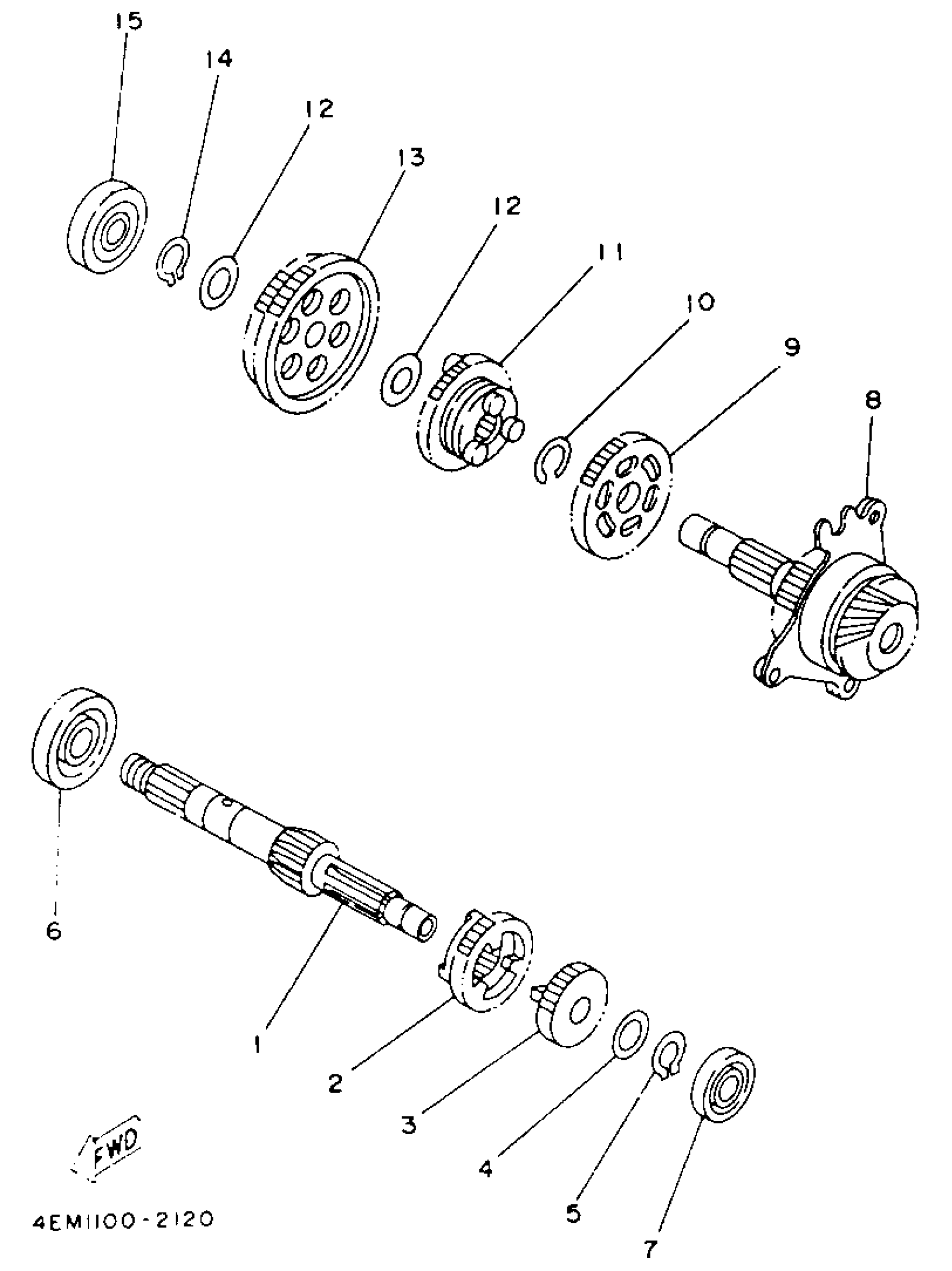

Yamaha YFM80E (BADGER) 1993 TRANSMISSION Diagram

AXLE, MAIN

2HX-17411-01-00

Unavailable

GEAR, 3RD PINION (22T)

55X-17131-00-00

Unavailable

GEAR, 2ND PINION

2HX-17121-00-00

$23.99

WASHER, PLATE (10X)

90201-124F8-00

$9.49

CIRCLIP(10Y)

99009-12400-00

$3.59

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

DRIVE AXLE ASSY

3GB-17402-00-00

Unavailable

GEAR, 3RD WHEEL (31T)

55X-17231-00-00

Unavailable

CIRCLIP (4V0)

93440-16089-00

$7.49

GEAR, 4TH WHEEL (27T)

55X-17241-00-00

Unavailable

WASHER, PLATE

90201-13013-00

$8.49

GEAR, 1ST WHEEL

3GB-17211-00-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.59

BRG.

93306-30101-00

$36.99
