Description

Price

1

COLUMN, STEERING 2

4EM-23813-20-00

$138.99

2

PLUG, TAPER(2HR)

90336-28053-00

$10.49

3

HANDLE, HOLDER

164-23441-01-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08055-00

$4.21

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

3GB-23868-00-00

Unavailable

9

BOLT (663)

97013-08060-00

$4.41

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

WASHER, PLATE (3L6)

90201-10774-00

$9.49

13

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

14

PIN, COTTER

91490-20025-00

$1.99

15

ROD, TIE

3GB-23831-00-00

Unavailable

16

JOINT, UNIVERSAL 1

55X-23841-01-00

Unavailable

17

NUT (682)

95380-10700-00

Unavailable

18

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

19

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

20

ROD, TIE

3GB-23831-00-00

Unavailable

21

JOINT, UNIVERSAL 1

55X-23841-01-00

Unavailable

22

NUT (682)

95380-10700-00

Unavailable

23

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

24

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

25

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

26

PIN, COTTER

91490-20025-00

$1.99

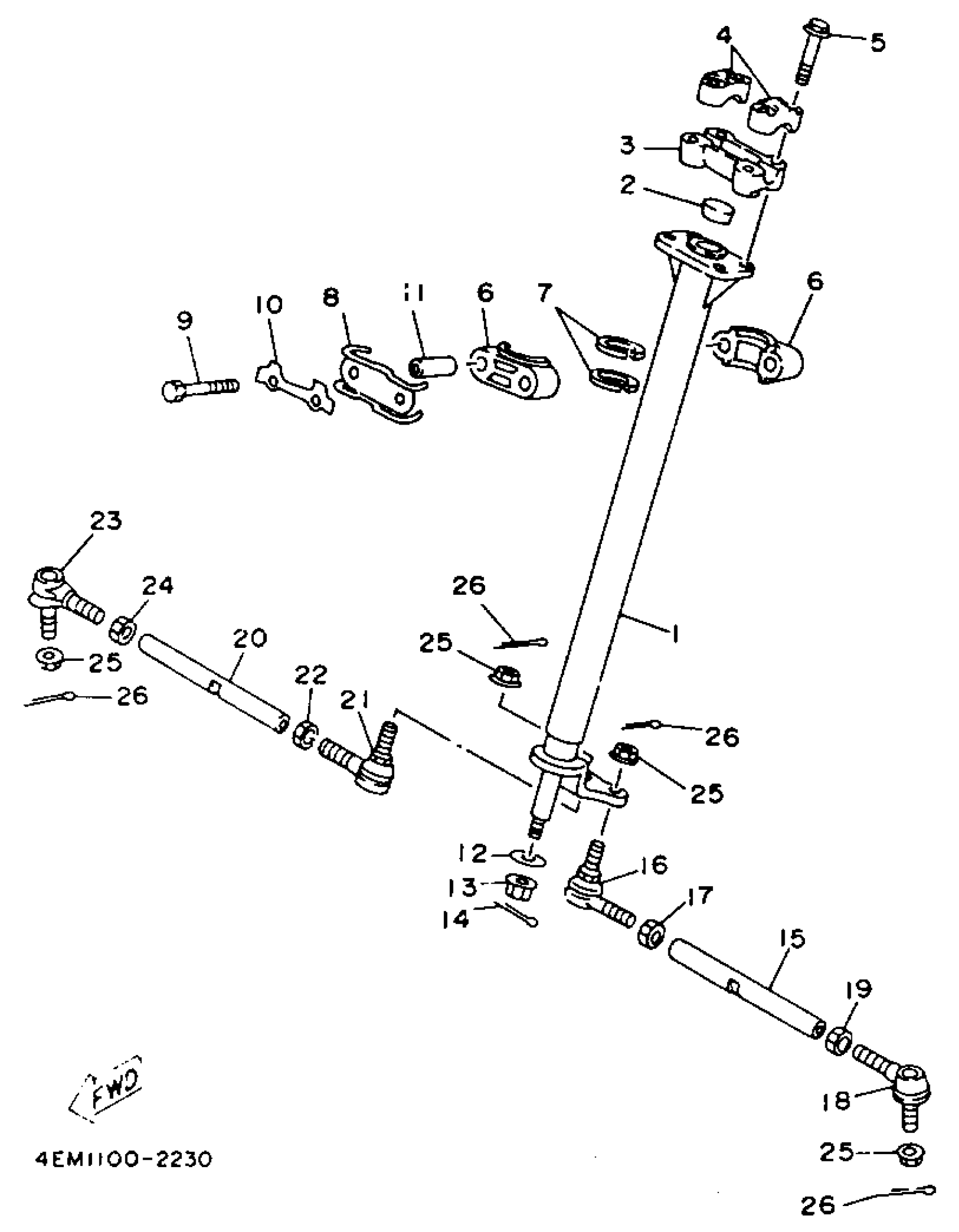

Yamaha YFM80E (BADGER) 1993 STEERING Diagram

COLUMN, STEERING 2

PLUG, TAPER(2HR)

HANDLE, HOLDER

HOLDER, HANDLE UPPER

BOLT, FLANGE

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT (663)

WASHER, LOCK 1

COLLAR(85G)

WASHER, PLATE (3L6)

NUT, SELF-LOCKING (8U7)

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

NUT (682)

JOINT, UNIVERSAL 2

NUT, HEXAGON (8A5)

ROD, TIE

JOINT, UNIVERSAL 1

NUT (682)

JOINT, UNIVERSAL 2

NUT, HEXAGON (8A5)

NUT, SELF-LOCKING (8U7)

PIN, COTTER
