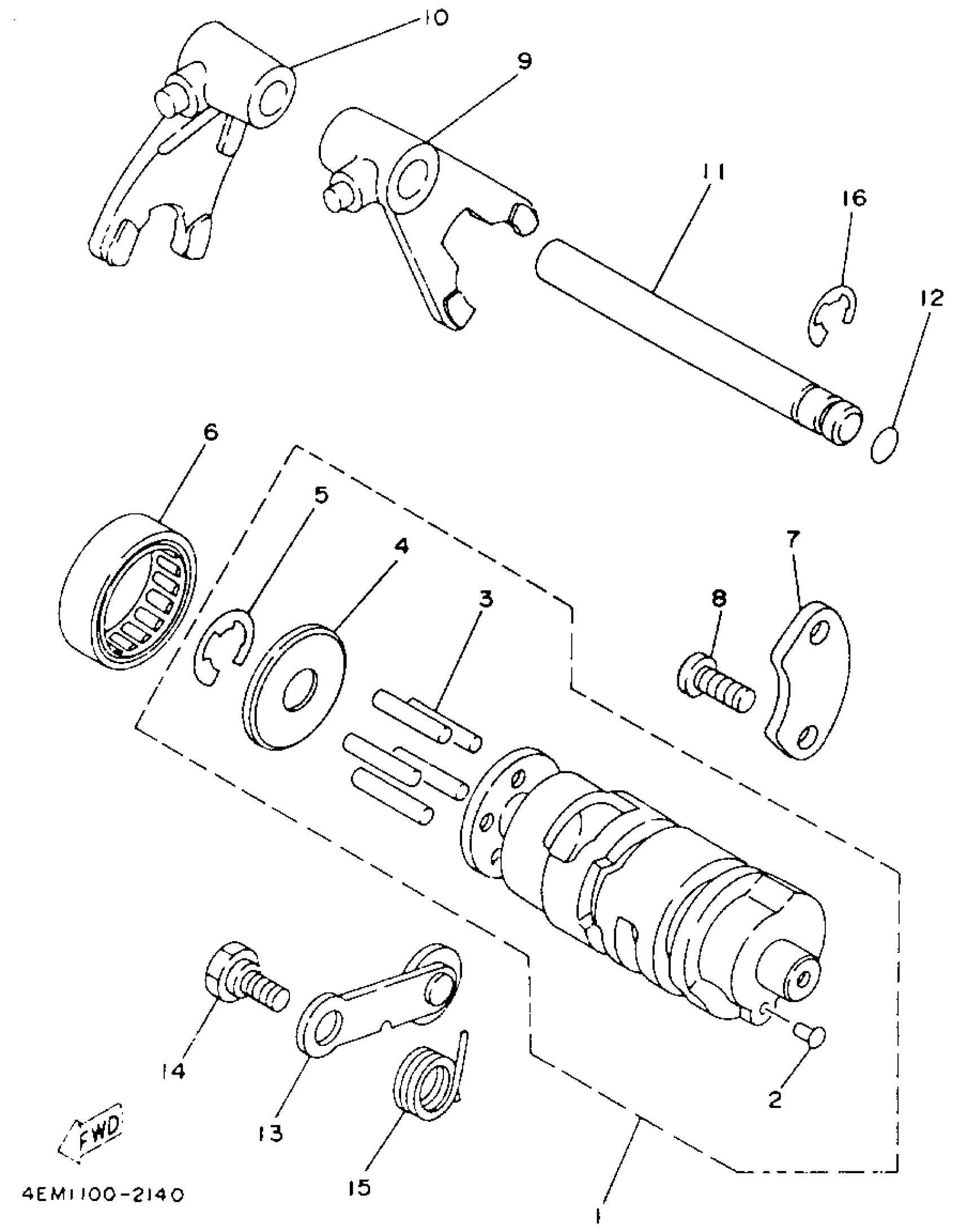

Yamaha YFM80E (BADGER) 1993 SHIFT CAM - FORK Diagram

SHIFT CAM ASSY

4EM-18540-00-00

Unavailable

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

PIN,DOWEL (620)

93604-22050-00

$8.49

PLATE, SIDE

296-18561-00-00

$6.99

CIRCLIP(J51)

99080-09600-00

$2.55

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

$34.99

PLATE, STOPPER 2

22F-18562-01-00

Unavailable

SCREW, PAN

98507-06014-00

$8.49

FORK, SHIFT 1

2MK-18511-00-00

Unavailable

FORK, SHIFT 2

29F-18512-00-00

Unavailable

BAR, SHIFT FORK GUIDE 1

22F-18531-00-00

Unavailable

O-RING (11M)

93210-07540-00

$7.49

STOPPER LEVER ASSY

29F-18140-00-00

Unavailable

BOLT

90109-06239-00

$7.49

SPRING, TORSION (22F)

90508-20576-00

Unavailable

CIRCLIP (137)

93430-08007-00

Unavailable
