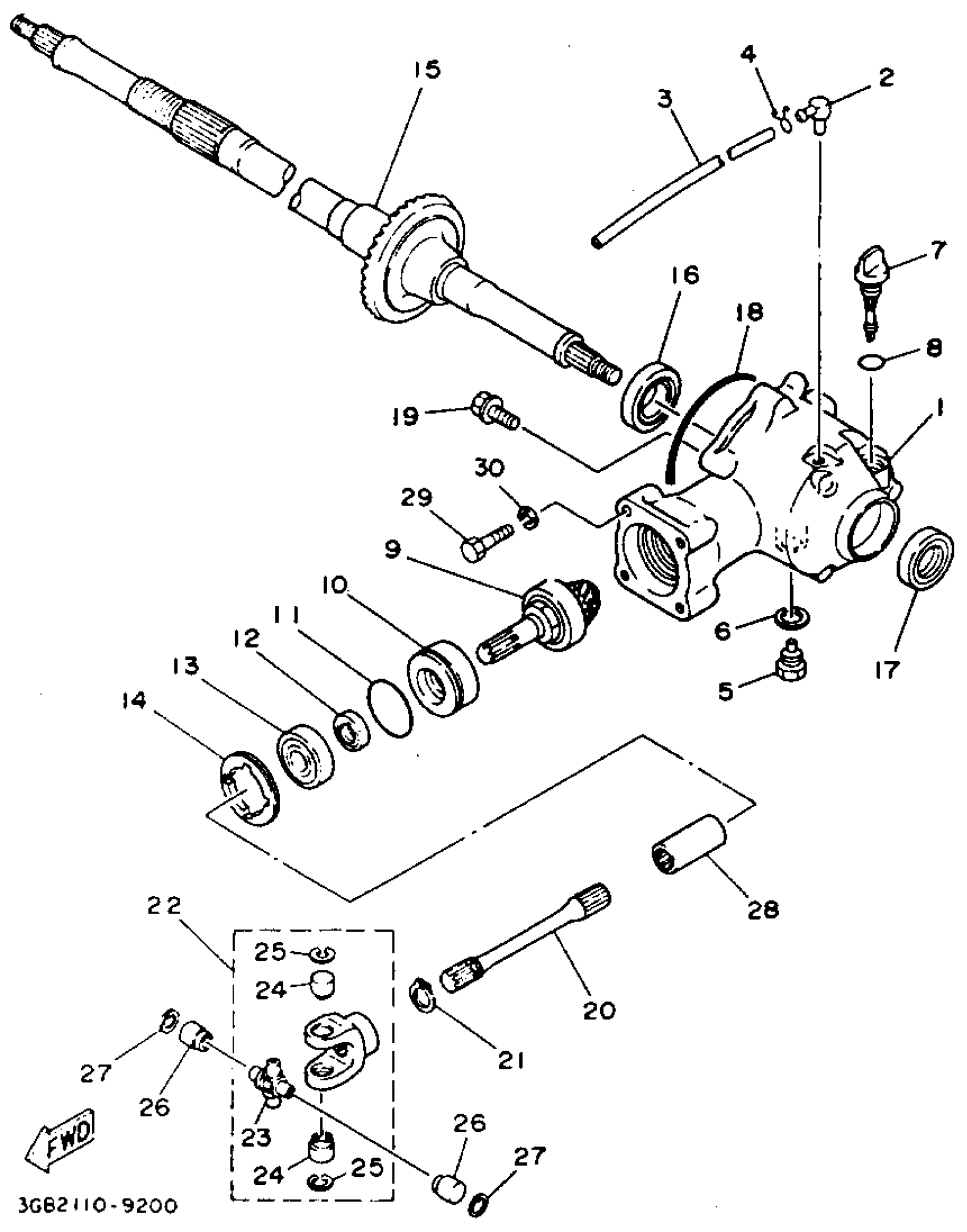

Yamaha YFM80E (BADGER) 1993 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING, DRIVE SHAFT

3GB-46151-00-00

Unavailable

2

BREATHER

5UG-15371-00-00

$40.99

3

HOSE (L1700)

90445-070G6-00

$40.99

4

CLIP (1J7)

90467-07029-00

$2.39

5

PLUG, STRAIGHT SCREW

90340-14004-00

$16.99

6

GASKET

214-11198-01-00

$3.17

7

PLUG, OIL LEVEL

3GB-15362-00-00

$29.99

8

O-RING (26H)

93210-14579-00

$7.49

9

DRIVE PINION COMP.

3GB-46120-00-00

$273.99

10

SPACER

90560-23355-00

Unavailable

11

O-RING(1EY)

93210-43713-00

$7.49

12

OIL SEAL (7X9)

93102-17271-00

$11.49

13

BEARING(4HM)

93306-30317-00

$39.99

14

NUT(52G)

90179-55464-00

Unavailable

15

RING GEAR COMP.

3GB-46110-20-00

Unavailable

16

BEARING(55X)

93306-07801-00

Unavailable

17

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

18

O-RING

93211-066A9-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

SHAFT, DRIVE

3GB-46172-01-00

Unavailable

21

CIRCLIP(1EY)

99009-17400-00

Unavailable

22

. CROSS JOINT COMP

2HX-46180-00-00

Unavailable

23

. SPIDER

22F-46187-00-00

Unavailable

24

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

25

CIRCLIP(24H)

99009-17500-00

Unavailable

26

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

27

CIRCLIP(24H)

99009-17500-00

Unavailable

28

COUPLING, GEAR

22F-46123-01-00

Unavailable

29

BOLT, HEXAGON (3L6)

90101-08461-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
