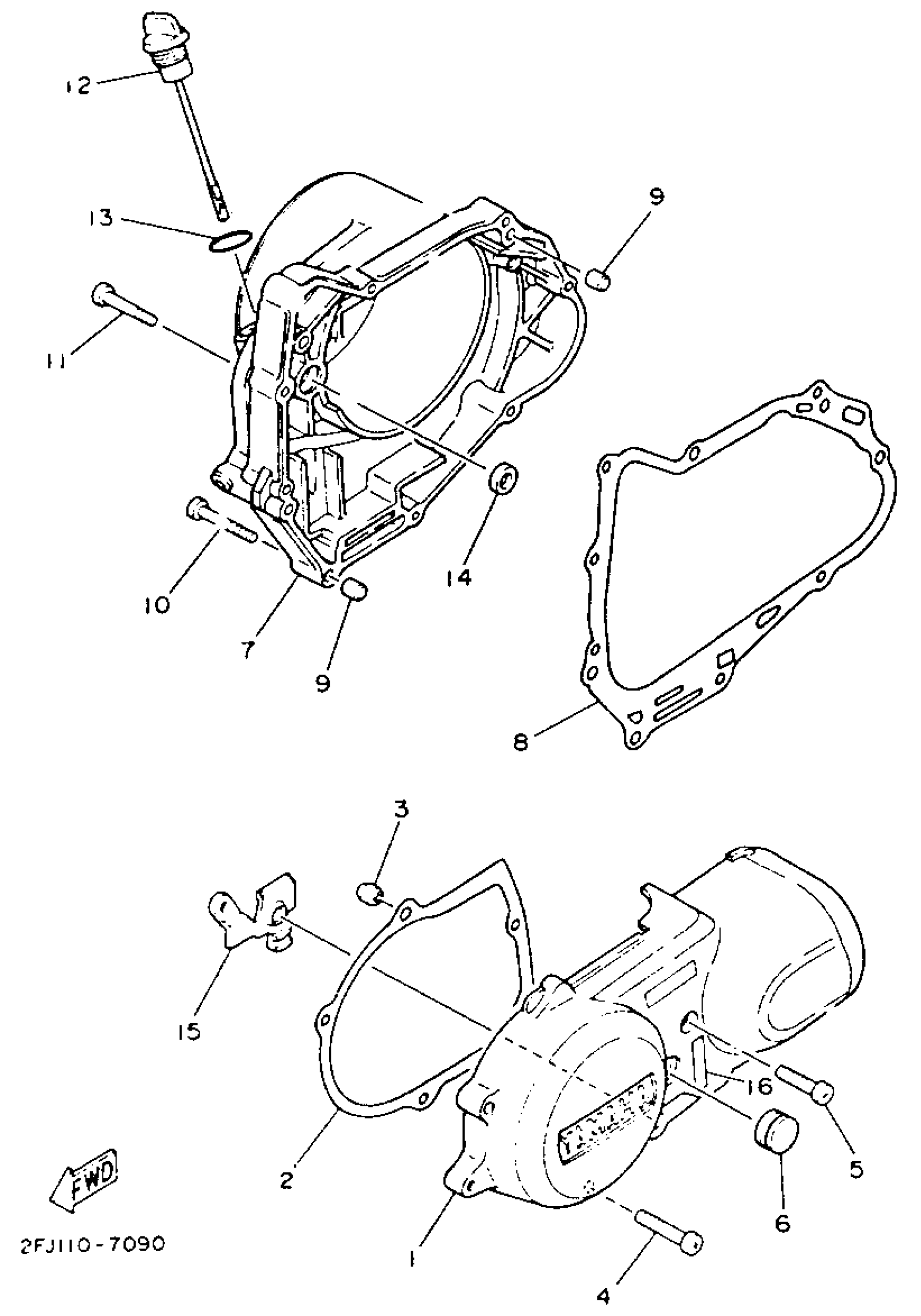

Yamaha YFM80E (BADGER) 1993 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

22F-15411-01-00

Unavailable

GASKET, CRANKCASE COVER 1

3GB-15451-00-00

$32.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

SCREW PAN HEAD

98580-06040-00

$8.49

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

COVER, CAP

22F-15417-00-00

Unavailable

COVER, CRANKCASE 2

2FJ-15421-00-00

Unavailable

GASKET, CRANKCASE COVER 2

3GB-15461-00-00

$21.99

PIN, DOWEL(3BM)

99530-10120-00

$3.28

SCREW PAN HEAD

98580-06545-00

$5.60

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

PLUG, OIL LEVEL

55X-15362-10-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable

OIL SEAL(2FJ)

93101-10142-00

$8.49

WASHER(55X)

90209-11269-00

$29.99

EMBLEM

4EM-15443-01-00

Unavailable
