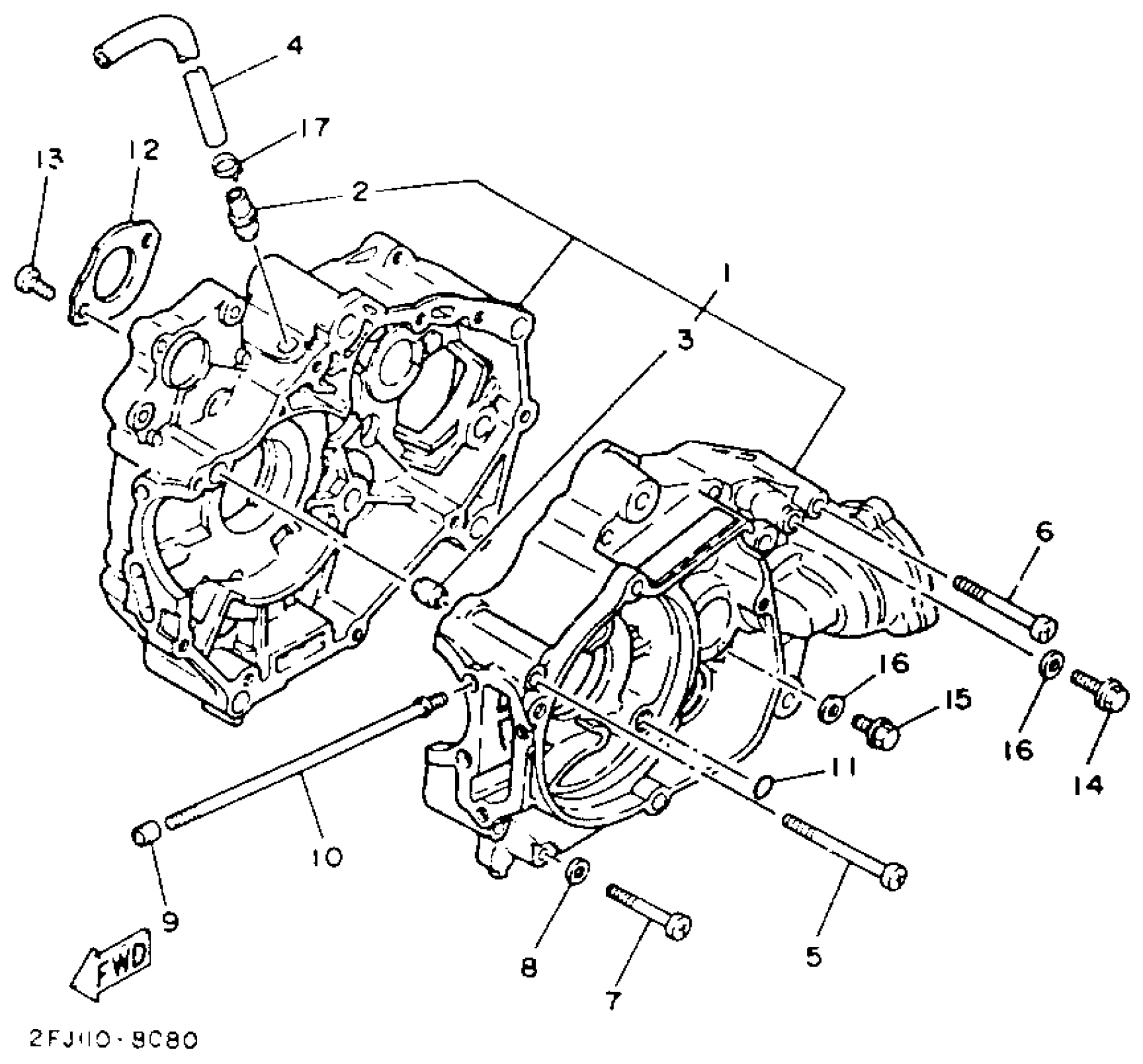

Yamaha YFM80E (BADGER) 1993 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2FJ-15100-01-00
Unavailable
2
PIPE, BREATHER 2
59V-11167-00-00
Unavailable
4
HOSE (L700)
90445-121F6-00
Unavailable
6
SCREW, BIND (JH1)
98580-06560-00
Unavailable
8
GASKET 256113960000
90430-06014-00
Unavailable
12
PLATE, BEARING COVER
22F-15383-01-00
Unavailable
13
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
16
GASKET (4V2)
90430-06166-00
Unavailable
17
CLIP(3YX)
90467-13133-00
Unavailable
