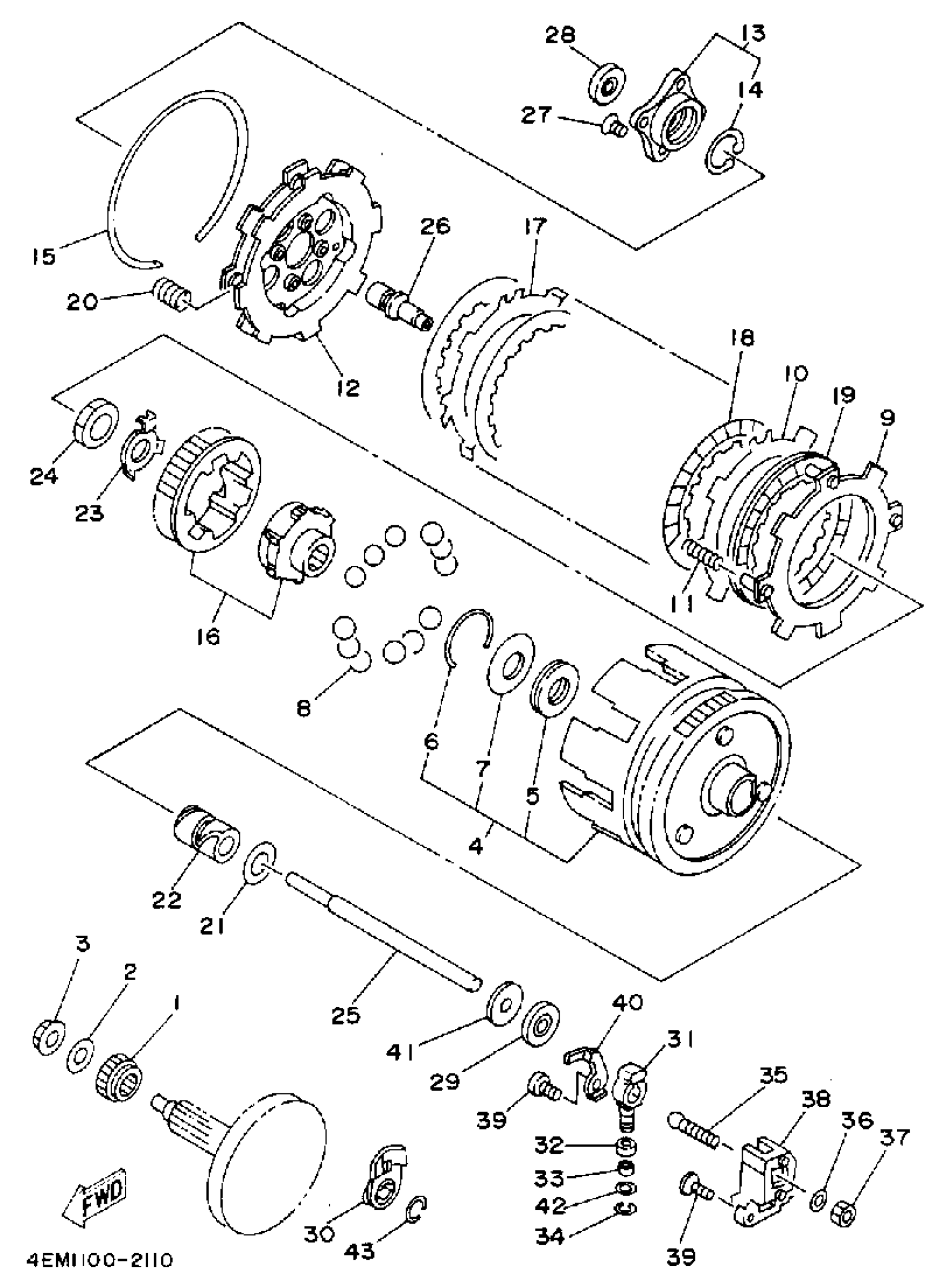

Yamaha YFM80D (BADGER) 1992 CLUTCH Diagram
#
2
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
4
PRIMARY DRIVEN GEAR COMP.
22K-16150-02-00
Unavailable
5
. BEARING, FLAT #41
93341-22302-00
Unavailable
6
. CIRCLIP
93450-42112-00
Unavailable
7
. WASHER, THRUST (19T)
22F-16153-10-00
Unavailable
7
. WASHER, THRUST (21T)
22F-16153-20-00
Unavailable
7
. WASHER, THRUST (23T)
22F-16153-30-00
Unavailable
7
WASHER, THRUST (1.7T)
22F-16153-40-00
Unavailable
9
PLATE, THRUST WEIGHT
22K-16520-00-00
Unavailable
10
PLATE, CLUTCH 1
517-16524-10-00
Unavailable
10
PLATE, CLUTCH 3
517-16524-30-00
Unavailable
11
SPRING, COMPRESSION(55X)
90501-105A5-00
Unavailable
12
PRESSURE PLATE ASSY
22F-16550-00-00
Unavailable
13
PUSH PLATE ASSY
22K-16590-00-00
Unavailable
14
CIRCLIP(2FL)
93420-26077-00
Unavailable
15
CIRCLIP (22F)
93451-08094-00
Unavailable
16
CLUTCH BOSS ASSY
22K-16570-00-00
Unavailable
17
PLATE, CLUTCH 1
22F-16524-01-00
Unavailable
18
PLATE, FRICTION
3E5-16521-00-00
Unavailable
19
PLATE, FRICTION
22F-16521-00-00
Unavailable
20
SPRING, COMPRESSION(55X)
90501-135A4-00
Unavailable
21
PLATE, THRUST
122-16164-00-00
Unavailable
22
SPACER (517)
90560-17146-00
Unavailable
23
WASHER, LOCK(55X)
90215-14249-00
Unavailable
24
NUT (5H0)
90170-14284-00
Unavailable
25
ROD, PUSH
22F-16357-01-00
Unavailable
26
ROD, PUSH 1
22K-16356-00-00
Unavailable
27
SCREW, FLAT
98707-06012-00
Unavailable
28
OIL SEAL
93104-10076-00
Unavailable
29
OIL SEAL (22F)
93102-07292-00
Unavailable
30
LEVER, PUSH 2
22F-16362-01-00
Unavailable
31
LEVER, PUSH
22F-16342-01-00
Unavailable
32
COLLAR
90387-062G9-00
Unavailable
33
COLLAR
90387-062G8-00
Unavailable
34
CIRCLIP (EU0)
99080-04600-00
Unavailable
35
AXLE, PUSH LEVER
22F-16382-00-00
Unavailable
36
WASHER, PLAIN (646)
92990-06600-00
Unavailable
37
NUT, HEXAGON
95380-06600-00
Unavailable
38
GUIDE, PUSH ROD
22F-16399-00-00
Unavailable
39
SCREW, PAN HEAD
98580-06016-00
Unavailable
40
SPRING, CLUTCH BOSS
22F-16383-00-00
Unavailable
41
BUSH, SOLID (22F)
90380-07118-00
Unavailable
42
WASHER
22F-16163-00-00
Unavailable
43
CIRCLIP
93440-11128-00
Unavailable
