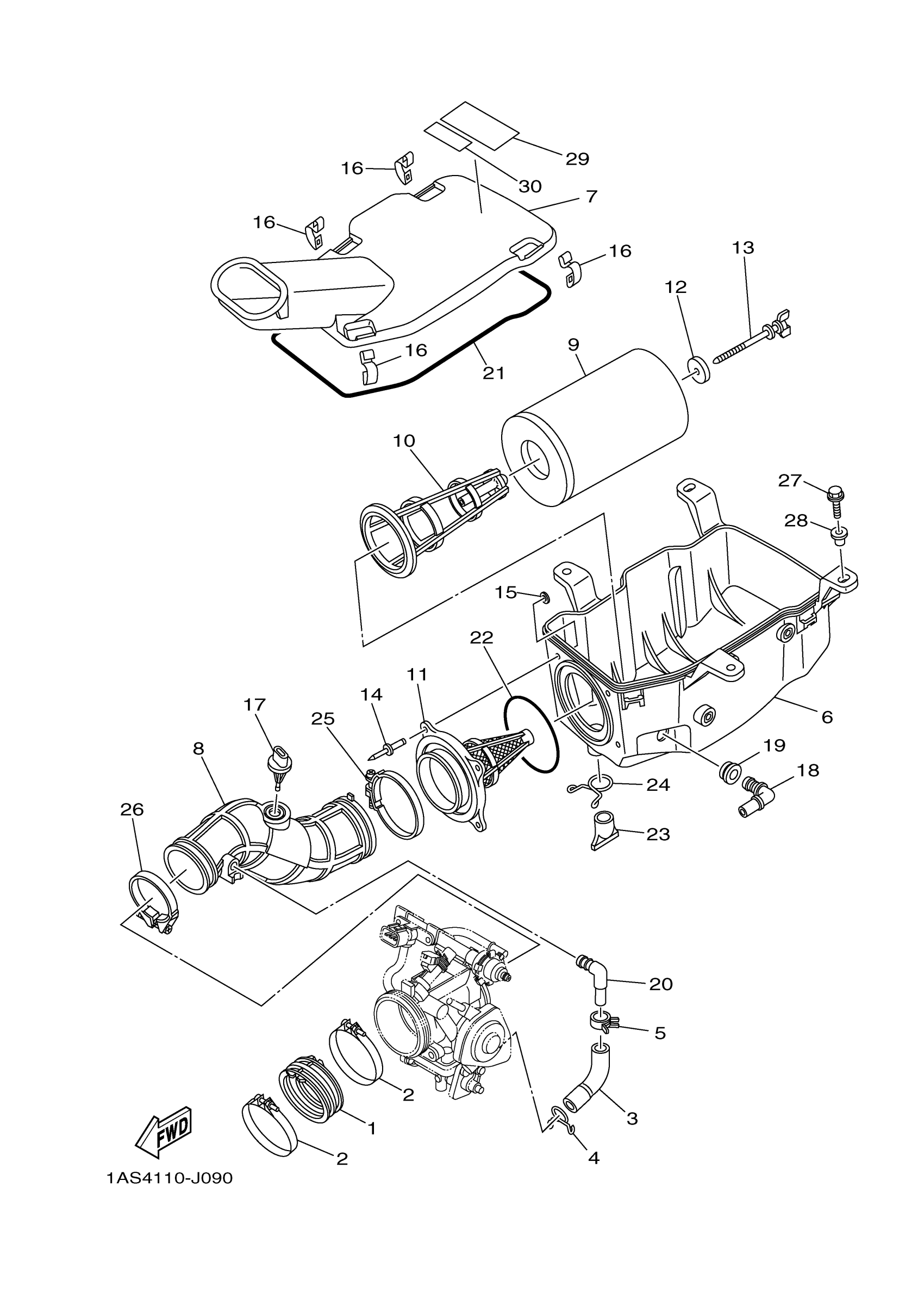

Yamaha YFM7RSEZ (RAPTOR 700 SE) 1AS4 2010 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5VK-13586-00-00

$31.99

2

HOSE CLAMP ASSY

90450-72003-00

$18.99

3

HOSE 1

1S3-13545-00-00

Unavailable

4

CLIP

90467-160A4-00

$8.49

5

CLIP (806-24358-00)

90467-15012-00

$8.49

6

CASE, AIR CLEANER 1

1S3-14411-00-00

$53.99

7

CAP, CLEANER CASE 1

1S3-14412-01-00

$29.99

8

JOINT, AIR CLEANER 1

1S3-14453-00-00

Unavailable

9

ELEMENT, AIR CLEAN

1S3-14451-01-00

$43.99

10

GUIDE

1S3-14458-00-00

Unavailable

11

HOLDER, GUIDE

1S3-14459-01-00

$49.99

12

WASHER (4H7)

90209-06096-00

$9.49

13

BOLT, WING

90122-06010-00

$10.49

14

RIVET, BLIND(80N)

90267-48138-00

$3.76

15

WASHER, PLATE

90201-04028-00

$8.49

16

HOOK

5TH-14436-00-00

Unavailable

17

SENSOR, AIR TEMPERATURE

5VU-85886-00-00

Unavailable

18

PIPE

5KM-14419-00-00

Unavailable

19

GROMMET

31A-14435-01-00

Unavailable

20

PIPE

31A-14419-00-00

Unavailable

21

SEAL

1VJ-14462-00-00

Unavailable

22

SEAL

1S3-14457-00-00

Unavailable

23

SEAL

59V-14457-00-00

Unavailable

24

CLIP

90467-220A1-00

Unavailable

25

HOSE CLAMP ASSY

90450-75002-00

Unavailable

26

HOSE CLAMP ASSY

90450-59005-00

Unavailable

27

BOLT, FLANGE

90105-06084-00

Unavailable

28

COLLAR

90387-08073-00

Unavailable

29

PLATE, EPA OFFROAD ATV 1

1AS-2177C-00-00

Unavailable

30

PLATE, EPA OFFROAD ATV 2

8GL-2817P-00-00

Unavailable
